Wouxun KG-699E/4m

Wouxun KG-699E/4m
RRP: £ 89.95
£89.95 (Inc. VAT 20.00%)
Ex-VAT Price : £74.96
Add to cart
Product Information
  • Overview
  • Description
  • More Info

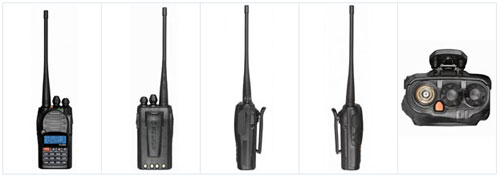

4m version of the popular mono-band Wouxun handheld.
  • 66-88MHz "4m FM Band"
  • Dual receive in VHF bands
  • Separate CTCSS/DCS tones on each sub frequency if needed
  • Dual display and standby modes
  • 128 memory channels
  • 8 groups scrambler
  • Channel name edit available
  • Output power VHF 5W/1W
  • High/Low power can changeable by top key
  • VOX (Level adjustable)
  • DTMF encoding and DTMF decoding
  • 105 groups D.C.S/50 groups CTCSS
  • DCS/CTCSS of RX and TX can be set respectively
  • Reverse frequency function
  • Busy channel lockout
  • Distant alarm
  • ANI (Caller ID)
  • Multi scan mode (TO/CO/SE)
  • Inspection, monitor, stun, kill and emergency alarm
  • All calls, group calls and selective calls
  • C alling ring and ring overtime auto answer
  • Multi silent mode (QT/QTADT/QTXDT)
  • Channel steps (5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow bandwidth selection (25KHz/12.5KHz)
    - Accessories


  • 66-88MHz "4m FM Band"
  • Dual receive in VHF bands
  • Separate CTCSS/DCS tones on each sub frequency if needed
  • Dual display and standby modes
  • 128 memory channels
  • 8 groups scrambler
  • Channel name edit available
  • Output power VHF 5W/1W
  • High/Low power can changeable by top key
  • VOX (Level adjustable)
  • DTMF encoding and DTMF decoding
  • 105 groups D.C.S/50 groups CTCSS
  • DCS/CTCSS of RX and TX can be set respectively
  • Reverse frequency function
  • Busy channel lockout
  • Distant alarm
  • ANI (Caller ID)
  • Multi scan mode (TO/CO/SE)
  • Inspection, monitor, stun, kill and emergency alarm
  • All calls, group calls and selective calls
  • Calling ring and ring overtime auto answer
  • Multi silent mode (QT/QTADT/QTXDT)
  • Channel steps (5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow bandwidth selection (25KHz/12.5KHz)

  • 5/2 tone and 1750Hz burst tone
  • Priority scan
  • Remark: If the radio with optional features, it will available 200 memory channels and 1 group scrambler.

  • Digital FM radio with frequency display
  • Three color LCD backlight display
  • Frequency/Channel/Frequency+Channel display mode
  • Voice guide (Chinese / English)
  • Side key programmable
  • Menu/Channel reset
  • Keyboard lock (Auto/Manual)
  • Wireclone function
  • Programmable by computer
  • Input frequency by using keypad
  • PC software disable frequency input
  • Come with 1300mAh/1700mah Li-ion battery and intelligent charger

  • Main Features
    • 140-148MHz “2m FM” and 66-88MHz “4m FM Band” available
    • Dual receive in VHF bands
    • Separate CTCSS/DCS tones on each sub frequency if needed
    • Dual display and standby modes
    • 128 memory channels
    • 8 groups scrambler
    • Channel name edit available
    • Output power VHF 5W/1W
    • High/Low power can changeable by top key
    • VOX (Level adjustable)
    • DTMF encoding and DTMF decoding
    • 105 groups D.C.S/50 groups CTCSS
    • DCS/CTCSS of RX and TX can be set respectively
    • Reverse frequency function
    • Busy channel lockout
    • Distant alarm
    • ANI (Caller ID)
    • Multi scan mode (TO/CO/SE)
    • Inspection, monitor, stun, kill and emergency alarm
    • All calls, group calls and selective calls
    • Calling ring and ring overtime auto answer
    • Multi silent mode (QT/QTADT/QTXDT)
    • Channel steps (5K/6.25K/10K/12.5K/25K)
    • Wide/Narrow bandwidth selection (25KHz/12.5KHz)


    Optional Features:
    • 5/2 tone and 1750Hz burst tone
    • Priority scan
    • Remark: If the radio with above features, it will available 200 memory channels and 1 group scrambler.

    Super Features:
    • Digital FM radio with frequency display
    • Three color LCD backlight display
    • Frequency/Channel/Frequency+Channel display mode
    • Voice guide (Chinese / English)
    • Side key programmable
    • Menu/Channel reset
    • Keyboard lock (Auto/Manual)
    • Wireclone function
    • Programmable by computer
    • Input frequency by using keypad
    • PC software disable frequency input
    • Come with 1300mAh/1700mah Li-ion battery and intelligent charger

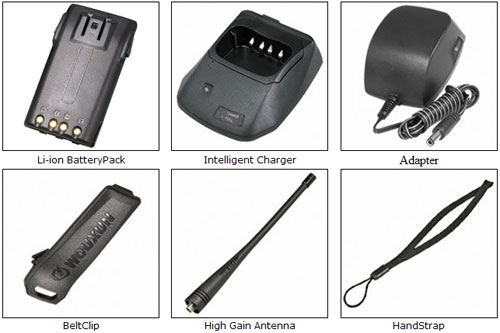

    Supplied Accessories:

    Technical Specification



    Frequency Range2m Version: VHF: /136-174MHz
    4m Version: VHF: 66-88MHz



    Channel Capacity128(200)
    Channel Spacing25/12.5KHz
    Maximum Deviation±5KHz to 25KHz     ±2.5KHz to 12.5KHz
    Frequency Stability±2.0ppm
    Operating Voltage7.4V
    Operating Temperature -30 ¡æ ¡« +60 ¡æ
    Battery1300/1700mAh(Li-ion)
    Standby Current50mA
    Antenna Impedance50Ω
    Dimension(without antenna £¦ battery(L×W×H)105×62×39(mm)
    Weight(with antenna £¦ battery)260g
    Transmitter



    RF Power OutputVHF:5W/1W
    Modulation16K§æF3E/11K§æF3E
    Spurious and Harmonious-36dBm £¼ 1GHz   -30dBm £¾ 1GHz
    FM Noise40dB
    Adjacent Channel Power70dB/60dB
    Audio Distortion≤ 5 ©‡
    Receiver



    Sensitivity(12dB SINAD)0.25μV
    Selectivity60dB
    Intermodulation60dB
    Spurious Response Rejection65dB/70dB
    Audio Power Output500mW
    Audio Distortion≤ 3 ©‡ (0.5W)


    Compare list of different configuration

    KG-699E Main features

    The popular

    The upgrade

    The advanced

     Memory channels

    128

    128

    200

     Scrambler available

    Optional

    8 groups

     DTMF encoding and DTMF edcoding

     VHF Dual frequencies or UHF Dual frequencies

     Dual display and standby modes

     Output power VHF 5W/1W

     105 groups DCS/50 groups CTCSS

     Wide/Narrow bandwidth selection (25KHz/12.5KHz)

     ANI(Caller ID)

     PTT ID

     TOT(Time-out timer)

     VOX (Level adjustable)

     Busy channel lockout(BCL)

     Reverse frequency function

     Distant alarm

     All calls, group calls and selective calls

     Channel steps(5K/6.25K/10K/12.5K/25K)

     Channel name edit available

     Multi scan mode(TO/CO/SE)

     Clone radio-to-radio

     FM Radio

     Inspection,monitor,stun,kill and emergency alarm



     DCS/CTCSS of RX and TX can be set respectively



     5 tones and 2 tones





     1750Hz burst tone





     Priority scan
