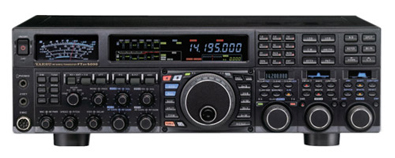

Yaesu FTdx5000

The Yaesu FT-dx5000 is an awesome rig to look at, but it is even more impressive "under the hood". Yaesu engineers have achieved 112 dB dynamic range and an IP3 [3rd Order Intercept Point] of +40 dBm (CW, 500 Hz BW).

Newly designed, extra sharp roofing filters for VFOA/Main receiver are selectable between 300 Hz (optional), 600 Hz, 3 kHz, 6 kHz and 15 kHz. Yaesu incorporates two of their famous custom designed 32 bit floating point DSP chips based on the TI TMS320C6727B running at 300 MHz one for VFO A and one for VFO B.

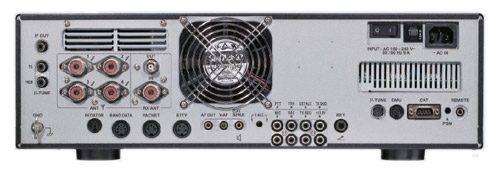

Enjoy state of the art on the transmit side with a pair of reliable VRF150 FETS in a push-pull configuration yielding 200 watts (75 watts class A operation). Three electro-luminescent subdisplays indicate sub frequency, graphical wave and menu functions. The rear panel features a 9 MHz IF out from VFO Main receiver. Other enhancements include: large multi-function meter and variable CW audio peak filter

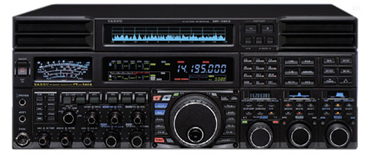

Shown above with SM5000 Station Monitor	The Yaesu SM-5000 station monitor adds sophistication and new capabilities to your FT-dx5000

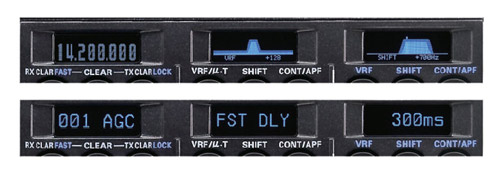

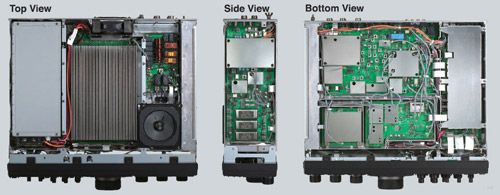

Interior view	The FTDX5000 series feature three EL (eltro luminesense) subdisplay to indicate sub frequency, graphical wave and menu function

The FTDX5000 uses newly designed, extra sharp roofing filters for the VFOA/Main receiver and they are selectable between 300 Hz (optional on some versions), 600 Hz, 3 kHz, 6 kHz and 15 kHz.

SM-5000 Station Monitor – Optional; 300 Hz Roofing Filter – Optional; ±0.5ppm TXCO – Included. SM-5000 Station Monitor – Included; 300 Hz Roofing Filter – Optional; ±0.5ppm TXCO – Included. SM-5000 Station Monitor – Included; 300 Hz Roofing Filter – Included; ±0.05ppm OCXO – Included. The FTDX 5000 robust and high-power Final Amplifier Stage incorporates two super reliable FET, VRF-150 (Drain-Source Voltage 170 V/Gate Source Voltage ±40 V, Total Device Dissipation 300 W) in a push-pull configuration, offers solid 200 W output (75 W Class A operation). All three FTDX 5000 Series radios have their own built-in power supply All FTDX 5000 Transceivers include Two (2) Totally Independent Receivers to give you Performance and Flexibility previously only provided by much more expensive radios.

• SSB (2.4kHz BW)
• 10 kHz SEP.:106 dB, IP3 +40 dBm
• CW (500Hz BW)
• 10 kHz SEP:112 dB, IP3 +40 dBm
• 2 kHz SEP. :105 dB, IP3 +36 dBm
• 1 kHz SEP. : 99 dB, IP3 +25 dBm
• *VFO-A/Main Receiver @ 14 MHz, IPO1
• Super Sharp “Roofing” Filters
• Super sharp “Roofing” filters for VFO-A/Main Receiver.
• Filters are Selectable between *300 Hz, 600 Hz, 3 kHz (6-pole crystal filter), 6 kHz, 15 kHz (4-pole MCF)
• *300 Hz filter is optional for FTDX 5000 and FTDX 5000D. It is included in the FTDX 5000MP

The legendary high performance Yaesu Custom-designed 32-bit Floating Point DSP based on the TI TMS320C6727B (@300 MHz), one EACH for VFO-A and VFO-B. Variable CW Audio Peak Filter, and High/Low-Cut filtering created through the very latest in DSP technology.

• CW Width: 50/100/150/200/250/300/350/400/450/500 Hz
• CW Pitch Frequency: 300~1050 Hz (10 Hz Steps)

Enjoy the same Huge Size Metering System as the FT DX 9000 series with True Analog Precision and Instant Reaction Time. Three Electro Luminescence clear Displays included for easier operation and control of the Sub-Frequency, Graphical Wave and Menu function. IF Output (9 MHz) from VFO-A/Main Receiver The FTDX 5000 provides loads of practical Level Indication that clearly show settings of Mic-Gain / RF Power / CW-Pitch / Keyer Speed / Processor Level / VOX Delay Time / Break-In Delay Time. -They can be controlled ON/OFF independently! If you need a good Bandscope to enhance your operations, you are going to love our all-new SM-5000 matching station monitor. Included with the Bandscope is a complete, enhanced stereo speaker system with superb audio quality - the speakers are point at you instead of up into the air above the radio!

• Yaesu Data Management Unit DMU-2000, and utilize its powerful Audio Scope, Oscilloscope, Spectrum Scope, logging, and Rotator Control capabilities using your own personally selected and purchased computer display monitor.
• Yaesu External Fully-Automatic Micro-Tuning Units. Three modes available: A (160 m Band), B (80 & 40 m Bands), C (30 & 20 m Bands)

Specifications are subject to change without notice
