Wouxun KG-639E

Wouxun KG-639E
£99.98 (Inc. VAT 20.00%)
Ex-VAT Price : £83.32
Add to cart
Product Information
  • Overview
  • Description
  • More Info

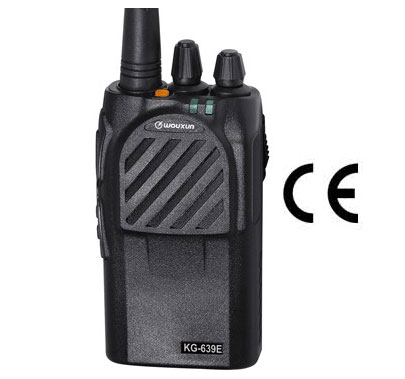

Small pocket PMR Business radio with simple 16 channel select & Volume On/Off rotary control. Sharp crisp clear audio to penetrate through noisy environments. Supplied with Li-Ion battery and Base charger.

  • PMR446 standard
  • 16 memory channels
  • Output power VHF 5W/0.5WUHF 4W/0.5W
  • High/Low power can changeable by top key
  • VOX(Level adjustable)
  • DTMF encoding and DTMF decoding
  • 105 groups D.C.S/50 groups CTCSS
  • DCS/CTCSS of RX and TX can be set respectively
  • Busy channel lockout
  • Distant alarm
  • Multi scan mode (TO/CO/SE)
  • Inspection, monitor, stun, kill and emergency alarm
  • Callingringandringovertimeautoanswer
  • Multi silent mode (QT/QTADT/QTXDT)
  • Channel steps (5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow bandwidth selection(25KHz/12.5KHz)
    - Accessories
    - Supplied Accessories

    As per the norm with PMR Business Radio they are NOT programmed out of the box but we do offer a programming service.

    We offer a programming service of £10 per radio. For 10 units or more additional charges may apply for frequency programming. Please note frequencies, split, CTCSS and email us with your requirements


Small pocket PMR Business radio with simple 16 channel select & Volume On/Off rotary control. Sharp crisp clear audio to penetrate through noisy environments. Supplied with Li-Ion battery and Base charger.

Main Features:
  • PMR446 standard
  • 16 memory channels
  • Output power VHF 5W/0.5W UHF 4W/0.5W
  • High/Low power can changeable by top key
  • VOX (Level adjustable)
  • DTMF encoding and DTMF decoding
  • 105 groups D.C.S/50 groups CTCSS
  • DCS/CTCSS of RX and TX can be set respectively
  • Busy channel lockout
  • Distant alarm
  • Multi scan mode (TO/CO/SE)
  • Inspection, monitor, stun, kill and emergency alarm
  • Calling ring and ring overtime auto answer
  • Multi silent mode (QT/QTADT/QTXDT)
  • Channel steps (5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow bandwidth selection (25KHz/12.5KHz
Optional Features:
  • 5/2 tone and 1750Hz burst tone
  • Priority scan
  • Digital FM radio
  • Remark: If the radio with above optional features, it will available 200 memory channels and 1 group scrambler.
Super Features:
  • Voice guide (Chinese / English)
  • Side key programmable
  • Wireclone function
  • Program by software
  • Come with 1300mAh/1700mah Li-ion battery and intelligent charger
Technical Specifications:
Frequency RangeVHF: 66-88/136-174/245-246MHz
UHF: 300-350/350-390/400-470/450-520MHz  PMR446: 446.0-446.1MHz
Channel Capacity16
Channel Spacing25/12.5KHz
Maximum Deviation±5KHz to 25KHz     ±2.5KHz to 12.5KHz
Frequency Stability±2.0ppm
Operating Voltage7.4V
Operating Temperature -30 ¡æ ¡« +60 ¡æ
Battery1300/1700mAh(Li-ion)
Standby Current50mA
Antenna Impedance50Ω
Dimension(without antenna £¦ battery(L×W×H)103×62×39(mm)
Weight(with antenna £¦ battery)242g
Transmitter
RF Power OutputVHF:5W/1W    UHF:4W/1W    PMR446:0.5W-4W
Modulation16K§æF3E/11K§æF3E
Spurious and Harmonious-36dBm £¼ 1GHz   -30dBm £¾ 1GHz
FM Noise40dB
Adjacent Channel Power70dB/60dB
Audio Distortion≤ 5 ©‡
Receiver
Sensitivity(12dB SINAD)0.25μV
Selectivity60dB
Intermodulation60dB
Spurious Response Rejection65dB/70dB
Audio Power Output500mW
Audio Distortion≤ 3 ©‡ (0.5W)

Compare list of different configuration
KG-699E Main featuresThe popularThe upgradeThe advanced

 Memory channels

16 128200

 Scrambler available

Optional8 groups

 DTMF encoding and DTMF edcoding

 PMR446 standard

 105 groups DCS/50 groups CTCSS

 Wide/Narrow bandwidth selection (25KHz/12.5KHz)

 ANI(Caller ID)

 PTT ID

 TOT(Time-out timer)

 VOX (Level adjustable)

 Busy channel lockout(BCL)

 Reverse frequency function

 Distant alarm

 All calls, group calls and selective calls

 Channel steps(5K/6.25K/10K/12.5K/25K)

 Channel name edit available

 Multi scan mode(TO/CO/SE)

 Clone radio-to-radio

 FM Radio

 Inspection,monitor,stun,kill and emergency alarm



 DCS/CTCSS of RX and TX can be set respectively



 5 tones and 2 tones



 1750Hz burst tone



 Priority scan
