Reference: The history of KENWOOD flagship transceivers

1973: TS-900 (historic all-band SSB transceiver, featuring cutting-edge technology)

1982: TS-930 (HF transceiver with the world’s first automatic antenna tuner for Amateur Radio use)

1985: TS-940 (high dynamic range HF transceiver which was more than a match for Cycle 22 pileups)

1989: TS-950 (world’s first HF transceiver with DSP, leading the way into the new digital era)

Main Features

●Receiver

1. Down conversion employed for all Amateur Radio bands (main receiver)

The main receiver of the TS-990 employs down conversion for the first IF (8.248MHz) for all Amateur bands. This results in excellent dynamic range when adjacent unwanted signals are present – significantly better than what was possible with the up-conversion approach previously used. Even when the interfering signal is on an adjacent frequency, the TS-990 is able to maintain almost flat dynamic range characteristics, capturing just the target signal.

2. Newly developed mixer contributes to IP3 +40dBm performance (main receiver)

The first mixer circuit, at the heart of the main receiver, is equipped with a new double balanced grounded switch type mixer. In order to prevent distortion when there is a large input signal, the signal route up to the first mixer includes sophisticated circuitry with carefully selected components – such as large-core toroidal coils and relays for signal switching between bands – resulting in a third-order intercept point of +40dBm.

3. New narrow-band high-IP roofing filters help to remove adjacent interference (main receiver)

As well as employing down conversion for reception on all Amateur bands, the TS-990 is equipped with 5 high-IP roofing filters as standard. In addition to 500Hz and 270Hz filters, which provide the sort of narrow passband that is so important for CW (Morse code) operations, there is a 2.7kHz filter for SSB, as well as 6kHz and 15kHz filters suited for AM/FM use. These filters are selected automatically depending on the DSP’s final passband setting. Manual switching is also possible.

4. New VCO division-type first local oscillator divides high frequencies to ensure high C/N

The TS-990’s local oscillator features independent circuits optimized for different signals: VCO division type / DDS direct for the main receiver; DDS direct for the sub receiver; and conventional PLL for the transmitter. The newly developed VCO division-type approach adopted for the first local oscillator of the main receiver involves having the VCO oscillate at a frequency higher than the target frequency, and by dividing this frequency it is possible to generate a local oscillator signal with excellent C/N characteristics, almost as good as produced by a DDS direct circuit, and with low spurious emission equivalent to that of PLL. This reduces noise in the local oscillator and, thanks to the high C/N ratio, the target signal is not allowed to become buried in noise. The pure incoming signal can thus be shifted to a first IF.

5. ±0.1ppm TCXO ensures both high stability and reduced power consumption

As a standard signal source, the TS-990 is equipped with a TCXO (temperature-compensated crystal oscillator) that has a frequency stability of ±0.1ppm. In addition to delivering high stability, it does not require a warm-up period like an OCXO (oven-controlled crystal oscillator), so it can start up rapidly as soon as power is applied. It also complies with the European Union’s Lot 6 standard for energy conservation, consuming less than 0.5W in standby mode. Input/output of a standard 10MHz signal is enabled.

6. Sub receiver down conversion^*2 on main Amateur bands below 21MHz range

For its sub receiver, the TS-990 uses a more advanced version of the receiver found in the TS-590, which since it was launched has been acclaimed for its top-of-class RX performance. Of especial note is the fact that it uses front end circuitry that enables down conversion for the 5 major Amateur bands, so that despite being a “sub receiver” it has what it takes for full-fledged RX applications.

*2 When IF band is below 2.7kHz for 1.8/3.5/7/14/21MHz bands (SSB/CW/FSK/PSK).

7. Dedicated triple DSPs for main & sub receivers plus band scope

8. Advanced AGC (Auto Gain Control), digital and analog

The audio quality of SSB and CW reception is not determined solely by audio frequency response and filter retardance: AGC performance also plays a very important role. KENWOOD fans report that they do not get tired even after listening to their radio for long periods, and this can be put down to the renowned AGC performance of KENWOOD radios. For the TS-990, engineers have further improved the DSP’s AGC algorithms and the analog AGC, resulting in an even better “KENWOOD tone”.

9. Extensive interference/noise removal features

The TS-990 Series features adjustable-passband IF filters, simple IF filter switching (A/B/C), IF notch, band elimination, digital and analog noise blankers (NB1/NB2) to reduce pulse noise, and noise reduction (NR1/NR2).

●Transmitter

1. Robust design delivers stable operation at 200W

2. Internal automatic antenna tuner enables rapid tuning

Covering all Amateur bands from 1.8MHz to 50MHz, the built-in automatic antenna tuner is of the preset type, capable of tuning even during reception. It employs the relay approach, acclaimed for rapid operation, so the operator can quickly QSY (change operating frequency) with an instant band change. The tuner components – relays, capacitors, coils, etc. – are all rated sufficiently high to endure the 200W output.

3. Cooling system capable of providing ample airflow to each unit

To ensure a stable output of 200W, it is essential to have good cooling. The TS-990 employs a fin-type construction to enhance the heat dissipation efficiency of the large aluminum heat sink. Moreover, independent variable-speed fans are employed for the switching power supply, the final section, and the antenna tuner, ensuring ample airflow to cool each unit. Moreover, the switching power supply and final section are both served by twin cooling fans. Heat sensors are used to control fan speed, thus contributing to quieter operation.

●World's first*1 dual display

1. Dual TFT display offers excellent visibility

Located on the front panel is the world’s first1 dual TFT display, enhancing both visibility and operating ease.

2. Main display monitors target signal vicinity

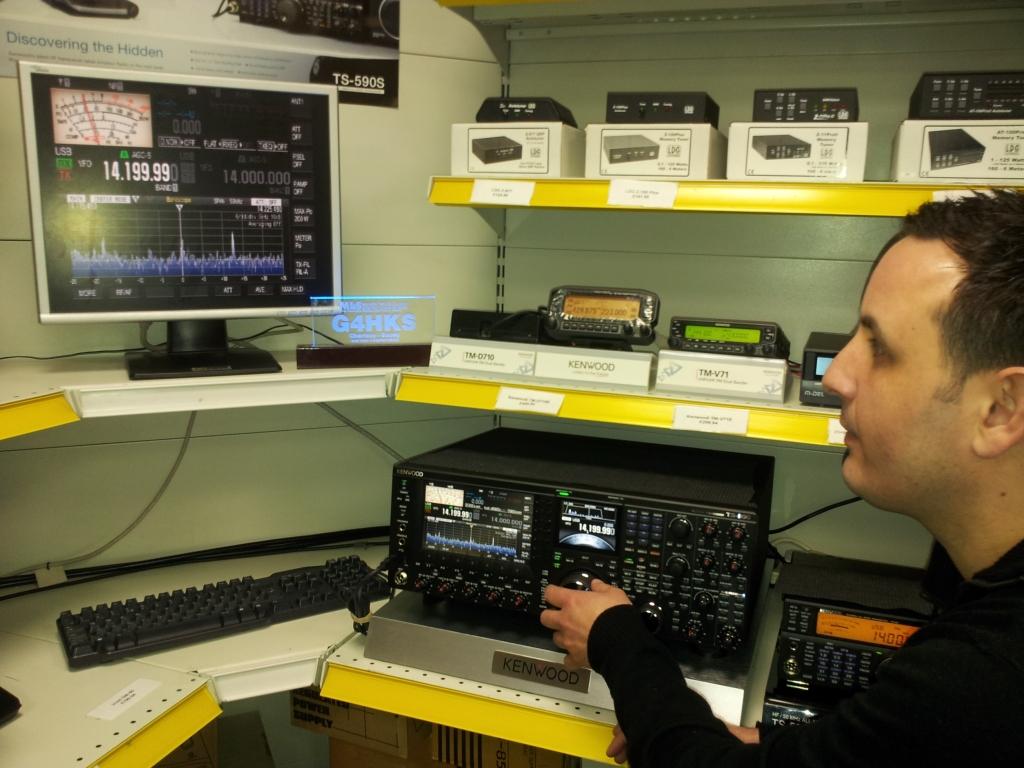

The 7-inch TFT main display provides basic information on frequencies and modes as well as meters and the on/off status of key functions. It can also display internal parameter configurations and memory lists, and it features a band scope for monitoring band conditions; FFT processing by the DSP ensures a rapid sweep. The TS-990 operator can choose from a variety of display modes, including a waterfall display.

3. Sub display monitors actual target signal

The 3.5-inch TFT sub display is located just above the main dial, so the operator hardly needs to shift attention to check the frequency. But there is more: by displaying the demodulated signal audio spectrum, it enables monitoring of the actual target signal.

●Superb operating ease

1. New frequency function for intuitive operation

The frequency function that previously switched between VFO A and VFO B is now used to switch between main and sub bands. The sub receiver RX key located above the main dial is used to switch the sub receiver on/off, while the TX key enables switching between simplex and split operations. Also, the operator can tell at a glance what the current operating mode is thanks to the LEDs.

2. New split function for quick configuration

In addition to the M>S and M/S configuration found on the previous series, a 2-step split-frequency configuration has been added for quick setup.

3. Memory accessible even during split/sub receiver operation

With a maximum of 120 memory channels available, as well as storing frequencies, it is possible to arrange presets for beacons and broadcast stations. And thanks to dual-channel memory, the operator can easily access memory while receiving two frequencies simultaneously.

4. Remote PC operation of TS-990 Series

Once installed on a PC, the ARCP-990 radio control program provides remote access to almost all of the TS-990 functions. It is also possible to configure the various functions and manage memory channels. The software is provided free and can be downloaded from the JVCKENWOOD website.

Note: ARCP-990 is compatible with Windows XP (32-bit, SP3 or later), Windows Vista (32-bit, SP2 or later), and
Windows 7 (32-bit/64-bit) operating systems.

5. Data modes facilitate switching between external terminals

In addition to the mic terminal, the rear panel offers a variety of I/O options, including analog audio I/O, USB audio, and digital optical interfaces. When these are combined with data modes 1 to 3 for SSB, FM and AM, it is easy to switch between external equipment for modulation/demodulation. Also featured are Data VOX and a mute switch for each modulation line.

6. Enhanced convenience with 2 USB sockets on the front panel

7. Firmware updates via USB memory stick or USB cable

All company names, brand names and product names are registered trademarks or trade names of their respective holders.

●New option: SP-990 external speaker
