Home › Receivers › RF Space Receivers ›  RF Space NetSDR
Price : £1389.95 (Inc VAT at 20.00%)
Ex-VAT Price : Price : £1158.29

Add to cart
Product Accessories

randomization for best performance. The output I/Q bandwidth is configurable via software. PC communications are handled over a 100 base-T port using 24 or 16 bit I/Q words.

The NetSDR is a complete plug and play solution. As opposed to other SDRs in the market, there is no need for additional preamplifiers, preselectors or code development.

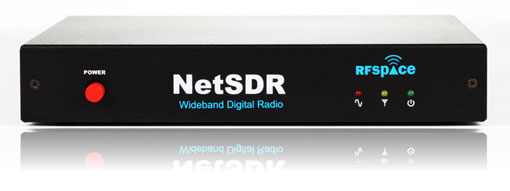

The NetSDR radio is a high performance networked SDR with 1.3 MHz bandwidth. The NetSDR uses a high performance 80 MHz, 14 bit ADC with both dithering and randomization for best performance. The output I/Q bandwidth is configurable via software. PC communications are handled over a 100 base-T port using 24 or 16 bit I/Q words.

The NetSDR is a complete plug and play solution. As opposed to other SDRs in the market, there is no need for additional preamplifiers, preselectors or code development.

The unit ships with a copy of Moetronix SpectraVue software and a copy of SDR-Radio that will have you up and running in minutes. The software includes analog and digital mode demodulation and I/Q capture of spectrum at up to a 1.54MS/s sample rate. The SDR-Radio software allows the use of the NetSDR over the internet. The full 1.3 MHz waterfall and demodulation audio can be transported via a 5 KB/s link. For those interested in writing their own applications, RFSPACE supplies a fully documented protocol for communicating with the hardware. There is no need to calculate the downconverter DSP parameters. The NetSDR just needs the center frequency, attenuator and preselector filter settings, output sample rate and mode to begin streaming data. Other solutions require complicated USB interfacing that is platform specific. The NetSDR utilizes straight TCP/IP and ethernet for all communications. This offers the highest possible performance due to the highly optimized ethernet drivers on PC, Mac and Linux systems.

The NetSDR packets are fully routable. This means that the receiver can be placed at remote locations. Multiple receivers can also be combined and it's data transported over a higher data rate ethernet pipe using simple switches and routers. In this application, each NetSDR can be set to a different IP address or port.

The NetSDR radio is a high performance networked SDR with 1.3 MHz bandwidth. The NetSDR uses a high performance 80 MHz, 14 bit ADC with both dithering and randomization for best performance. The output I/Q bandwidth is configurable via software. PC communications are handled over a 100 base-T port using 24 or 16 bit I/Q words.

The NetSDR is a complete plug and play solution. As opposed to other SDRs in the market, there is no need for additional preamplifiers, preselectors or code development.

The unit ships with a copy of Moetronix SpectraVue software and a copy of SDR-Radio that will have you up and running in minutes. The software includes analog and digital mode demodulation and I/Q capture of spectrum at up to a 1.54MS/s sample rate. The SDR-Radio software allows the use of the NetSDR over the internet. The full 1.3 MHz waterfall and demodulation audio can be transported via a 5 KB/s link. For those interested in writing their own applications, RFSPACE supplies a fully documented protocol for communicating with the hardware. There is no need to calculate the downconverter DSP parameters. The NetSDR just needs the center frequency, attenuator and preselector filter settings, output sample rate and mode to begin streaming data. Other solutions require complicated USB interfacing that is platform specific. The NetSDR utilizes straight TCP/IP and ethernet for all communications. This offers the highest possible performance due to the highly optimized ethernet drivers on PC, Mac and Linux systems.

The NetSDR packets are fully routable. This means that the receiver can be placed at remote locations. Multiple receivers can also be combined and it’s data transported over a higher data rate ethernet pipe using simple switches and routers. In this application, each NetSDR can be set to a different IP address or port.

Specifications:
  • Frequency Range: 0.01 - 34 MHz *
  • Digital Down Converter: Xilinx FPGA
  • Synchronization : Optional Frequency Only
  • PC Interface: Ethernet 100 base-T (UDP/TCP/IP)
  • Filters: 115+ dB 80% Alias Free BW
  • Decimation Rate: Variable 52-6400 (in 4 increment)
  • Output I/Q Bandwidth: 10 KHz to 1.60 MHz
  • DDC Flatness: <0.5 dB
  • Dynamic Range: 104+ dB
  • MDS Preamp Off (500Hz): -129dBm 1.8 - 30 MHz
  • MDS Preamp On (500Hz): -130dBm 1.8 - 30 MHz Analog to Digital Converter: 14 bit w/ Dither
  • Preselection: 10 Filters
  • Attenuators: 0, -10dB, -20dB, -30dB
  • Sample Rate: 80.000 000 MHz
  • Memory: 65536 x 16 bit samples
  • External Radio Control: Built-in RS-232 port
  • Dimensions: 8” x 6” x 1.5”
  • Power: 5 Volts DC @ 1.5 Amp **

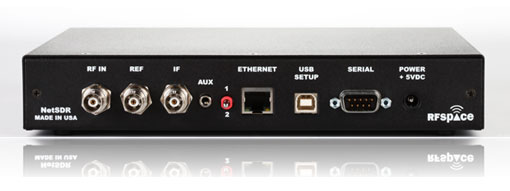

  • Connections: 3 x BNC (RF In, Ext Ref, IF Out) , RS-232, USB Setup, Stereo In, Ethernet, Power, RX Mute.
Ethernet Bandwidth Requirements:
  • 1.54 MHz Output Sample Rate = 49.2Mb/s*16bit IQ
  • 1.00 MHz Output Sample Rate = 48.0Mb/s*24bit IQ 0.50 MHz Output Sample Rate = 24.0Mb/s*24bit IQ 0.01 MHz Output Sample Rate =
  • 0.60Mb/s*24bit IQ
Expansion:
  • Internal downconverter
  • Internal 10 MHz Frequency lock
  • Internal upgrade module
