Nissei NS-2230D 30A Digital Switching Power Supply
SKU Part Number: NISSEI NS-2230D
Nissei NS-2230D 30A Digital Switching Power Supply   SPECIFICATIONS:• 28A switching power supply (30A intermittent max)•  Output voltage...
Read More
£84.95 £70.79
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Nissei NS-2230D 30A Digital Switching Power Supply



SPECIFICATIONS:
• 28A switching power supply (30A intermittent max)
•  Output voltage adjustment from 9 to 15 VDC or fixed to 13.8 VDC
• Large backlit digital instrument, with simultaneous displaying output voltage and Amperes.
• ˂100mVp-p ripple, protected for short-circuits, overloads and overvoltages.
• Power Supply: 220 Vac (± 10%).
• Small size 165 x 80 x 200 mm (LxHxP)
• Low weight of 1.54 Kg.

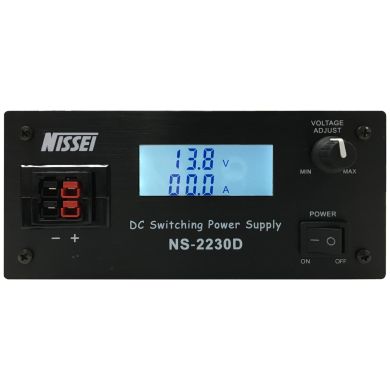

• Frontally it has: V/A instrument selector, voltage regulation,2 Anderson terminals, while on the rear: high power output terminals, forced cooling fan and AC power socket.

PACKING INCLUDES:
1 Pc of Power Supply
1 Pc of User Manual English

SPECIFICATIONS:

Model

NS-2230M



NS-2230D

Input voltage

220VAC ±10% 50Hz or 110VAC ±10﹪60Hz

Output voltage

13.8V or 9-15V variable

Output voltage regulation

<  2﹪

Protection

Overload, Overvoltage, Short-circuit

Output current

28A continue,30A Max.

Ripple/Noise

< 80mVp-p

Fuse

4A / 250V, 8A / 120V

Display indicator

Single analogue meter

LCD display

Dimensions    (W/H/L)

163 x 53 x191 mm

165 x 80 x 200 mm

Weight

1.3 Kg

1.54 Kg
