MESSI & PAOLONI ULTRAFLEX 10 - BETTER THAN WESTFLEX 103
- How to fit the connector
Any of our cables can be ordered in any length you require.

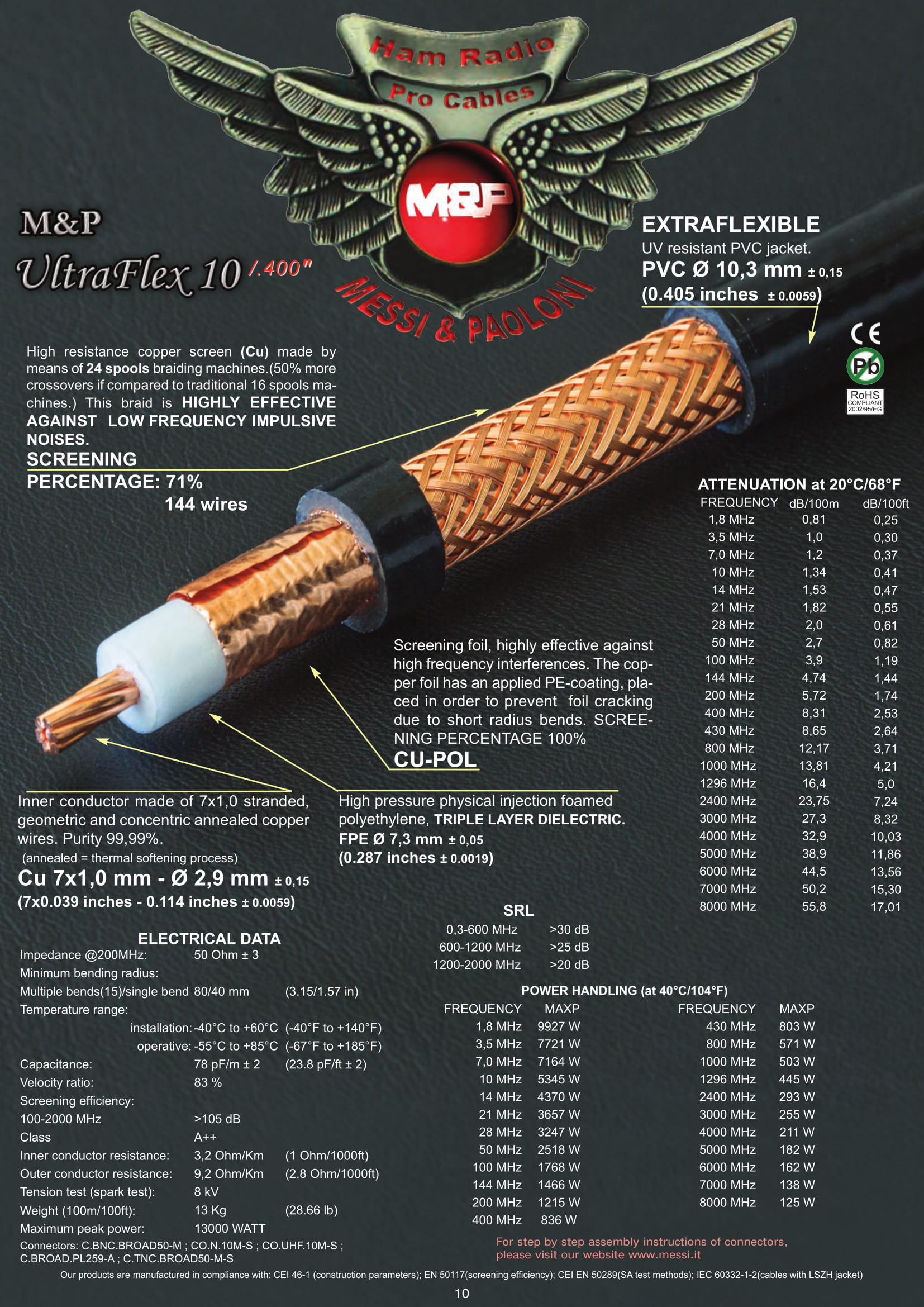

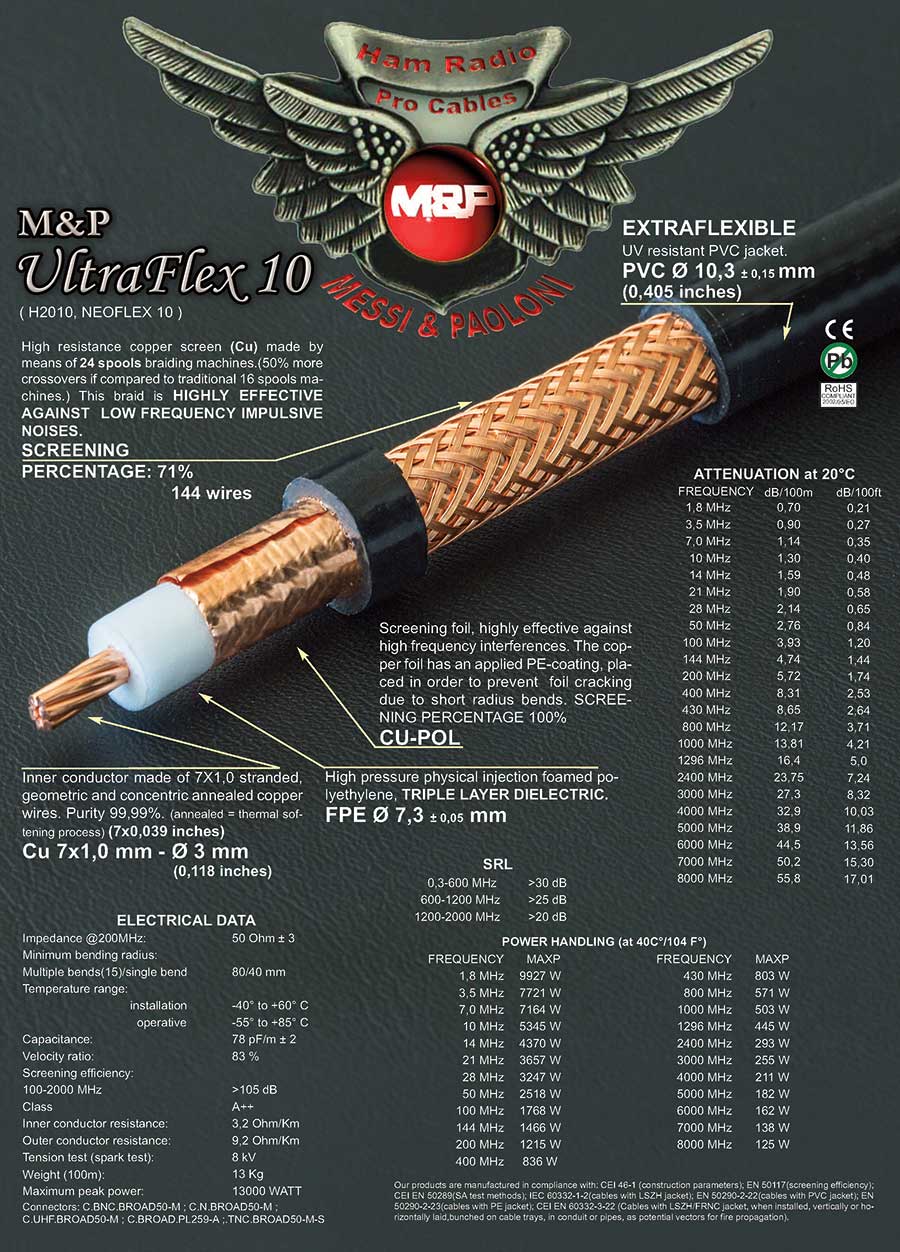

Extraflexible Ham Radio Professional coaxial cable with stranded core. The external PVC jacket is in black UV resistant PVC. This cable grants exceptional mechanical properties along with outstanding electrical features. It's attenuations are so good, that up to 10 MHz they are slightly better than our singlecore model BROAD PRO 50. Above this frequency, notwithstanding it makes use of stranded geometric and concentric core, it grants top level features (10,3 mm : same dimension of RG 213 U).
Nominal Impedance Ohms +/-3
Minimum bending radius OUT/IN
Capacitance +/-2 pF/m
Inner conductor resistance
Outer conductor resistance
Tension Test (spark test)
MAX Peak Power
-40° to +60° C
>105 dB(Class A++)
Click here to download all technical details
Here is a video showing some of the M&P Factory:
NB: The following is an example only, so connector and cable shown in images may differ, but the assembly process is correct.
