MESSI & PAOLONI ULTRAFLEX 7 - better than RG213 but near to the size of Mini 8

Today's Special Offer
10% Off when ordering 100m
MESSI & PAOLONI ULTRAFLEX 7 - better than RG213 but near to the size of Mini 8
Part Number: RG-MP-ULTRA7
£1.60 ( £1.33 EXC. VAT )
ESTIMATED SHIPPING COST:
£5.95
In Stock
Shipping to:
Qty Discount Details
1-99 - -
100+ 10.00% Buy 100 or more @ £1.44 price each
Add to cart
Call Now
Product Information
  • Overview
  • Technical Features and Videos
  • Video
Our cable is priced per metre. Enter the quantity you require and we ship this as one continuous length.

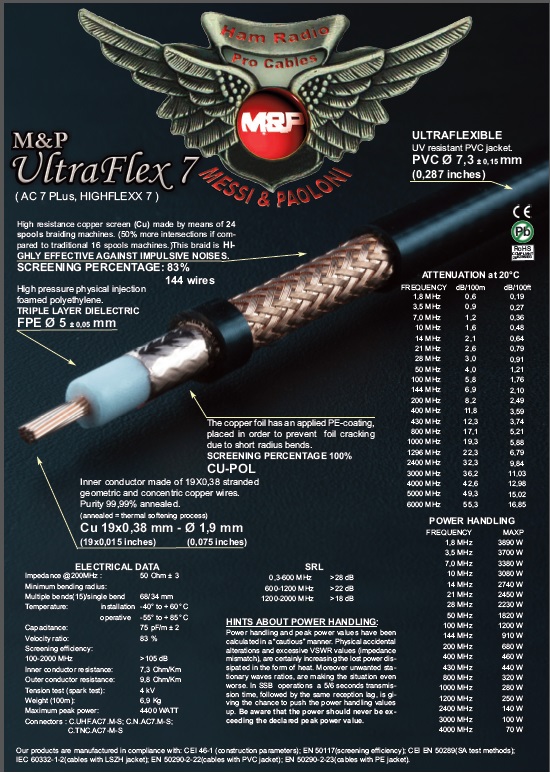

WHY CHOOSE THIS CABLE:

OFFICIAL CABLE of the 2018 WORLD RADIO TEAM CHAMPIONSHIP in GERMANY!



- Notwithstanding the small dimension (7,3mm) its performances outperform RG 213/U (10,2mm) and put into shade the competitor cables of the same diameter.



Extraordinary flexibility: perfect for tight curves and match with rotator operated antennas, obtained by means of a sophisticated full copper stranded inner conductor (19 wires instead of 7).



- Screening efficiency:  >105 dB (SA) and improved sturdiness reached by adding 24 more wires to the braid, for a total of 144 wires, (83% coverage+ 100% foil). This leads to a dramatic reduction of the background noise. Moreover the braiders used are 24 spools, instead of 16 spools, giving 50% more crossovers.



- Lightweight:  6,9 Kg/100 m instead of 13,8 Kg of our RG 213/U, for a reduced stress of the “hanging and swinging" stretch of the cable in rotor operated antennas.



ULTRAFLEX 7 is the best seller coax in Europe!


Nominal Impedance Ohms +/-3

Minimum bending radius OUT/IN

Capacitance +/-2 pF/m

Velocity Ratio

Screening Efficiency

Inner conductor resistance

Outer conductor resistance

Tension Test (spark test)

Weight (100m)

MAX Peak Power

Installation Temperature

Operative Temperature

50 Ohm

68/34 mm

75 pF/m

83%

>105 dB (Class A++)

7.3 Ohm/Km

9.8 Ohm/Km

4 kV

6.3 Kg

4400 WATT

-40° to +60° C

-55° to +85° C









NB:  The following is an example only, so connector and cable shown in images may differ, but the assembly process is correct.
