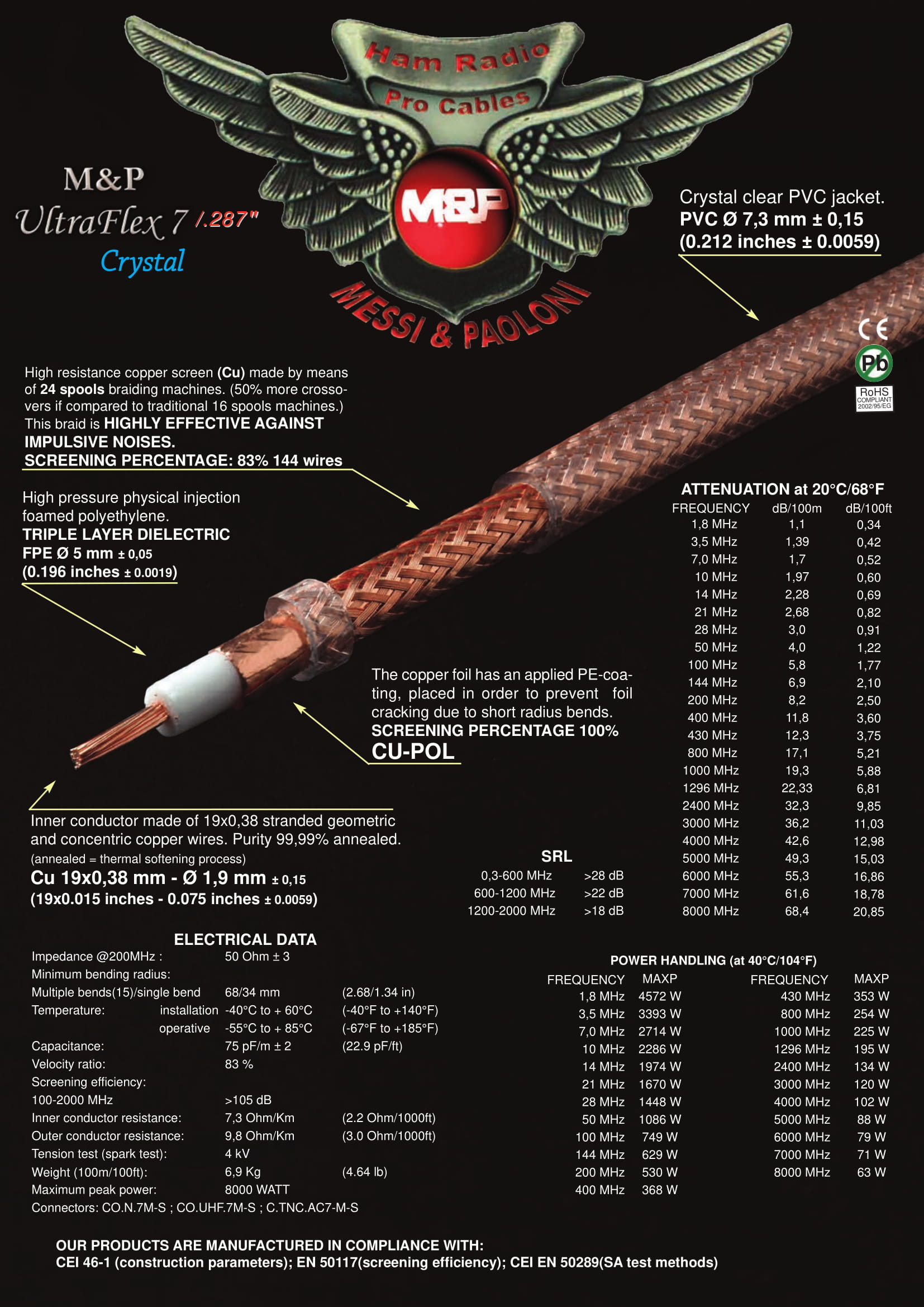

Ultraflex 7 Crystal is finally available with a transparent sheath that shows the elegance of the braid!
EXTRAORDINARY flexibility: perfect matching with rotator operated antennas, obtained by means of a sophisticated full copper stranded inner conductor (19 wires instead of 7).
New improved dielectric: outstanding attenuations up to 8 Ghz, even better than some solid core cables of the competition.
Screening efficiency: >105 dB (SA) and improved sturdiness reached by adding 24 more wires to the braid, for a total of 144 wires, (83% coverage+ 100% foil). This leads to a dramatic reduction of the background noise. Moreover the braiders used are 24 spools, instead of 16 spools, giving 50% MORE CROSSOVERS.
Lightweight: 6,9 Kg/100 m instead of 13,8 Kg of our RG 213/U, for a reduced stress of the “hanging and swinging" stretch of the cable in rotor operated antennas.
Excellent Power Handling!
The external PVC jacket is in black UV resistant PVC. Useful hint: the PVC used for the jacket of the cables, makes them extremely flexible but it's not suitable for underground laying. Every cable can be made with PE jacket, on specific request and for reasonable quantities in order to make them buriable.
This cable delivers exceptional mechanical features and electrical properties. Notwithstanding its small dimension (7,3 mm) its performances are so good to outperform RG 213/U (10,2 mm) and put into shade the competitor cables of the same diameter.
M&P-ULTRAFLEX 7 is without any doubt one of our BEST SELLERS around the world!
- Coaxial Cable, DC Cable, DC Distribution£15.80(Inc VAT at 20.00%)
