MESSI & PAOLONI BROAD-PRO 50 Double Jacket
- Home
- ACCESSORIES
- Coaxial Cable, DC Cable sold by the metre, DC Distribution MESSI & PAOLONI BROAD-PRO 50 Double Jacket
Notify Me When Available
Product Information
- Overview
- Features
- Technical Specification
Don't forget to order the connectors! The Messi & Paolini connectors are the best quality and the correct size. Other connectors will not fit.

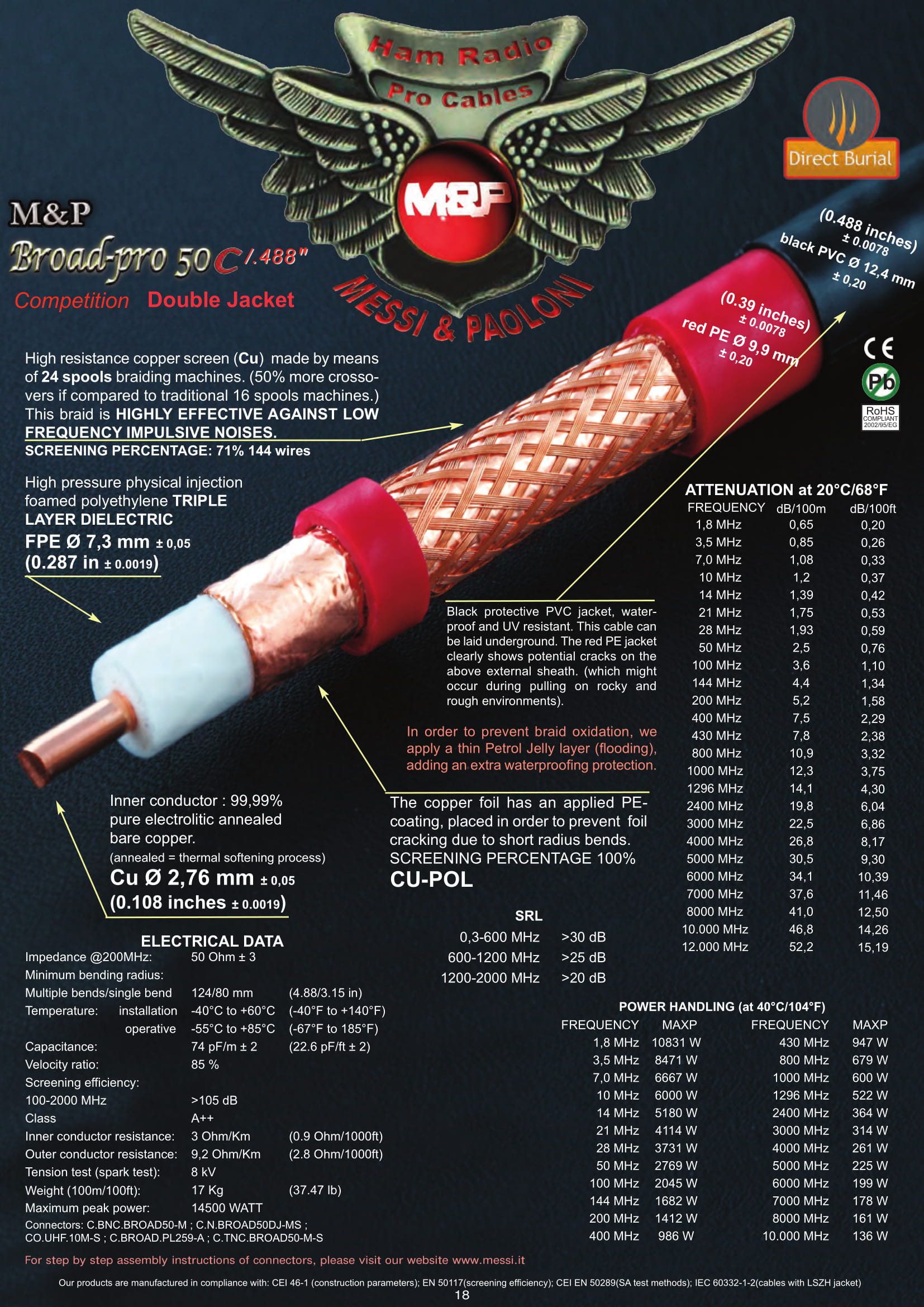

Ham Radio professional coaxial cable specifically designed for extreme applications. This cable can be laid underground. The external PVC jacket is in black UV resistant PVC. The red jacket underneath, is in red polyethylene, granting full waterproof features. The red PE jacket clearly shows potential cracks on the above external sheath. (which might occur during pulling on rocky and rough environments). In order to prevent oxidation of the braid and copper foil, we apply over them a special protective wax called "Petrol Jelly". This cable delivers exceptional technical features and is mostly appreciated by "microwaves lovers". Infact at 2400 MHz it's attenuation is from 2 to 3 dB lower then the best competition. This item belongs to the category of the 10,3 mm cables, (but the addition of one more jacket, brings the overall diameter to 12,4 mm)
Ham Radio professional coaxial cable specifically designed for extreme applications. This cable can be laid underground. The external PVC jacket is in black UV resistant PVC. The red jacket underneath, is in red polyethylene, granting full waterproof features. The red PE jacket clearly shows potential cracks on the above external sheath. (which might occur during pulling on rocky and rough environments). In order to prevent oxidation of the braid and copper foil, we apply over them a special protective wax called "Petrol Jelly". This cable delivers exceptional technical features and is mostly appreciated by "microwaves lovers". Infact at 2400 MHz it's attenuation is from 2 to 3 dB lower then the best competition. This item belongs to the category of the 10,3 mm cables, (but the addition of one more jacket, brings the overall diameter to 12,4 mm)
| Nominal Impedance Ohms +/-3 | 50 Ohm | |
| Minimum bending radius OUT/IN | 124/80 mm | |
| Installation Temperature | -40° to +60° C | |
| Operative Temperature | -55° to +85° C | |
| Capacitance +/-2 pF/m | 74 pF/m | |
| Inner conductor resistance | 3,2 Ohm/Km | |
| Outer conductor resistance | 9,2 Ohm/Km | |
| Tension Test (spark test) | 8 kV | |
| Weight (100m) | 16,8 Kg | |
| MAX Peak Power | 8500 WATT | |
| Screening Efficiency | >105 dB (Class A++) |
