MESSI & PAOLONI ULTRAFLEX 7 - better than RG213 but near to the size of Mini 8
- Overview
- Technical Features and Videos
- Video
WHY CHOOSE THIS CABLE:
OFFICIAL CABLE of the 2018 WORLD RADIO TEAM CHAMPIONSHIP in GERMANY!
- Notwithstanding the small dimension (7,3mm) its performances outperform RG 213/U (10,2mm) and put into shade the competitor cables of the same diameter.
- Extraordinary flexibility: perfect for tight curves and match with rotator operated antennas, obtained by means of a sophisticated full copper stranded inner conductor (19 wires instead of 7).
- Screening efficiency: >105 dB (SA) and improved sturdiness reached by adding 24 more wires to the braid, for a total of 144 wires, (83% coverage+ 100% foil). This leads to a dramatic reduction of the background noise. Moreover the braiders used are 24 spools, instead of 16 spools, giving 50% more crossovers.
- Lightweight: 6,9 Kg/100 m instead of 13,8 Kg of our RG 213/U, for a reduced stress of the “hanging and swinging" stretch of the cable in rotor operated antennas.
ULTRAFLEX 7 is the best seller coax in Europe!
|

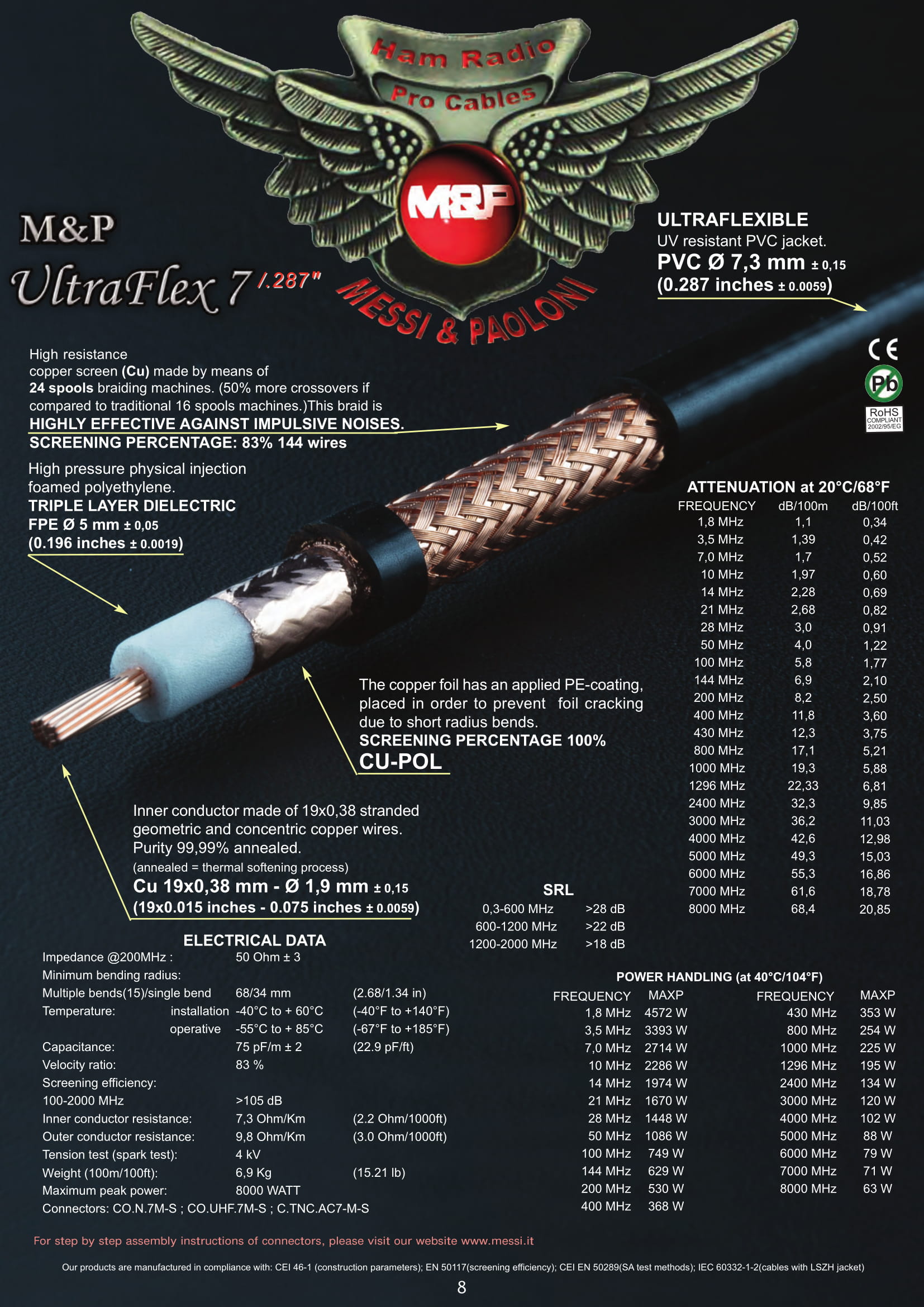

Nominal Impedance Ohms +/-3 Minimum bending radius OUT/IN Capacitance +/-2 pF/m Velocity Ratio Screening Efficiency Inner conductor resistance Outer conductor resistance Tension Test (spark test) Weight (100m) MAX Peak Power Installation Temperature Operative Temperature |
50 Ohm 68/34 mm 75 pF/m 83% >105 dB (Class A++) 7.3 Ohm/Km 9.8 Ohm/Km 4 kV 6.3 Kg 4400 WATT -40° to +60° C -55° to +85° C |
 |
