Yaesu M-90D Desktop Microphone
Product Information
- Overview
- Specifications
M-90D is equipped with both a round 8-pin jack and an 8-pin modular jack. Supplied microphone cable (round 8-pin to 8-pin modular) can be connected to either jack of the M-90D in accordance with the microphone jack of the transceiver. The M-90D does not require the SCU-53.
The M-90D microphone utilises a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation. Using a windscreen cover and a directional microphone element, the structure of the microphone of the M-90D is designed to concentrate voice input from the front while reducing ambient noise from the side. Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave). An isolation transformer is integrated in the circuit board in order to enhance the audio quality. The M-90D are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector.
M-90D is a desktop microphone. The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1. This provides solid and smooth extended operation. A simple onetouch PTT keylock button is placed directly above the PTT key for those long rag chews.
*M-90D does not require the SCU-53 to connect to the transceiver equipped with the round 8-pin microphone connector.

The M-90D microphone utilises a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation. Using a windscreen cover and a directional microphone element, the structure of the microphone of the M-90D is designed to concentrate voice input from the front while reducing ambient noise from the side. Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave). An isolation transformer is integrated in the circuit board in order to enhance the audio quality. The M-90D are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector.
M-90D is a desktop microphone. The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1. This provides solid and smooth extended operation. A simple onetouch PTT keylock button is placed directly above the PTT key for those long rag chews.
*M-90D does not require the SCU-53 to connect to the transceiver equipped with the round 8-pin microphone connector.

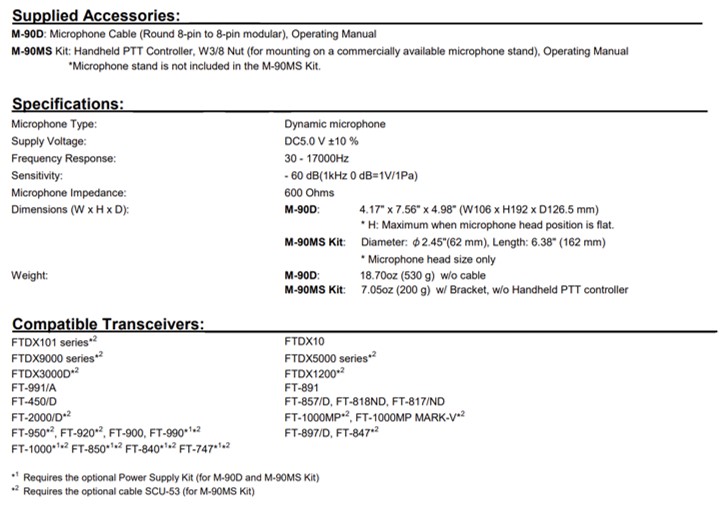

Microphone Type: Dynamic microphone Supply
Voltage: DC5.0 V ±10 %
Frequency Response: 30 - 17000Hz
Sensitivity: - 60 dB(1kHz 0 dB=1V/1Pa)
Microphone Impedance: 600 Ohms
Dimensions (W x H x D):
M-90D: 4.17" x 7.56" x 4.98" (W106 x H192 x D126.5 mm) * H: Maximum when microphone head position is flat.
Compatible Transceivers:
FTDX101 series*2
FTDX10
FTDX9000 series*2
FTDX5000 series*2
FTDX3000D*2
FTDX1200*2
FT-991/A
FT-891
FT-450/D
FT-857/D, FT-818ND, FT-817/ND
FT-2000/D*2
FT-1000MP*2 , FT-1000MP MARK-V*2
FT-950*2 , FT-920*2 , FT-900, FT-990 *1 *2
FT-897/D, FT-847*2
FT-1000*1 * 2 FT-850*1 * 2 FT-840*1 * 2 FT-747*1 * 2
* 1 Requires the optional Power Supply Kit (for M-90D and M-90MS Kit)
* 2 Requires the optional cable SCU-53 (for M-90MS Kit)
Voltage: DC5.0 V ±10 %
Frequency Response: 30 - 17000Hz
Sensitivity: - 60 dB(1kHz 0 dB=1V/1Pa)
Microphone Impedance: 600 Ohms
Dimensions (W x H x D):
M-90D: 4.17" x 7.56" x 4.98" (W106 x H192 x D126.5 mm) * H: Maximum when microphone head position is flat.
Compatible Transceivers:
FTDX101 series*2
FTDX10
FTDX9000 series*2
FTDX5000 series*2
FTDX3000D*2
FTDX1200*2
FT-991/A
FT-891
FT-450/D
FT-857/D, FT-818ND, FT-817/ND
FT-2000/D*2
FT-1000MP*2 , FT-1000MP MARK-V*2
FT-950*2 , FT-920*2 , FT-900, FT-990 *1 *2
FT-897/D, FT-847*2
FT-1000*1 * 2 FT-850*1 * 2 FT-840*1 * 2 FT-747*1 * 2
* 1 Requires the optional Power Supply Kit (for M-90D and M-90MS Kit)
* 2 Requires the optional cable SCU-53 (for M-90MS Kit)
