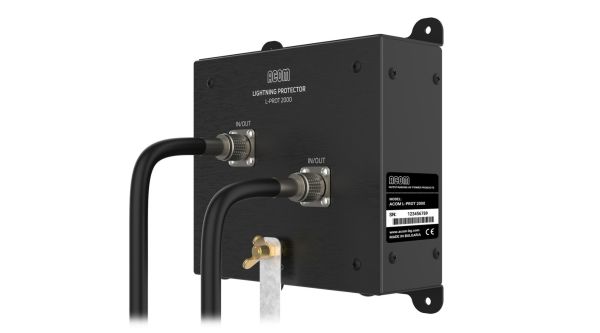

ACOM L-PROT 2000 Lightning Protector
SKU Part Number:
ACOM-L-PROT-2000
Application areaACOM L-PROT 2000 is a lightning protection device of TX/RX equipment in the range of 1.8‑54 MHz / 2 kW with coaxial cable not used...
Read More
Read More
£365.95
£304.96
Pre Order
Seen this product cheaper elsewhere?
Call 0345 2300 599Application area
ACOM L-PROT 2000 is a lightning protection device of TX/RX equipment in the range of 1.8‑54 MHz / 2 kW with coaxial cable not used for (DC) power supply.
Protective action
L-PROT 2000 provides excellent protection against static electricity accumulation in the antenna and eliminates white noise in the receiver during wind, rain, or snow. It also prevents any DC current flow between the input and output. Besides, the two chokes DC short-circuit the ports and prevent charges from accumulating. The air spark gaps limit the back EMF.
Easy use
The device is bi-directional and works equally in both directions. The coaxial connectors of both ports are marked the same: "IN/OUT" since they are mirror-identical and interchangeable by design. The device is equipped with a grounding stud and wing nut which must be grounded.
How it works
The main energy amount of electromagnetic pulses induced by a lightning strike is spread in the frequency spectrum below 100 kHz (LW/VLF band), approaching DC. Suppression of LW/VLF components effectively attenuates the strike energy and completely blocks the pulse DC component. In the rare event of a very close strike, the pulse voltage is limited by the two massive hemispherical air spark gaps. These voltage limiters withstand greater surge current and multiple strikes, and last much longer, than commonly used GDT arresters.
Installation
L-PROT 2000 is designed primarily for installation in an electrical cabinet or on the wall, outside the radio shack. It should be installed low at the building foundation, close to the building's lightning protection grounding system.
Documentation
The User's Manual is available as a PDF file only. The latest version is available here Download.
ACOM creates and distributes its documentation in ENGLISH language only. If you need a User's Manual in your local language, please contact your dealer.
Operating Frequency Range
- From 1.8 MHz to 54 MHz;
IN/OUT Ports
- Two 50 Ω nominal-impedance coaxial RF ports of mirror-identical and interchangeable design, with UHF PTFE connectors (SO-239A), either used for input or output;
Power Handling
- Maximum input RF power, PEP or continuous carrier, at antenna SWR up to 3: 2000 W;
Attenuation and Mismatch of the Useful RF Signal in the Operating Frequency Range
- RF useful-signal attenuation: 0.03 dB maximum;
- Standing Wave Ratio (SWR) - 1.1 maximum;
- Return Loss: -26,5 dB RL maximum;
DC Resistance from Each Port to the Grounding Stud
- 12 mΩ maximum;
Rated Discharge Pulse
- 20 kA, 8/20 µs, 100 shots on each port;
Maximum Discharge Pulse
- 500 A, 10 μs / 1 ms, 1000 shots on each port;
Maximum DC or AC current, 0 to 60 Hz, each port to ground
- 25 Arms continuous, 100 Arms for 1 s;
Frequency Response Slope in the LW/VLF Range
- 60 dB/dec typ.;
LW/VLF Range Attenuation
- @ 100 kHz: 50 dB min;
- @ 30 kHz: 80 dB min;
- @ 10 kHz: 100 dB min;
- below 3 kHz: 120 dB min;
- DC: negligible leakage current;
Frequency Response Slope in the VHF/UHF Range
- -40 dB/dec typ.;
VHF/UHF Range Attenuation
- @ 100 MHz: 30 dB min;
- above 300 MHz: 50 dB min;
Size & Weight (operating, excluding connected cables)
- WxDxH: 175x85x193 mm, Approx. 1.23 kg (6.9x3.4x7.6 inches, Approx. 2.7 lbs.);
Shipping Size & Weight
- WxDxH: Approx. 270x270x100 mm, 1.5 kg (10.6x10.6x4.0 inches, 3.3 lbs.);
- Please, contact us for shipment details;
Operating environments
- Temperature range: -40 to +60 degrees Celsius (-40 degrees F to 140 degrees F);
- Relative air humidity: up to 98% @ +35 degrees Celsius (95 degrees F);
- Height above sea level: up to 3050 m (10000 ft).
