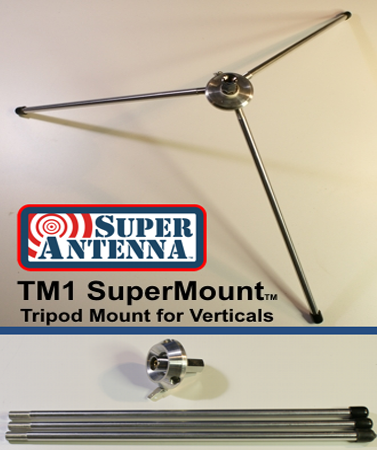

TM1 SuperMount Tripod

TM1 SuperMount Tripod
£51.54 ( £42.95 EXC. VAT )
Add to cart
Product Information
  • Overview
  • Description
  • THIS IS: The model TM1 SuperMount Low Profile Tripod Mount for portable antennas, a very convenient antenna mount made by Super Antenna. It is the companion to the #1 HF Portable Vertical Antenna worldwide, the MP1 Super Antenna. Use it to set your antenna up anywhere... inside or outside. It is designed as part of a /portable /backpack /base /travel antenna system for Ham Radio. Simply place it upon any convenient flat level surface and it provides the antenna's coaxial connection while it holds your antenna in an upright vertical position during operation.
  • OPERATION: Designed for outdoor field deployment and indoor room or balcony operation of Super Antenna MP1, and other types of antennas such as mobile ham or CB mobile antennas. It is for transmitting, receiving, and scanning on HF and VHF-UHF radio frequencies. Operators who demand top performance choose the SuperMount because it is durable, reliable, compact, stealthy, and versatile. Instantly deploy your antenna for EmComm severe weather operations, Backpacking, DXpeditions, or any type of base installation. The strong aluminum tripod enables you to launch your DX signal in a compact area. The tripod mount works with Ham, Marine, Government, NGO, CAP, MARS, EmComm, Shortwave, CB, MURS, FRS, GMRS, PMR, Weather, FM, Scanner, and everything in between.
  • SIZE RETRACTED: Extremely compact 12"x2.5"x2" (30x6x5cm) for travel, it fits easily into a pocket of your Go Bag. SIZE EXTENDED: Triangular base extends to 19" (49cm) wide and 7.5" (19cm) high for stability and low profile. WEIGHT: Only 10 ounces (284g), very lightweight for travel, yet extremely strong and heavy duty. POWER RATING: 500W SSB, 300W CW/DATA. WIND RATING: 15MPH (25kph or 7m/s) maximum when legs are weighted down with 2 pound (1kg) objects on each leg. SIZE WITH ANTENNA ATTACHED: When the Super Antenna MP1B or MP1R antenna element is normally attached to this TM1 tripod for operation, the total height is 7 feet 6 inch tall (228cm), engineered to set on the floor of a standard room and not touch the ceiling. Other types of ham or CB antennas may have different heights. (Antenna not included. Antennas are sold separately.)
  • COMPATIBILITY: Fully compatible with all Super Antenna equipment, Ham radios, CB radios, scanners, and shortwave receivers. Compatible with most Ham radio mobile antennas, and CB mobile antennas. DEPLOYMENT: Deploys in one minute by one person with no tools needed. CONNECTOR: SO-239 (PL259 compatible) with 50 ohm standard impedance. FITTINGS: Antenna fitting is radio industry standard 3/8"-24 female thread, compatible with standard ham and CB mobile antennas. TM1 SuperMount can be placed on a table, bench, chair, floor, or flat ground. TRIPOD LEGS: Each leg has male 3/8"-24 threads on one end and a polymer black cap foot on the other end, and attaches to the tripod hub. TRIPOD HUB: The hub is milled from a solid block of aircraft grade aluminum, and has three 3/8"-24 holes to interface with the removable tripod legs. RADIAL TERMINALS: Two standard quarter-inch (6mm) male push-on male tabs provide secure quick disconnect for matching SuperWire Radial Sets and ground lugs to the mount hub. (Radial Sets not included. Radials sold separately.)
  • CONTENTS: TM1 SuperMount Hub + three tripod legs. GROUND TERMINAL LUGS: Two terminal connections for ground radials. Strong aluminum frame. Coaxial fitting. MATERIALS: High quality aircraft-grade aluminum, brass connectors, with soft black plastic non-slip foot caps. COLOR: Natural metallic silver. RECOMMENDED ACCESSORIES: Super Antenna model MP1B SuperStick; Super Antenna model MP1R SuperWhip; Super Antenna model SW1 SuperWhip; Super Antenna model MC80 SuperCoil 80m/75m optional coil; Super Antenna model TW1 Telescopic Whip; GB1 Super Go Bag black carrying case, MOLLE-PALS compatible, with a pocket specifically designed to hold this TM1 Low Profile Tripod; Super Antenna Radial Set models: MR642, MR8060, MR8075, MR4010, MR4020, MR2010, or MR1710. NOTE: THIS IS NOT A COAXIAL CABLE. THIS IS NOT A RADIAL SET. THIS IS ONLY A TRIPOD MOUNT FOR ANTENNAS. THIS IS NOT AN ANTENNA.
TM1 SuperMount Portable Vertical Antenna Tripod Mount Specifications

Product Features:
  • Frequency Range:1.8MHz~144MHz
  • Rated Power: 500W SSB; 300W CW / DIGITAL
  • Double push-on grounding terminals for counterpoise or radials
  • Weight: 1 pound (0.4kg)
  • For mounting a vertical such as MP1 series on a flat surface
  • For portable ground mounting, tables, floors
  • All aluminum construction for light weight travel
  • Packs down to 12 inches for transport
  • Fits common HF mobile whips, bug-sticks, hamm-sticks, CB mobile whips, hustle, etc
  • Solid connections fit all types of SuperWire radial sets.



Product Contents:
  • TM1 SuperMount Portable Vertical Antenna Tripod Mount
  • 1 Aluminum Hub with 3/8"-24 female antenna socket and SO-239 female connector
  • 2 Grounding terminals for use with push-on radial or counterpoise attachments
  • 3 Tripod leg rods with protector feet on ends
  • All fittings Standard 3/8"-24 threads
