Wouxun KG-UV8H 2m and 70cms 144/430MHz

Wouxun KG-UV8H 2m and 70cms 144/430MHz
Part Number: WO-KG-UV8H-2-70
£99.95 ( £83.29 EXC. VAT )
In Stock
Shipping to:
Add to cart
Call Now
Product Information
  • Overview

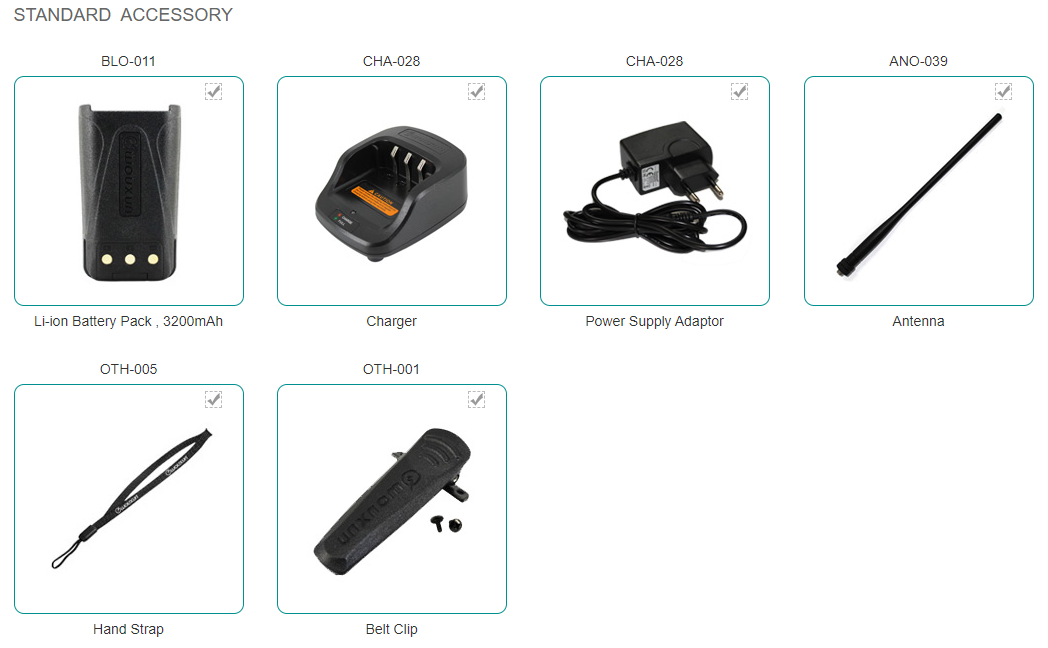

  • Standard Accessories
  • Customer Reviews
2m and 70cms

Programming cable not included!


  • Dulex Repeater , VHF to UHFor UHF to VHF
  • Memory Channels 999
  • QT/DQT Encoding / Decoding , QT / DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Incoming Message Display Caller ID display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • Dual Display ,Two Independent Operation System
  • Large Color Screen
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Power on Message Editable
  • Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
  • Chinese and English Voice Guide
  • Chinese and English Screen Display
  • Bright Flashlight illumination
  • Reverse Frequency
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Encryption and Non-Standard CTCSS/DCS
  • Voice Compander
   Frequency Range

   144-146MHz & 430-440MHz

   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
(2 reviews)Write a review
Best value hand held I've bought so far
I absolutely love this new Wouxun hand held, its built to last and would withstand the riggers of back packers. Battery life is excellent, the colour screen is large and easily read if your eye sight isn't to great.. So far programming the menu settings is easy enough.. I'm one of those that prefer to play and discover how to program it, the manual only comes out if i'm really stuck.. One down side is the cover over the external microphone and data program socket is impossible to open, you literally have to remove it totally using a screw driver on the screw to remove it totally, no doubt these will get lost.. Apart from this i recommend it 200%, 73 de Wayne 2e0bvj
Excellent Value for Money
I've not had this rig long but my 1st impressions have been extremely positive. The rig is well built, sits well comfortably hand and the battery life is exceptional. The screen is crisp and clear, although the layout and colours are different to the illustration on the box and on the website but equally as informative and easy to view. The audio quality is excellent as it the speaker. I was received well on my local repeater whilst walking in dense woodland running 1W. My only criticism is that of the manual, whilst it covers most of the functionality it fails to highlight some of the basics ie. Switching Duel Watch on/off - no mention anywhere. I worked it out eventually ( pushing the RPT button whilst in standby mode ). A small disappointment is that it doesn't come with a programming cable and software as standard. You'll need to pay £16 extra. Manually programming is very easy but if you like to name your channels this can be quite laborious cycling through a plethora of characters before getting the the alphabet of letters. All in all tho this is a great radio and offering a quality build, feature rich and excellent audio and exceptional value for money.
