Wouxun KG-679E - VHF Version

Wouxun KG-679E - VHF Version
Part Number: WO-KG-679E
£95.95 ( £79.96 EXC. VAT )
Pre-Order. Click to notify me
Shipping to:
Add to cart
Call Now
Product Information
  • Overview
  • More Info
  • Specification

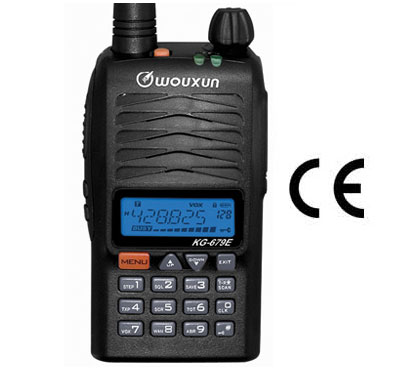

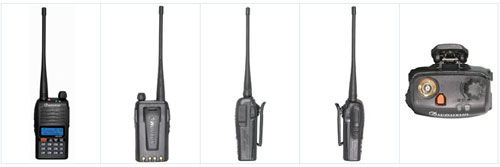

Handheld Two Way Radio KG-679E - VHF Version

New! 2m Handie Main Features:
  • 128 memory channels
  • 8 groups scrambler
  • Channel name edit available
  • Output power VHF 5W/1W
  • High/Low power can changeable by top key
  • VOX (Level adjustable)
  • DTMF encoding and DTMF decoding
  • 105 groups D.C.S/50 groups CTCSS
  • DCS/CTCSS of RX and TX can be set respectively
  • Reverse frequency function
  • Busy channel lockout
  • Distant alarm
  • ANI (Caller ID)
  • Multi scan mode (TO/CO/SE)
  • Inspection, monitor, stun, kill and emergency alarm
  • All calls, group calls and selective calls
  • Calling ring and ring overtime auto answer
  • Multi silent mode (QT/QTADT/QTXDT)
  • Channel steps (5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow bandwidth selection (25KHz/12.5KHz)

Optional Features:
  • 5/2 tone and 1750Hz burst tone
  • Priority scan
  • Remark: If the radio with optional features, it will available 200 memory channels and 1 group scrambler.

Super Features:
  • Digital FM radio with frequency display
  • Three color LCD backlight display
  • Frequency/Channel/Frequency+Channel display mode
  • Voice guide (Chinese / English)
  • Side key programmable
  • Menu/Channel reset
  • Keyboard lock (Auto/Manual)
  • Wireclone function
  • Manual menu operation
  • Input frequency by using keypad
  • PC software disable frequency input
  • Come with 1300mAh/1700mah Li-ion battery and intelligent charger

Supplied Accessories:
Technical Specification
Frequency Range VHF: 136MHz-174MHz
Channel Capacity 128(200)
Channel Spacing 25/12.5KHz
Maximum Deviation ±5KHz to 25KHz     ±2.5KHz to 12.5KHz
Frequency Stability ±2.0ppm
Operating Voltage 7.4V
Operating Temperature  -30 ℃ ~ +60 ℃
Battery 1300/1700mAh(Li-ion)
Standby Current 50mA
Antenna Impedance 50Ω
Dimension(without antenna & battery(L×W×H) 105×63×38(mm)
Weight(with antenna & battery) 250g
RF Power Output VHF:5W/1W
Modulation 16KфF3E/11KфF3E
Spurious and Harmonious -36dBm < 1GHz   -30dBm > 1GHz
FM Noise 40dB
Adjacent Channel Power 70dB/60dB
Audio Distortion ≤ 5 ﹪
Sensitivity(12dB SINAD) 0.25μV
Selectivity 60dB
Intermodulation 60dB
Spurious Response Rejection 65dB/70dB
Audio Power Output 500mW
Audio Distortion ≤ 3 ﹪ (0.5W)

Compare list of different configuration
KG-679E Main features The popular The upgrade The advanced

 Memory channels

128 128 200

 Scrambler available

Optional 8 groups

 DTMF encoding and DTMF edcoding

 Output power VHF 5W/1W

 105 groups DCS/50 groups CTCSS

 Wide/Narrow bandwidth selection (25KHz/12.5KHz)

 ANI(Caller ID)


 TOT(Time-out timer)

 VOX (Level adjustable)

 Busy channel lockout(BCL)

 Reverse frequency function

 Distant alarm

 All calls, group calls and selective calls

 Channel steps(5K/6.25K/10K/12.5K/25K)

 Channel name edit available

 Multi scan mode(TO/CO/SE)

 Clone radio-to-radio

 FM Radio

 Inspection,monitor,stun,kill and emergency alarm


 DCS/CTCSS of RX and TX can be set respectively


 5 tones and 2 tones


 1750Hz burst tone


 Priority scan
