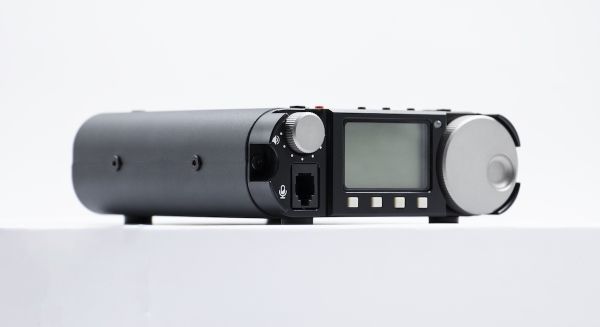

Xiegu G106 HF QRP SDR Transceiver
SKU Part Number:
XIEGU-G106
The Xiegu G106 5 watt QRP transceiver with a general coverage RX 0.55-30 MHz and TX in 80-10 meter amateur radio bands + RX of broadcast...
Read More
Read More
Special Price
£199.00
£165.83
Regular Price
£250.00
£208.33
Pre Order
Seen this product cheaper elsewhere?
Call 0345 2300 599
The Xiegu G106 5 watt QRP transceiver with a general coverage RX 0.55-30 MHz and TX in 80-10 meter amateur radio bands + RX of broadcast radio in 88-108 MHz.
The Xiegu G106 is a new 5 watt QRP transceiver with a general coverage receiver 0.55-30 MHz with SSB/CW/AM transmit capabilities in the 80 to 10 meter amateur radio bands, WARC bands included. The G106 also have Wide FM receive in the broadcast FM band 88-108 MHz.
The G106 is based on an SDR architecture with 16bit sampling to deliver superior performance. It has a digital CW filter with three bandwidths to help you fight interference and get more clear reception of weak signals. With the optional external DE-19 digital adapter, it can be connected to a PC for working digital modes including FT8.
As an entry-level portable SDR transceiver, G106 will be the perfect HF transceiver to start explore the bands with SSB, CW and exciting digital modes like FT8.
Xiegu G106 Features
- High-performance SDR 16-bit circuit
- Compact, robust and user friendly
- General coverage HF receiver
- Transmit in all amateur radio bands 3.8~29.7MHz
- WFM broadcast receiving in 88-108 MHz
- Digital modes option capable
- Computer control ready
Xiegu G106 General Specifications
RX frequency range: | 0.55~30MHz | 88~108MHz (WFM) | |
TX frequency range: | 3.5~3.9MHz
10.1~10.15MHz 18.068~18.168MHz 24.89~24.99MHz |
7.0~7.2MHz
14.0~14.35MHz 21.0~21.45MHz 28.0~29.7MHz |
|
Operating mode: | SSB/CW/AM , WFM (receive only) | ||
Receiving sensitivity: | CW: 0.25uV @10dB S/N
SSB: 0.5uV @10dB S/N AM: 10uV @10dB S/N |
||
Frequency stability: | ±1.5ppm within 30min after power on
@25°C: 1ppm/hour |
||
Transmitting power: | ≥5W @13.8V DC | ||
Transmitting spurious suppression: | ≥50dB | ||
Audio output power: | 0.3W | ||
Operating voltage: | 9~15V DC | ||
Standby current: | 0.37A @Max | ||
Transmitting current: | 2.8A @Max | ||
Dimensions: | 120*40*135 (mm) | ||
Weight: | About 720g (only host) |
Xiegu G106 In the Box
-
- G106 radio unit
- 12 Volt DC power cord
- English manual
- Xiegu Service Card
- Full list of accessories to be updated later.
Please note that information on this product page is PRELIMINARY and subject to change without notice.
Weight | 1.3 kg |
---|---|
Dimensions | 26 × 19.7 × 8 cm |
The Xiegu G106 5 watt QRP transceiver with a general coverage RX 0.55-30 MHz and TX in 80-10 meter amateur radio bands + RX of broadcast radio in 88-108 MHz.
The Xiegu G106 is a new 5 watt QRP transceiver with a general coverage receiver 0.55-30 MHz with SSB/CW/AM transmit capabilities in the 80 to 10 meter amateur radio bands, WARC bands included. The G106 also have Wide FM receive in the broadcast FM band 88-108 MHz.
The G106 is based on an SDR architecture with 16bit sampling to deliver superior performance. It has a digital CW filter with three bandwidths to help you fight interference and get more clear reception of weak signals. With the optional external DE-19 digital adapter, it can be connected to a PC for working digital modes including FT8.
As an entry-level portable SDR transceiver, G106 will be the perfect HF transceiver to start explore the bands with SSB, CW and exciting digital modes like FT8.
Xiegu G106 Features
- High-performance SDR 16-bit circuit
- Compact, robust and user friendly
- General coverage HF receiver
- Transmit in all amateur radio bands 3.8~29.7MHz
- WFM broadcast receiving in 88-108 MHz
- Digital modes option capable
- Computer control ready
Xiegu G106 General Specifications
RX frequency range: | 0.55~30MHz | 88~108MHz (WFM) | |
TX frequency range: | 3.5~3.9MHz
10.1~10.15MHz 18.068~18.168MHz 24.89~24.99MHz |
7.0~7.2MHz
14.0~14.35MHz 21.0~21.45MHz 28.0~29.7MHz |
|
Operating mode: | SSB/CW, AM/WFM (receive only) | ||
Receiving sensitivity: | CW: 0.25uV @10dB S/N
SSB: 0.5uV @10dB S/N AM: 10uV @10dB S/N |
||
Frequency stability: | ±1.5ppm within 30min after power on
@25°C: 1ppm/hour |
||
Transmitting power: | ≥5W @13.8V DC | ||
Transmitting spurious suppression: | ≥50dB | ||
Audio output power: | 0.3W | ||
Operating voltage: | 9~15V DC | ||
Standby current: | 0.37A @Max | ||
Transmitting current: | 2.8A @Max | ||
Dimensions: | 120*40*135 (mm) | ||
Weight: | About 720g (only host) |
Xiegu G106 In the Box
-
- G106 radio unit
- 12 Volt DC power cord
- English manual
- Xiegu Service Card
- Full list of accessories to be updated later.
Please note that information on this product page is PRELIMINARY and subject to change without notice.
Weight | 1.3 kg |
---|---|
Dimensions | 26 × 19.7 × 8 cm |
