VE2DX ICOM Meter IM1-4BT Plus V2
SKU Part Number:
IM1-4BT Plus

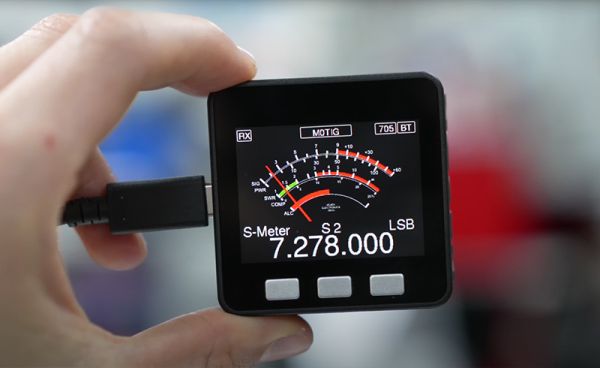

The VE2DX ICOM 2-inch METER (IM1-4BT) is a simple display unit showing four possible displays; two needles and two bar graph...
Read More
Read More
£164.95
£137.46
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599The VE2DX ICOM 2-inch METER (IM1-4BT) is a simple display unit showing four possible displays; two needles and two bar graph style.
The VE2DX ICOM 2-inch METER (IM1-4BT) supports 23 different ICOM radios while being linked by either a CI-V cabled or Bluetooth CI-V link, or USBoIP WiFi link to the radio via your PC, soon it will be supporting CIVoIP direct to LAN or WiFi supporting radios like the 705 or 9700.
The VE2DX ICOM 2-inch METER (IM1-4BT) is Based on a small 2-inch display ESP32 platform, with Serial, TTL, Bluetooth, and WIFI support, this will give a great platform, especially for the needle larger than most needles you dealt with before.
23 different ICOM radios supported
The IM1-Meters can be used with 23 ICOM radios and different types of connections.
You can connect it to your radio and PC with a CI-V cable **not supplied**, a Bluetooth CI-V link, or a USBoIP WiFi link.
Some radios also support CIVoIP direct to LAN or WiFi.
The supported radios and connections include:
- CI-V cable connection: 7000, 705, 905, 7100, 7200, 7300, 746Pro, 7400, 7410, 756ProIII, 7600, 7610, 7700, 7850, 7851, 9100, 9700, ID5100, ID52, R30, R8600, R9500, 2730. (CT17B-Nano included)
- Bluetooth: 705, 905, ID5100, ID52, R30.
- USBoIP WiFi: 705 , 905 ,7100, 7610, 7700, 7850, 7851, 9700, ID5100, ID52, R30, R8600, R9500.
- CIVoIP direct to LAN or WiFi: 705, 905, 9700, ID5100, ID52, R30, R8600, R9500.
ICOM Radios Support Chart
VE2DX has produced a PDF table to show radio function and compatability, you can download it below.
Download PDFWith CT17B-Micro CI-V Hub.
(includes USB Cable) **CiV cables not supplied**
-4 display modes: 2 Bargraphs and 2 needles.
- 4 CI-V Comm modes; Compatable conections: Cable, Bluetooth (705/905), USBoIP, and CIVoIP.
- All Cable CI-V ports RF Filtered with TrueTTL (c)
How does it work?
The 705 Meter is based on a fully integrated ESP32 platform, it can be paired with your 705 (We are testing other ICOM Radio with Bluetooth like the 7610, etc... and will update the offer later) and once paired it will probe the radio in real-time to show the radio Frequency, Mode, filter setting and also one of the 3 following SWR, Real Power or S Meter, in both text and also as a Needle on the usual radio-style scale.
Will it work on other ESP32 platform?
No, but I am working to get it going on a new hardware platform that has much larger TFT Capacitive touch and integrate it with the IMK1 8 memory platform to offer Hams a fully integrated platform.
What about Other Radios then the 705??
The VE2DX ICOM Meter IM1-4BT Plus comes with the CT17B-Micro 3 ports CI-V Hub with VE2DX Electronics TrueCIV© new technology that offers very hign Filtration and TTL levels always at maxim
Reliability! That's Why!
Simple and a LOT less breaking points!
Thanks to the optional CT17B-Micro, you can plug your ICOM Radio directly into our Meters.
Just MORE Radios!
Many ICOM radios are supported, 23 of them, these can be connected via Cabled CI-V thanks to the CT17B-Micro, Bluetooth, or USBoIP if you radio supports CI-V USB and is connected to your PC, and soon CIVoIP to LAN connected radios like 9700, 905, 705, etc...
Plug and Play
The IM1 series of VE2DX Meters are 100% Plug and play
