Icom IC-7760 - 200 W HF/50 MHz Transceiver (Deposit available)
SKU Part Number: IC-7760
Shipping Early 2025   Payment Options for the IC-7760: You can choose to either: Pay in Full – Add the IC-7760 to your cart, complete the...
Read More
£5,699.00 £4,749.17
Shipping Early 2025
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Shipping Early 2025



Payment Options for the IC-7760:

You can choose to either:

  1. Pay in Full – Add the IC-7760 to your cart, complete the purchase, and we’ll ship it immediately once stock lands with us.

  2. Reserve with a DepositClick here to place a £250 deposit to secure your unit. We’ll contact you for the remaining balance once the stock has arrived.



Following months of speculation and excitement surrounding Icom's top-secret "X60 Project," ICOM officially unveiled the highly anticipated IC-7760 today at the Tokyo Hamfair (August 24th & 25th 2024).

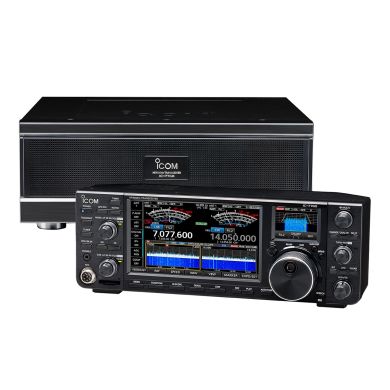

The IC-7760 is a 200 W HF/50 MHz Amateur radio transceiver. The IC-7760 offers a new “innovative shack style” consisting of a full control head with separate RF deck, connected through a control cable for greater installation flexibility. The supplied control cable is 3 m (9.8 ft) long and by using a commercially available LAN cable, the RF deck can be installed in a more remote location. Furthermore, the control head and RF deck can be connected through a wired home LAN connection for remote operation. This simple configuration does not require a PC, and can be easily operated from nearly anywhere in the home as long as a LAN connection is available.

Main and Sub dual displays with touch screen function are provided for improved viewing of information and also smooth operation. The 7-inch main display centralises information important for operation, such as Main/Sub frequencies and the setting/operating status of each function. The newly adopted 2.4-inch sub-display shows filter effects, various meters, and band stacking register keys.

DIGI-SEL (Digital Pre-selector) and the preamp can now be used together. DIGI-SEL prevents suppression of strong out-of-band signals, while the preamp improves receiver sensitivity. It also maximizes the dynamic range of the A/D converter to avoid signal overflow.

The IC-7760 offers a new Innovative Shack Style, combining 200 W of high output power with clean signal transmission assisted by the Digital Pre-Distortion feature, and convenient functions to support comfortable operation, making it ideal for contests and DX hunting.

Main Features
• Full control head with separate RF deck for greater installation flexibility*1
• Supports in-house remote operation through a wired LAN *1
• Two displays, 7-inch wide and 2.4-inch, with touch screen operation
• DIGI-SEL and the preamp can work at the same time
• Advanced RF direct sampling system using FPGA processing
• 200 W full power and full duty *2
• DPD (Digital Pre-Distortion) for excellent IMD characteristics and clean transmitted signals

*1 Communication between the controller and the RF deck depends on the network environment in which it is used. Gigabit Ethernet is recommended. The controller can be used on a different network segment than the RF deck such as over a network switch. *2 200 W output and 1-hour continuous transmission with 100~200V AC input (at ambient temperature 25 ℃.)

A PDF brochure can be downloaded by clicking here!

Shipping Early 2025



Payment Options for the IC-7760:

You can choose to either:

  1. Pay in Full – Add the IC-7760 to your cart, complete the purchase, and we’ll ship it immediately once stock lands with us.

  2. Reserve with a DepositClick here to place a £250 deposit to secure your unit. We’ll contact you for the remaining balance once the stock has arrived.


A New Innovative Shack Style

In today’s connected world, the IC-7760 introduces a new connected system consisting of a remote control head and RF deck, connected with a commercially available control (LAN) cable.  This concept increases the flexibility of your station installation, making more space available on the desktop by placing the RF deck in an area closer to the antenna feed point.  In addition to the direct connect feature, control head to RF deck, utilize your home network to make any tabletop your shack and a PC is not required!

Feature 01Full Control Head with Separated RF Deck

Separate Control Head and RF deck configuration.
Improved Installation Flexibility and Space-saving Operation

The IC-7760 consists of a separate remote control head and RF deck and uses a LAN cable for connecting between them. It increases the flexibility of the installation. A control cable (3 m, 9.8 ft) is supplied with the transceiver, and a commercially available LAN cable* can be used to install the RF deck in a more remote location. It enables the RF deck to be placed in a rack or other location away from the station desktop, providing a quiet shack environment away from the noise of the fan used to dissipate the heat generated by the RF deck.

* LAN cable: Cat5e or higher. Cable length: Maximum 100 m, 328 ft

Feature 02Flexible In-house Remote Operation

Supports In-house Remote Operation Through a Home LAN Connection


In-house Remote Operation

The IC-7760 can be connected to the control head and RF deck through a wired home LAN network*. This gives the user even greater flexibility of the RF deck. Because of its simple configuration that does not require a PC, the control head of the 7760 can be moved anywhere in the house and operated not only from the shack but also from the living room, etc., as long as a LAN connection is available.

* Communication between the control head and the RF deck depends on the network environment in which it is used. Gigabit Ethernet is required.
The control head can be used on a different network segment than the RF deck such as over a network switch.

Feature 03Dual, Independent Receivers

Dual, Independent Receivers


Receiver Block Diagram

The IC-7760 has independent MAIN/SUB receivers, from the antenna to the speaker, so that one receiver section has no effect on the other, providing simultaneous reception of two signals in different bands/modes with identical performance. As with the IC-7851, dual spectrum scopes provide simultaneous display of the MAIN and SUB bands allowing the operator to see the changing band conditions.

Advanced RF Direct Sampling System

The IC-7760 adopts the RF direct sampling system, in which RF signals are directly converted to digital signals and the signals are processed by an FPGA (Field Programmable Gate Array). This system avoids non-linear distortions that occur in mixer stages during the analog signal processing. In addition, by employing DSP units in both the RF deck and control head, the IC-7760 is able to handle complex audio path switching due to various interface inputs and outputs, while minimizing delay in a home LAN environment.

DIGI-SEL and Preamp

The DIGI-SEL (Digital Pre-selector) is highly effective in rejecting out-of-band strong signals such as from broadcasting stations or multi-multi operation. In conventional models (such as IC-7850/51 or IC-7610), the DIGI-SEL circuit was located soon after the RF input (antenna) to prevent signal distortion by  out-of-band interference. Even if the preamp was turned ON, the noise figure (receiver sensitivity) could not be improved, as DIGI-SEL had an insertion loss due to its narrow bandwidth. In the IC-7760, which is a direct sampling system, DIGI-SEL prevents overflow (OVF) due to unwanted out-of-band signals rather than signal distortion, and the preamp uses the A/D converter to take full advantage of its dynamic range. When preamp is turned ON in the IC-7760, the preamp enhances the intended signal first, then DIGI-SEL filters out unwanted out-of-band signals. This makes it possible that the preamp works together with DIGI-SEL.

A Total of 15-separated BPF (Bandpass Filter)


BPF Boards on the RF Unit

While the previous model covered HF bands with a 9-separated BPF (Band Pass Filter), the IC-7760 uses an 11-separated BPF in HF bands. In addition, by employing sharp filters specialized for each amateur band, the BPF efficiently attenuates out-of-band interference signals in the RF stage, and prevents overflow at the A/D converter.

Feature 04200 W Output 100% Duty Cycle

DPD (Digital Pre-Distortion) Technology

The DPD function corrects non-linear distortion at the final amplifier by applying inverse distortion in advance. A clean signal transmission is achieved while providing 200 W of high output power at the same time. The DPD function also works at the 1 kW output in combination with the IC-PW2*.

 DPD feedback cable OPC-2501 is required when using with the IC-PW2.

100% Duty Cycle at 200 W Output

The IC-7760 uses a 450 W-class 65 V LDMOS-FET in the PA section, combined with a large heat sink and effective cooling system to achieve a generous 200 W full power full duty operation*. Continuous FT8 mode operation is also possible. Furthermore, modulation and frequency conversion are made through digital signal processing, the D/A converter directly outputs the transmit frequency, achieving the purest transmission C/N. By using 450 W FETs device in 200 W output, the PA achieves excellent IMD characteristics.

* 200 W and 1 hour continuous transmission with 100 V AC input (at ambient temperature 25 ℃.)

Built-in Automatic Antenna Tuner


Antenna Tuner Unit

The IC-7760 incorporates a mechanical relay type internal antenna tuner as a first for our 200 W models. It provides faster tuning than the conventional variable capacitor type. Once tuned, the matching information is automatically recalled the next time the frequency is selected, facilitating smooth band changes and multi-band operation.

Feature 05Dual Display Operation

Dual Display Control Head


Meter Setting Example

The IC-7760 control head has main and sub dual displays. The displays are one 7-inch-wide main display (800 × 480 pixels, WVGA) and one 2.4-inch sub display (320 × 240 pixels) and both displays are touch screens. The main display shows information necessary for operation, including MAIN/SUB operating frequencies, setting/operating status of each function, as well as the spectrum scope, S-meter, and RTTY/PSK31/63 decoding messages.

■2.4-inch Sub Display

The 2.4-inch sub display can show the filter settings, various meters, and a band stacking register. The filter setting screen can display the IF filter passband width and IF filter shape superimposed on the IF filter passband signal. This function shows you visible images of twin PBTs, manual notch effects. The improved visibility of information enhances operability and ensures smoother operation.

Dual Spectrum Scope and Waterfall


Top-to-bottom Dual Scope Example

The dual Spectrum Scope provides excellent sweep speed, resolution, and a wide dynamic range of 100 dB with FPGA, DSP and CPU combined processing for main and sub bands. It can also monitor two different bands at the same time, which is useful for monitoring conditions and during contests. Dual scopes can be shown left-to-right or top-to-bottom layout, depending on the situation and needs. In the Continuous SCROLL mode, a wide bandwidth exceeding 1 MHz can be seen on the scope screen. The waterfall display shows changes in the frequency spectrum vertically, enabling the user to find a weak signal that is difficult to detect with the spectrum scope. Increases QSO possibilities without missing weak DX stations.

Audio Scope Flexibility

The Audio Scope screen shows the transmit and received signal’s frequency components on the FFT scope, and its waveform components on the Oscilloscope. The Audio Scope makes it easy to monitor signal characteristics such as microphone compressor level, filter width, and notch filter. You can monitor received CW keying wave forms in the Oscilloscope.

■Audio Scope Specifications

FFT Scope with Waterfall Oscilloscope
・Scope Attenuator: 0dB, -10dB, -20dB, -30dB
・FFT Scope Waterfall Display: ON/OFF
・Scope Waveform Type: Line, Fill
・Scope Waveform Color: Adjustable
・Scope Level: 0dB, -10dB, -20dB, -30dB
・Sweep Time: 1ms, 3ms, 10ms, 30ms, 100ms, 300ms/Div
・Scope Waveform Color: Adjustable


Feature 06Full Control Head and RF Deck Functions

Dual Speakers


Dual Speakers

The IC-7760 is also equipped with dual speakers. By separating the MAIN/SUB audio into left and right speakers, respectively, distinguishing the audio during Dualwatch operation is improved. MAIN/SUB audio can set for stereo or mono output from both speakers.

Automatic Contest Serial Numbering


Contest Serial Numbering Example

This function is powerful in CW and RTTY contests. Each time the pre-programmed memory is transmitted, the serial number is automatically counted from 001. The serial number can be set in multiple locations to ensure that the contest number is reliably copied.

PRESET FT8 Menu

Introduced with the IC-7300 as FT8 is actively used around the world in everyday operation as well as with DXpeditions. FT8 can be easily set up by simply selecting it from the [Preset] memory and all necessary items can be set at once. Moreover, when returning to the normal settings from FT8, simply select [Normal] memory for a smooth transition. In addition, up to 3 [Preset] memories can be written to presets SSTV as well as future new digital modes to be supported.

RC-28 for a Second VFO Knob


Use Image of Optional RC-28

By connecting the optional RC-28 via USB connection, the SUB band tuning of the IC-7760 can be conveniently operated with your fingertips. MAIN/SUB switching buttons can be assigned to the F-1 and F-2 buttons on the RC-28 and it can operate as the main dial for both MAIN and SUB bands. This allows for quick response to DXpedition stations in split operation, as well as Dualwatch.

SD Card Slot


SD Card Slot

An SD card slot is provided as an interface for data storage. In addition to voice recordings of outgoing and incoming calls, RTTY/PSK decode logs, captured images of the display, user settings, and firmware updates can be saved in the storage. Voice memories sent in Phone modes, and message memories sent in CW/RTTY/PSK modes, can also be stored. In addition, when an operator is replaced, the operator can simply load their preferred settings from the storage to immediately start operating.

Touch Screen and Multi-Dial Knob



The combination of the touch screen and the multi-dial knob offers easy access to various settings. When the multi-dial knob is pressed, menu items appear on the right side of the display next to the dial. Touch that menu to select an item, then turn the multi-dial knob to adjust the level, providing much faster access to various functions such as RF power, microphone gain, DIGI-SEL, and notch functions.

I/Q Signal Output


USB Connector on the RF Deck (USB 3.0 cable required)

An SD card slot is provided as an interface for data storage. In addition to voice recordings of outgoing and incoming calls, RTTY/PSK decode logs, captured images of the display, user settings, and firmware updates can be saved in the storage. Voice memories sent in Phone modes, and message memories sent in CW/RTTY/PSK modes, can also be stored. In addition, when an operator is replaced, the operator can simply load their preferred settings from the storage for immediately starting of operation.

RS-BA1 – Internal Server


RS-BA1 Remote Control

Whether from a remote part of your home QTH, or at a remote location somewhere around the world, the RS-BA1 Version 2 software enables you to operate your IC-7760.  The Dualwatch operation and dual spectrum scopes with the waterfall functions can be used on your remote PC. With the addition of an Ethernet connector, a base station computer is not required.

DVI-D Connector


External Display

The IC-7760 has a DVI-D connector on the remote control head to output digital signals to an external display without signal degradation. The main display can be mirrored on the large external display.

Other Outstanding Features

RX antenna

  • BNC type RX IN/OUT connectors for a receiver antenna or external BPF/preamp connection

CW mode

  • FPGA-controlled CW keying waveform shaping
  • Multi-function electronic keyer
  • CW pitch control from 300 Hz ~ 900 Hz (5 kHz step)
  • Auto repeat function
  • Normal or short Morse number style
  • Double key jack system
  • Full break-in and semi break-in
  • CW auto tuning
  • APF (Audio Peak Filter) function adjustable filter shape, width, and AF level
  • 136 kHz band operation (EUR version only)

Receiver

  • 30 kHz ~ 60 MHz receiver (Some frequencies are not guaranteed.)
  • Two types of preamps
      Preamp 1: Improves intermodulation
      Preamp 2: High gain preamplifier
  • 3 dB ~ 45 dB variable attenuator (3 dB step)
  • IP+ function improves 3rd order intercept point performance
  • Main/Sub band tracking function for diversity reception
  • Twin peak audio filter for the RTTY mode
  • RTTY/PSK encoder and decoder
  • Adjustable AGC time constant from 0.1 to 6 seconds (FM mode is fixed)

Transmitter

  • TX monitor function
  • All mode power control
  • VOX (Voice Operated Transmission) capability
  • BNC type transverter connector
  • Microphone equalizer
  • Adjustable transmit bandwidth
  • 50 CTCSS tones
  • Transmit Power Limit function for each band

Operation

  • Memo pad stores up to 10 operating frequencies and modes
  • Quick split function
  • Quick Dualwatch function
  • RF gain and squelch control with a knob
  • RIT and ⊿TX variable up to 9.999 kHz
  • UTC/local clock and timer function
  • 1 Hz pitch tuning and display
  • Dial lock function
  • Adjustable main dial brake
  • External speaker jacks for Main and Sub receivers
  • Screen saver function
  • Multi-function meter (S-meter, Power, ALC, COMP, SWR, Id, Vd and TEMP)
  • Auto tuning step function
  • AH-730 external antenna tuner control (When the AH-730 is connected, output power of the specified antenna terminal is automatically set to 100 W or less)
  • MAIN/SUB AF mute
  • Adjustable LCD/LED backlight
  • USB port for optional RC-28, keyboard, mouse and USB flash drive connection

Rear Panel View
