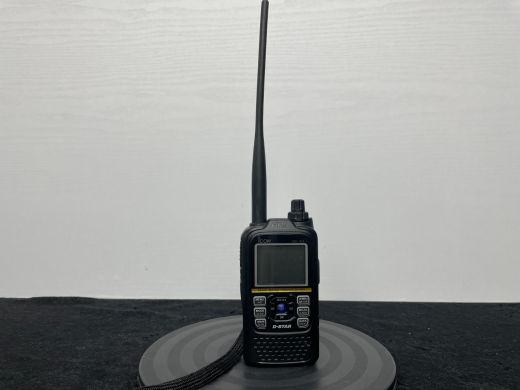

Icom ID-51e Plus2 (USED)
SKU Part Number:
U19070
The product is in good condition including manual, antenna, battery charger, battery (the battery is not included in the product warranty) and...
Read More
Read More
Special Price
£299.00
£299.00
Regular Price
£329.00
£329.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition including manual, antenna, battery charger, battery (the battery is not included in the product warranty) and box.
SPECIFICATIONS
GENERAL | |||||||||||||||||||
Type: | Amateur VHF/UHF transceiver | ||||||||||||||||||
Frequency range: | Europe TX: TX: 144-146 / 430-440 MHz RX: 0.52-1.710 / 76-108 / 108-174 / 380-479 MHz |
||||||||||||||||||
Tuning steps: | 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz | ||||||||||||||||||
Frequency stability: | Max ? ppm | ||||||||||||||||||
Mode: | TX: FM / NFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode RX: AM / FM / NFM / WFM and DV (GMSK: 4.8 kbps voice), Improved DR-mode |
||||||||||||||||||
Channels / memory management: | 1304 (Total) with alpha tags | ||||||||||||||||||
Repeater shift / offset: | ± | ||||||||||||||||||
Power supply: | 5.5-7.4 VDC (Depending on battery pack) or 10-16 VDC external |
||||||||||||||||||
Current drain / power consumption: | RX: 200-450 mA TX: Max 2.5 A |
||||||||||||||||||
Antenna impedance / connector: | 50 ohm / SMA | ||||||||||||||||||
Dimensions (W*H*D): | 58*105*26 mm (2.28*4.13*1.02") | ||||||||||||||||||
Weight: | 255 g (8.99 oz), with BP-271 and antenna) | ||||||||||||||||||
Other features: | D-Star concept. Built-in GPS with logging. CTCSS and DTCS Micro SD card slot. 128*104 dot-matrix display. Voice synthesizer. Voice memory. Voltage indicator. IPX7 waterproof. Twin RX (V/V, U/U & V/U). This special edition model has new "Terminal" and "Access point" modes, which enables connection to the D-Star network through the internet from areas without D-Star repeaters. |
||||||||||||||||||
RECEIVER SECTION | |||||||||||||||||||
Receiver system: | ? conversion superheterodyne | ||||||||||||||||||
Sensitivity: | FM/NFM: 0.18 uV (12 dB SINAD) DV: 0.28 uV (1% BER) |
||||||||||||||||||
Selectivity: | FM 55 dB NFM/DV 50 dB |
||||||||||||||||||
Image rejection: | |||||||||||||||||||
AF output power / speaker: | ? mW at ?% distortion / ? ohm | ||||||||||||||||||
External speaker connector: | |||||||||||||||||||
TRANSMITTER SECTION | |||||||||||||||||||
RF output power: |
|
||||||||||||||||||
Modulation system: | |||||||||||||||||||
Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
||||||||||||||||||
Spurious emissions: | Better than -? dB | ||||||||||||||||||
Microphone impedance / connector: | ? ohm / ?-pin | ||||||||||||||||||
Microphone input level: | ? mV |
