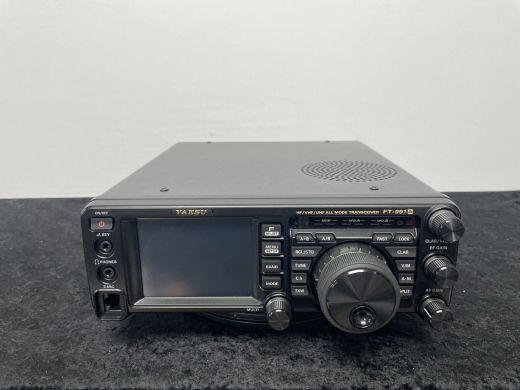

Yaesu FT-991a (USED)
SKU Part Number:
U19111
The product is in good condition including microphone, DC cable, manual, and box.
SPECIFICATIONS
GENERAL
Type:
Amateur HF/VHF/UHF...
Read More
Read More
£949.00
£949.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition including microphone, DC cable, manual, and box.
SPECIFICATIONS
GENERAL | ||||||||||||||||||||||||||||||||||||
Type: | Amateur HF/VHF/UHF transceiver (System fusion concept) | |||||||||||||||||||||||||||||||||||
Frequency range: | TX: 10-160 m + WARC / 6 m / 2 m / 70 cm RX: 0.03-56 / 118-164 / 420-470 MHz |
|||||||||||||||||||||||||||||||||||
Tuning steps: | 5 / 10 / 100 Hz, 1 KHz | |||||||||||||||||||||||||||||||||||
Frequency stability: | ±0.5 ppm @ -10 to +50°C (14 to 122°F), after 1 minute warmup | |||||||||||||||||||||||||||||||||||
Mode: | AM / FM / NFM / SSB / CW / RTTY / PSK / DV (C4FM) | |||||||||||||||||||||||||||||||||||
Channels / memory management: | 99 regular with alpha tags (12 characters) 9 PMS (Band edge pairs) 5 QMB (Quick Memory Banks) Non-volatile EEPROM storage |
|||||||||||||||||||||||||||||||||||
Repeater shift/offset: | 10 m: ±10 KHz to 1 MHz (10 KHz steps) 6 m: ±10 KHz to 4 MHz (10 KHz steps) 2 m: ±10 KHz to 4 MHz (10 KHz steps) 70 cm: ±10 KHz to 10 MHz (10 KHz steps) |
|||||||||||||||||||||||||||||||||||
Power supply: | 13.8 VDC ±15% | |||||||||||||||||||||||||||||||||||
Current drain / power consumption: | RX: 1.8 to 2.2 A TX: Max 23 A |
|||||||||||||||||||||||||||||||||||
Antenna impedance / connector: | 50 ohm (Tuner on, HF: 16.7-150 ohm, 6 m: 25-100 ohm) / Two SO-239 (One SO-239 + one N-jack for Europe) |
|||||||||||||||||||||||||||||||||||
Dimensions (W*H*D): | 229*80*253 mm (9*3.2*10") | |||||||||||||||||||||||||||||||||||
Weight: | 4.3 Kg (9.5 lb) | |||||||||||||||||||||||||||||||||||
Other features: | 3.5" color touchscreen. CTCSS/PL and DCS. High speed spectrum scope. 32-bit IF-DSP. Built-in automatic antenna tuner. USB connector. CAT & GPS connector. |
|||||||||||||||||||||||||||||||||||
RECEIVER SECTION | ||||||||||||||||||||||||||||||||||||
Receiver system: | Double conversion superheterodyne (FM/NFM/C4FM) 1st IF: 69.450 MHz 2nd IF: 450 KHz Triple conversion superheterodyne (AM/SSB/CW) 1st IF: 69.450 MHz 2nd IF: 9 MHz 3rd IF: 24 KHz |
|||||||||||||||||||||||||||||||||||
Sensitivity: | AM (6 KHz - 10 dB S+N/N) 0.5-1.8 MHz: 5 uV (Amp 2 on) 1.8-30 MHz: 1.6 uV (Amp 2 on) 50-54 MHz: 1.25 uV (Amp 2 on) FM (15 KHz - 12 dB SINAD) 28-30 MHz: 0.35 uV (Amp 2 on) 50-54 MHz: 0.35 uV (Amp 2 on) 144-148 MHz: 0.18 uV 430-440 MHz: 0.18 uV SSB/CW (2.4 KHz - 10 dB S+N/N) 1.8-30 MHz: 0.158 uV (Amp 2 on) 50-54 MHz: 0.125 uV (Amp 2 on) 144-148 MHz: 0.11 uV 430-450 MHz: 0.11 uV |
|||||||||||||||||||||||||||||||||||
Squelch sensitivity: | AM/SSB/CW 10-160 m / 6 m: 1 uV (Treshold, Amp2 on) 2 m / 70 cm: 1 uV (Treshold) FM 10 m / 6 m: 0.35 uV (Treshold, Amp2 on) 2 m / 70 cm: 0.125 uV (Treshold) |
|||||||||||||||||||||||||||||||||||
Noise figure: | ||||||||||||||||||||||||||||||||||||
Selectivity: | AM 6 KHz (-6 dB) 15 KHz (-60 dB) FM 12 KHz (-6 dB) 30 KHz (-60 dB) SSB 2.4 KHz (-6 dB) 3.6 KHz (-60 dB) CW/RTTY/PKT 500 Hz (-6 dB) 750 Hz (-60 dB) |
|||||||||||||||||||||||||||||||||||
Image rejection: | HF/6 m: 70 dB 2 m/70 cm: 60 dB |
|||||||||||||||||||||||||||||||||||
AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm | |||||||||||||||||||||||||||||||||||
External speaker connector: | 3.5 mm, 4-8 ohm | |||||||||||||||||||||||||||||||||||
TRANSMITTER SECTION | ||||||||||||||||||||||||||||||||||||
RF output power: |
|
|||||||||||||||||||||||||||||||||||
Modulation system: | AM: Low-level, early stage FM: Variable reactance SSB: Balanced DV/C4FM: 4-level FSK |
|||||||||||||||||||||||||||||||||||
Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
|||||||||||||||||||||||||||||||||||
Spurious emissions: | HF: Better than -50 dB 6 m: Better than -63 dB 2 m/70 cm: Better than -60 dB |
|||||||||||||||||||||||||||||||||||
Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Modular) | |||||||||||||||||||||||||||||||||||
Microphone input level: | ? mV |
