JRC NRD-525 (USED)
SKU Part Number: U19361
JRC NRD-525 General Coverage receiver in very good condition. Coverage 0.09 to 34 MHz. No options installed (extra filters etc). Bright display &...
Read More
Special Price £474.00 £474.00 Regular Price £499.00 £499.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

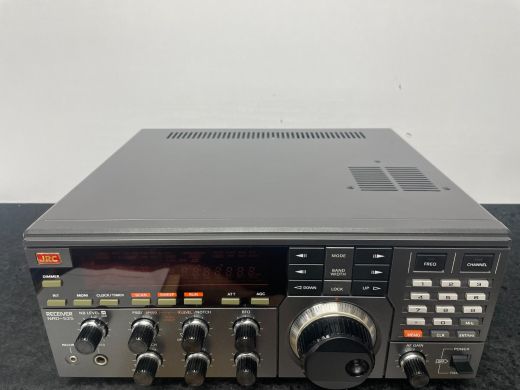

JRC NRD-525 General Coverage receiver in very good condition. Coverage 0.09 to 34 MHz. No options installed (extra filters etc). Bright display & very few case marks. Complete with original Instruction manual and 240 Volt IEC mains cable.

SPECIFICATIONS

GENERAL
Type: HF/VHF/(UHF) receiver
Frequency range: 0.09-34 MHz (34-60 / 114-174 / 423-456 MHz option)
Tuning steps: 10 Hz, 1 / 5 KHz
Frequency stability: ±3 ppm
Mode: AM / FM / SSB / CW / RTTY / FAX
Channels / memory management: 200 regular
RAM storage with lithium battery backup
Power supply: Mains: 100 / 120 / 220 / 240 VAC (3-pin IEC C14 connector)
or 12-16 VDC (2-pin connector)
Current drain / power consumption: Less than 35 VA @ mains
Less than 1.9 A @ 13.8 VDC
Antenna impedance / connector: HF
50 ohm / SO-239
600 ohm / Spring terminals
VHF/UHF (For the CMK-165 converter option)
50 ohm / Two SO-239
Dimensions (W*H*D): 330*130*280 mm (13*5.12*11.02")
Weight: 8.62 Kg (19 lb)
Other features: 24 hr clock/timer. Notch filter. NB. PBS. Attenuator. Dimmer.


RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 70.455 MHz
2nd IF: 455 KHz
Sensitivity: AM (10 dB S/N)
0.09-1.6 MHz: 15 uV
1.6-34 MHz: 2 uV
34-60 MHz: 3 uV
114-174 MHz: 3 uV
425-445 MHz: 3 uV
FM (12 dB SINAD)
1.6-34 MHz: 0.7 uV
34-60 MHz: 1.5 uV
114-174 MHz: 1.5 uV
425-445 MHz: 1.5 uV
SSB/CW/RTTY/FAX (10 dB S/N)
0.09-1.6 MHz: 5 uV
1.6-34 MHz: 0.5 uV
34-60 MHz: 1 uV
114-174 MHz: 1 uV
425-445 MHz: 1 uV
Selectivity: AUX: 12 KHz (-6 dB), default. Optional filters available
Wide: 4 KHz (-6 dB), 10 KHz (-60 dB)
Inter: 2 KHz (-6 dB), 6 KHz (-60 dB)
Narr: 1 KHz (-6 dB), 3 KHz (-60 dB), optional filter required
FM: 12 KHz (-6 dB)

NB! The "Narr" bandwidth is measured with CFL-233 installed
Image rejection:
AF output power / speaker: 500 mW at 10% distortion / 4 ohm
External speaker connector: Phono (RCA)
