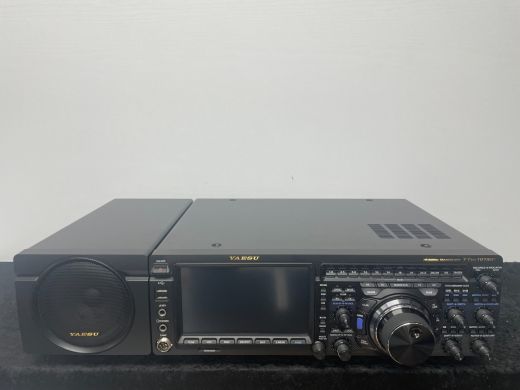

Yaesu FTDX-101MP (USED)
SKU Part Number:
U19385
The product is in good condition including microphone, AC cable and manual. No box.
SPECIFICATIONS
GENERAL
Type:
Amateur HF/VHF...
Read More
Read More
Special Price
£3,419.00
£3,419.00
Regular Price
£3,599.00
£3,599.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition including microphone, AC cable and manual. No box.
SPECIFICATIONS
GENERAL | |||||||||||||||||||||||||
Type: | Amateur HF/VHF transceiver | ||||||||||||||||||||||||
Frequency range: | TX: 10-160 m + WARC and 60 m / 6 m RX: 0.03-75 MHz (The European version also features 4 m/70 MHz) |
||||||||||||||||||||||||
Tuning steps: | 1 / 5 / 10 Hz (SSB/CW) 10 / 100 Hz (AM/FM) |
||||||||||||||||||||||||
Frequency stability: | ±0.1 ppm @ -10 to +60°C (14 to 140°F), after 1 minute warmup | ||||||||||||||||||||||||
Mode: | AM / FM / SSB / CW / RTTY / PSK | ||||||||||||||||||||||||
Channels / memory management: | 99 regular (Can be organized into 6 groups with 20 memories in each) 9 PMS pairs |
||||||||||||||||||||||||
Repeater shift / offset: | ±0-1 MHz in 10 KHz steps (10 m) ±0-4 MHz in 10 KHz steps (6 m) |
||||||||||||||||||||||||
Power supply: | Mains (FPS-101 external PSU with speaker, included as standard) | ||||||||||||||||||||||||
Current drain / power consumption: | RX: 100 to 120 VA TX: Max 720 VA |
||||||||||||||||||||||||
Antenna impedance / connector: | 50 ohm (ATU off)/ Three SO-239 HF: 16.7-150 ohm (ATU on) 6 m: 25-100 ohm (ATU on) |
||||||||||||||||||||||||
Dimensions (W*H*D): | 420*130*355 mm (16.6*5.1*12.7") | ||||||||||||||||||||||||
Weight: | 13.5 Kg (29.8 lb) | ||||||||||||||||||||||||
Other features: | CTCSS/PL. Voice memory. Dimmer. RTTY and PSK encode/decode. SD/SDHC card slot. Clock. 7-inch full color touch TFT. Twin RX. VC-tune units for both main and sub RX included from factory. |
||||||||||||||||||||||||
RECEIVER SECTION | |||||||||||||||||||||||||
Receiver system: | Double conversion superheterodyne 1st IF: 9.005 MHz (Main) - 8.9 MHz (Sub) 2nd IF: 24 KHz (Main/Sub) |
||||||||||||||||||||||||
Sensitivity: | AM (10 dB S+N//N. BW=6 KHz) 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 2 uV (Amp2 on) 50-54 MHz: 1 uV (Amp2 on) 70-70.5 MHz: 2 uV (Amp2 on), Europe only FM (12 dB SINAD. BW=12 KHz. Amp2 on) 28-30 MHz: 0.25 uV 50-54 MHz: 0.2 uV 70-70.5 MHz: 0.25 uV, Europe only SSB/CW (10 dB S/N. BW=2.4 KHz. Amp2 on) 1.8-30 MHz: 0.16 uV) 50-54 MHz: 0.125 uV 70-70.5 MHz: 0.16 uV, Europe only |
||||||||||||||||||||||||
Selectivity: | AM (BW=6 KHz. Width=Center) 6 KHz (-3 dB) 15 KHz (-60 dB) FM (BW=12 KHz. Width=Center) 12 KHz (-6 dB) 25 KHz (-60 dB) SSB (BW=2.4 KHz. Width=Center) 2.4 KHz (-3 dB) 3.6 KHz (-60 dB) CW (BW=500 Hz) 500 Hz (-3 dB) 750 Hz (-60 dB) |
||||||||||||||||||||||||
Image rejection: | HF: 70 dB 6 m: 60 dB |
||||||||||||||||||||||||
AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm | ||||||||||||||||||||||||
External speaker connector: | 3.5 mm, 4-16 ohm | ||||||||||||||||||||||||
TRANSMITTER SECTION | |||||||||||||||||||||||||
RF output power: |
|
||||||||||||||||||||||||
Modulation system: | AM: Low-level, early stage FM: Variable reactance SSB: Balanced |
||||||||||||||||||||||||
Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
||||||||||||||||||||||||
Spurious emissions: | HF: Better than -50 dB 6 m: Better than -66 dB |
||||||||||||||||||||||||
Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector) | ||||||||||||||||||||||||
Microphone input level: | ? mV |
