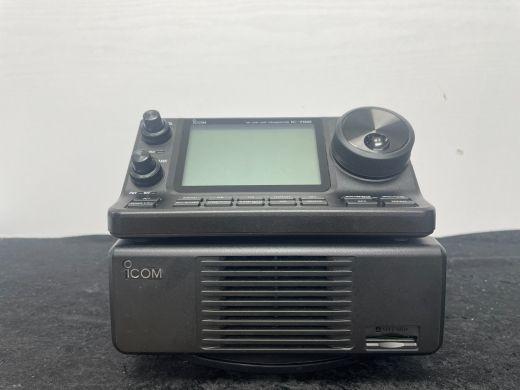

Icom IC-7100 (USED)
SKU Part Number:
U19428
The product is in good condition including manual, microphone, DC cable and box.
SPECIFICATIONS
GENERAL
Type:
Amateur HF/VHF/UHF...
Read More
Read More
Special Price
£854.00
£854.00
Regular Price
£899.00
£899.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition including manual, microphone, DC cable and box.
SPECIFICATIONS
GENERAL | |||||||||||||||||||||||||||||||||||||
Type: | Amateur HF/VHF/UHF transceiver | ||||||||||||||||||||||||||||||||||||
Frequency range: | Europe TX: 10-160 m + WARC / 6 m / 4 m / 2 m / 70 cm RX: 0.03-200 / 400-470 MHz USA TX: 10-160 m + WARC / 6 m / 2 m / 70 cm RX: 0.03-200 / 400-470 MHz |
||||||||||||||||||||||||||||||||||||
Tuning steps: | Down to 1 Hz | ||||||||||||||||||||||||||||||||||||
Frequency stability: | ±0.5 ppm @ 0-50°C (32-122°F), after 5 minutes warmup | ||||||||||||||||||||||||||||||||||||
Mode: | TX: AM / FM / SSB / CW / RTTY / DV (D-Star) RX: AM / FM / WFM / SSB / CW / RTTY / DV (D-Star) |
||||||||||||||||||||||||||||||||||||
Channels / memory management: | 495 regular in 5 banks 3 scan edge pairs 4 call Non-volatile EEPROM storage |
||||||||||||||||||||||||||||||||||||
Repeater shift / offset: | ±0-9.999 MHz in 1 KHz steps | ||||||||||||||||||||||||||||||||||||
Power supply: | 13.8 VDC ±15% | ||||||||||||||||||||||||||||||||||||
Current drain / power consumption: | RX: 0.9 to 1.2 A TX: Max 22 A |
||||||||||||||||||||||||||||||||||||
Antenna impedance / connector: | 50 ohm / Two SO-239 | ||||||||||||||||||||||||||||||||||||
Dimensions (W*H*D): | RF unit: 167*58*225 mm (6.58*2.28*8.86") Controller: 165*64*78 mm (6.5*2.52*3.07") |
||||||||||||||||||||||||||||||||||||
Weight: | RF unit: 2.3 Kg (5.07 lb) Controller: 500 g (1.1 lb) |
||||||||||||||||||||||||||||||||||||
Other features: | CTCSS/PL and DTCS with tone scan. 1750 Hz tone call. CI-V. Voice recorder. Dot-matrix touch-screen controller. IF-DSP. SD memory card slot. Keyer. USB audio in/out. Remote control. SWR meter. |
||||||||||||||||||||||||||||||||||||
RECEIVER SECTION | |||||||||||||||||||||||||||||||||||||
Receiver system: | Double conversion superheterodyne (WFM) 1st IF: 134.732 MHz 2nd IF: 10.7 MHz Triple conversion superheterodyne (AM/FM/SSB/CW/RTTY) 1st IF: 124.487 MHz 2nd IF: 455 KHz 3rd IF: 36 KHz |
||||||||||||||||||||||||||||||||||||
Sensitivity: | AM (10 dB S/N) 0.5-1.8 MHz: 13 uV 1.8-29.9 MHz: 2 uV 50-54/70 MHz: 1 uV 144/430 MHz: 1 uV FM (12 dB SINAD) 28-29.9 MHz: 0.5 uV 50-54/70 MHz: 0.25 uV 144/430 MHz: 0.18 uV WFM (12 dB SINAD) 76-108 MHz: 10 uV SSB/CW/RTTY (10 dB S/N) 1.8-29.9 MHz: 0.15 uV 50-54 MHz: 0.12 uV 70 MHz: 0.15 uV (European version only) 144/430 MHz: 0.11 uV DV (D-Star, 1% BER) 28-29.7 MHz: 1 uV 50-54/70 MHz: 0.63 uV 144/430 MHz: 0.35 uV |
||||||||||||||||||||||||||||||||||||
Selectivity: | AM (BW=6 KHz, filter set to Sharp) 6 KHz (-6 dB) 10 KHz (-40 dB) FM (BW=15 KHz, filter set to Sharp) 12 KHz (-6 dB) 22 KHz (-40 dB) SSB (BW=2.4 KHz, filter set to Sharp) 2.4 KHz (-6 dB) 3.4 KHz (-40 dB) CW (BW=500 Hz, filter set to Sharp) 500 Hz (-6 dB) 700 Hz (-40 dB) RTTY (BW=500 Hz, filter set to Sharp) 500 Hz (-6 dB) 800 Hz (-40 dB) |
||||||||||||||||||||||||||||||||||||
Image rejection: | HF/6 m: 70 dB 2 m/70 cm: 65 dB |
||||||||||||||||||||||||||||||||||||
AF output power / speaker: | 2 W at 10% distortion / 8 ohm | ||||||||||||||||||||||||||||||||||||
External speaker connector: | 3.5 mm, 8 ohm (2-conductor) | ||||||||||||||||||||||||||||||||||||
TRANSMITTER SECTION | |||||||||||||||||||||||||||||||||||||
RF output power: |
NB! The 4 m band is only available for Europe |
||||||||||||||||||||||||||||||||||||
Modulation system: | AM: Digital low power modulation FM: Digital phase modulation SSB: Digital PSN modulation DV: GMSK digital phase modulation |
||||||||||||||||||||||||||||||||||||
Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
||||||||||||||||||||||||||||||||||||
Spurious emissions: | Better than -40 to -60 dB | ||||||||||||||||||||||||||||||||||||
Microphone impedance / connector: | 600 ohm / 8-pin (Modular) | ||||||||||||||||||||||||||||||||||||
Microphone input level: | ? mV |
