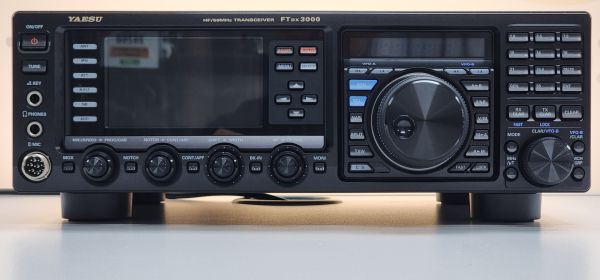

Yaesu FTdx3000 160-6M Multimode 100w Transceiver (used)
SKU Part Number:
u19072
Yaesu FTDX3000 160-6m 100 Watt Transceiver. In good condition. Includes MH-31 hand microphone, DC power cable. No manual or...
Read More
Read More
£935.00
£935.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599Yaesu FTDX3000 160-6m 100 Watt Transceiver. In good condition. Includes MH-31 hand microphone, DC power cable. No manual or box.
SPECIFICATIONS
GENERAL | ||||||||||||||||
Type: | Amateur HF/VHF transceiver | |||||||||||||||
Frequency range: | TX: 10-160 m + WARC / 6 m RX: 0.03-56 MHz |
|||||||||||||||
Tuning steps: | 1 / 10 Hz (AM/SSB/CW) 100 Hz (FM) |
|||||||||||||||
Frequency stability: | ±0.5 ppm @ -10 to +50°C (14 to 122°F), after 1 minute warmup | |||||||||||||||
Mode: | AM / FM / SSB / CW / RTTY / Packet | |||||||||||||||
Channels / memory management: | 99 regular with alpha tags 5 QMB 9 scan edge pairs (PMS) Non-volatile EEPROM storage |
|||||||||||||||
Repeater shift / offset: | 10 m: 0-1 MHz in 50 KHz steps 6 m: 0-4 MHz in 10 KHz steps |
|||||||||||||||
Power supply: | 13.8 VDC ±10% | |||||||||||||||
Current drain / power consumption: | RX: Max 2.1 A TX: Max 23 A |
|||||||||||||||
Antenna impedance / connector: | 50 ohm / Three SO-239 (16.7-150 ohm HF and 25-100 oh 6m with ATU on) |
|||||||||||||||
Dimensions (W*H*D): | 365*115*312 mm (14.37*4.53*12.28") | |||||||||||||||
Weight: | 10 Kg (22.05 lb) | |||||||||||||||
Other features: | Hi-perf crystal roofing filters. 3.5 inch TFT. High speed spectrum scope. 32 bit IF-DSP. 9 MHz IF output. Automatic antenna tuner. CAT control. CTCSS/PL. USB and µ-tune ports. |
|||||||||||||||
RECEIVER SECTION | ||||||||||||||||
Receiver system: | Double conversion superheterodyne 1st IF: 9 MHz 2nd IF: 30 KHz (24 KHz for AM/FM) |
|||||||||||||||
Sensitivity: | AM (BW: 6 KHz, 10 dB S+N/N) 0.5-1.8 MHz: 28 uV 1.8-30 MHz: 2 uV 50-54 MHz: 1 uV FM (BW: 15 KHz, 12 dB SINAD) 28-30 MHz: 0.5 uV 50-54 MHz: 0.35 uV SSB (BW: 2.4 KHz, 10 dB S+N/N) 0.5-1.8 MHz: 4 uV 1.8-30 MHz: 0.16 uV 50-54 MHz: 0.125 uV |
|||||||||||||||
Selectivity: | WIDTH: Center AM 6 KHz (-6 dB) 15 KHz (-60 dB) FM 15 KHz (-6 dB) 25 KHz (-60 dB) SSB 2.4 KHz (-6 dB) 3.6 KHz (-60 dB) CW/RTTY/PKT 500 Hz (-6 dB) 750 Hz (-60 dB) |
|||||||||||||||
Image rejection: | 70 dB (HF) 60 dB (6 m) |
|||||||||||||||
AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm | |||||||||||||||
External speaker connector: | 3.5 mm, 4-8 ohm | |||||||||||||||
TRANSMITTER SECTION | ||||||||||||||||
RF output power: |
|
|||||||||||||||
Modulation system: | AM: Low-level (Early stage) FM: Variable reactance SSB: Balanced |
|||||||||||||||
Max FM deviation (Factory set): | Normal: ±5 KHz Narrow: ±2.5 KHz |
|||||||||||||||
Spurious emissions: | Better than -60 dB (HF) Better than -65 dB (6 m) |
|||||||||||||||
Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector) | |||||||||||||||
Microphone input level: | ? mV | |||||||||||||||
MISCELLANEOUS | ||||||||||||||||
Manufactured: | Japan, 2012-20xx | |||||||||||||||
Additional info: | ||||||||||||||||
Related documents: | User manual (35.7 MB) CAT control reference (210 KB) Preliminary brochure (488 KB) |
