Yaesu FTM-3100 (USED)
SKU Part Number:
U19123

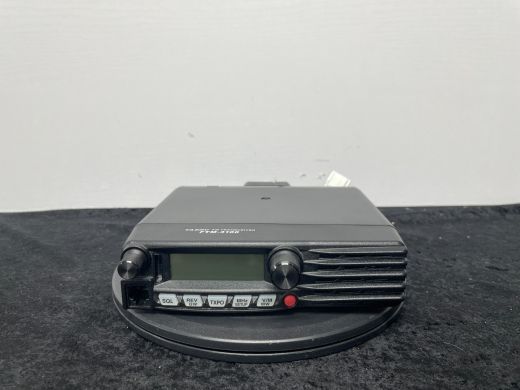

The product is in good condition including microphone, DC cable, manual and box.
SPECIFICATIONS
GENERAL
Type:
Amateur VHF...
Read More
Read More
£110.00
£110.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition including microphone, DC cable, manual and box.
SPECIFICATIONS
GENERAL | |||||||||
Type: | Amateur VHF transceiver | ||||||||
Frequency range: | TX: 144-148 MHz RX: 136-174 MHz |
||||||||
Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz | ||||||||
Frequency stability: | ±10 ppm @ -20 to +60°C (-4 to +140°F) | ||||||||
Mode: | FM / NFM | ||||||||
Channels / memory management: | 199 regular with alpha tags (8 characters) 1 home 10 NOAA weather 10 band edge Priority function |
||||||||
Repeater shift / offset: | ±0 to 150 MHz | ||||||||
Power supply: | 13.8 VDC ±15% ("T"-connector on pigtail) | ||||||||
Current drain / power consumption: | RX: Less than 700 mA TX: Max 15 A |
||||||||
Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||
Dimensions (W*H*D): | 154*43*155 mm (6.1*1.7*6.1") | ||||||||
Weight: | 1.3 Kg (2.86 lb) | ||||||||
Other features: | CTCSS/PL and DCS with tone scan. DTMF. Paging. Weather alert. ARS. Voltmeter. Dimmer. Cloning. |
||||||||
RECEIVER SECTION | |||||||||
Receiver system: | Double conversion superheterodyne 1st IF: 47.25 MHz 2nd IF: 450 KHz |
||||||||
Sensitivity: | 144-148 MHz (12 dB SINAD) FM: 0.2 uV NFM: 0.22 uV |
||||||||
Selectivity: | 12 KHz (-6 dB) 28 KHz (-60 dB) |
||||||||
Image rejection: | |||||||||
AF output power / speaker: | 3 W at 10% distortion / ? ohm | ||||||||
External speaker connector: | 3.5 mm | ||||||||
TRANSMITTER SECTION | |||||||||
RF output power: |
|
||||||||
Modulation system: | Variable reactance | ||||||||
Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
||||||||
Spurious emissions: | Better than -60 dB | ||||||||
Microphone impedance / connector: | 2 Kohm / 6-pin (Modular) | ||||||||
Microphone input level: | ? mV |
