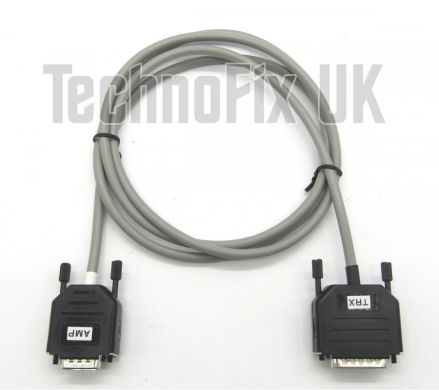

main product photo
15 pin Acom 'S' series band data control cable for Yaesu FTdx3000 FTDX101D/MP
SKU Part Number: ACM15PYSU
ACM15PYSU – 15-Pin Band Data Control Cable for Yaesu to Acom 'S' Series Amplifiers Premium quality shielded control cable – Approx. 1.5m / 4ft...
Read More
£45.95
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

ACM15PYSU – 15-Pin Band Data Control Cable for Yaesu to Acom 'S' Series Amplifiers

Premium quality shielded control cable – Approx. 1.5m / 4ft 10in in length.

This purpose-built cable enables full integration between your Yaesu transceiver and Acom 'S' series linear amplifier, providing automatic band switching, PTT functionality, and synchronized power control — all through a single connection.

  • DE15 male plug connects to the Acom amplifier’s CAT/AUX socket

  • 15-pin D-sub plug connects to the Band Data socket on supported Yaesu transceivers

Compatible Acom 'S' Series Amplifiers:

  • Acom 500S

  • Acom 600S

  • Acom 700S

  • Acom 1200S

  • Acom 2020S

Compatible Yaesu Transceivers:

  • Yaesu FTdx3000

  • Yaesu FTDX101D

  • Yaesu FTDX101MP

Key Features:

  • PTT (Push-To-Talk) Control
    The amplifier switches to transmit and returns to receive automatically with the transceiver.

  • Automatic Band Switching
    The amplifier detects the band selected on the transceiver and switches to the correct band filter accordingly.

  • Remote On/Off Control
    When the transceiver is powered on, the amplifier also powers on and is ready for use. Shutting down the transceiver powers off the amplifier.

⚠️ Important Notes:

  • This cable uses Band Data Control (typically via BCD or voltage levels).

  • Do not use Band Data control cables if your setup includes the ACOM 04AT remote automatic antenna tuner/switch — in this case, the CI-V version must be used instead.

  • Disconnect any existing PTT cable before installing this cable, as this cable already handles PTT internally. Using both can cause malfunction.

For setup instructions and transceiver configuration details, please consult your Acom amplifier's user manual.
