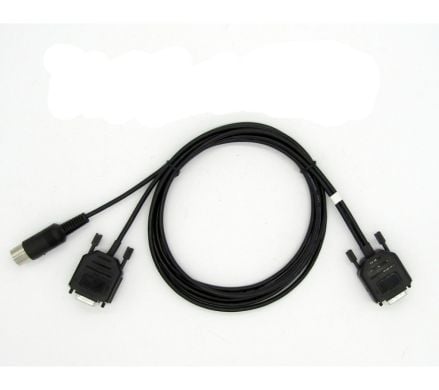

7 pin Acom 'S' series DB9F Cat control cable for Kenwood TS-570 TS-870 TS-890 TS-990 TS-2000
SKU Part Number: ACM7PKWDDB9F
Premium quality screened cable, approximately 1.5 m or 4 ft 10 in in length. The ACM7PKWDDB9F enables compatible Kenwood transceivers to provide CAT...
Read More
£45.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Premium quality screened cable, approximately 1.5 m or 4 ft 10 in in length.

The ACM7PKWDDB9F enables compatible Kenwood transceivers to provide CAT based band control and PTT switching for Acom S series linear amplifiers. It allows fully integrated amplifier operation with automatic band tracking and reliable transmit receive switching, without the need for additional control leads.

The cable is designed for operators who require dependable, hands free amplifier control in fixed station, contesting, or DX environments.

Connections

  • DE15 male plug connects to the CAT or AUX socket on the Acom amplifier

  • 7 pin DIN plug connects to the REMOTE socket on the Kenwood transceiver

  • DB9 female plug connects to the COM port on the Kenwood transceiver

Compatible Acom S Series Amplifiers

  • Acom 500S

  • Acom 600S

  • Acom 700S

  • Acom 1200S

  • Acom 2020S

Compatible Kenwood Transceivers

  • TS-570

  • TS-590

  • TS-870

  • TS-890

  • TS-990

  • TS-2000

Key Features

PTT Control
The amplifier switches to transmit and back to receive in perfect synchronisation with the transceiver.

CAT Based Band Switching
Frequency information from the transceiver allows the amplifier to automatically select the correct operating band.

Clean Station Integration
Combines CAT and PTT control in a single cable, reducing wiring complexity and improving reliability.

Important Notes

  • Disconnect any existing PTT cable before using this lead. An additional PTT connection is not required and may cause incorrect operation.

  • CAT control may need to be enabled or configured in the transceiver menu. Please refer to your Kenwood radio manual.

  • For detailed amplifier configuration and supported functions, consult the Acom amplifier documentation.
