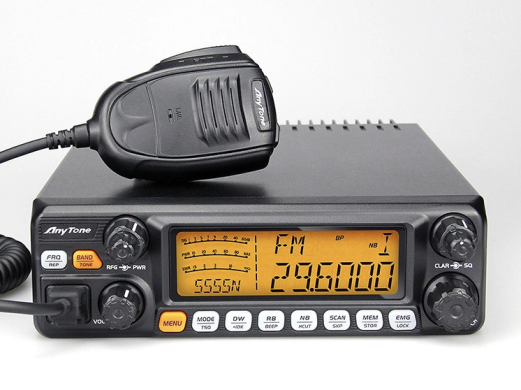

Anytone AT-5555N MKII - 60W SSB High Power 10M Mobile Transceiver
SKU Part Number: AT-5555N II
AnyTone AT5555N II 10-Metre High-Power SSB Radio.   The Anytone AT5555N II is a robust 10-metre band radio designed for radio enthusiasts,...
Read More
Special Price £179.95 Regular Price £199.96
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Product Accessories

AnyTone AT5555N II 10-Metre High-Power SSB Radio.



The Anytone AT5555N II is a robust 10-metre band radio designed for radio enthusiasts, mobile operators, and anyone needing dependable long-range communication. Covering 28.000–29.700 MHz (with optional extended coverage from 25.615–30.105 MHz), it supports FM, AM, USB, and LSB.

Key Features

  • Wide Frequency Coverage — Operates across the 10-metre band with optional extended tuning for added versatility.

  • Multi-Mode Operation — Supports FM, AM, USB, LSB and PA modes to suit a wide range of communication needs.

  • Large, Clear Display — Features a bright LCD that shows frequency and operating status at a glance.

  • High Power Output — Provides strong transmission capability suitable for both local communications and long-distance SSB contacts.

  • Versatile Use — Well-suited for hobbyists, mobile operators, and fixed-station setups.

Applications & Ideal Users

  • Amateur radio enthusiasts looking for an affordable way to explore the 10-metre band and SSB.

  • Mobile installers and vehicle operators needing a reliable communication system.

  • Emergency and community radio groups requiring both AM/FM and SSB capability.

Why Choose the Anytone AT5555N II
The AT5555N II combines classic functionality with the expanded capabilities of SSB, making it an excellent all-around radio. Its broad frequency range, clear interface, and high output power offer dependable performance for everyday communication or long-distance operation. Whether you're upgrading an existing station or building a new setup, this unit delivers flexibility, simplicity, and reliable power.



Frequency:
28.000-29.700MHz (25.615~30.105MHz)

Functions:

◆◆Big LCD displays frequency and all kinds of information
◆◆ FM、AM、USB、LSB、PA mode
◆◆ Frequency Tuning Step 100Hz、1KHz、10KHz、100KHz、1MHz
◆◆ ±1.5KHz CLARLFILER Adjustment
◆◆ Flexible Menu Function and PC Program Software
◆◆ ECHO Function
◆◆ SQ, ASQ Function (FM and AM mode only)
◆◆ RF GAIN Adjustment
◆◆ RF PWR Adjustment
◆◆ SCAN Function
◆◆ Programmable RB Function
◆◆ NB/ANL Function
◆◆ DW DUAL-WATCH Function
◆◆ Offset Frequency Function
◆◆ BEEP Voice Prompt
◆◆ +10KHZ Function
◆◆ SIG、PWR、SWR Function
◆◆ TOT function
◆◆ HI-CUT Function
◆◆ EMG Channel Function
◆◆ SWR Protection
◆◆ Power Supply Voltage Protection
◆◆ Key-Lock Function
◆◆ Six(6) Groups Memory Channel
◆◆ Model Name Customized Function

(below is new function add which different from AT-5555N)
◆◆ CTCSS/DCS Code
◆◆ VOX Function
◆◆ TX and RX Noise Reduction
◆◆ Compatible with electronic and dynamic MIC type
◆◆ WX weather channel
◆◆ Weather Alert

WX channels
WX-01
162.400MHz
WX-02
162.475MHz
WX-03
162.425MHz
WX-04
162.450MHz
WX-05
162.500MHz
WX-06
162.525MHz
WX-07
162.550MHz
Specification
GENERAL
Frequency Range
Frequency Range
Frequency Band
A/B/C/D/E/F/G/H/I
Frequency Tolerance
±5.0ppm
Channel
40channels(programmable)in each band
Frequency Control
Phase-Locked-Loop Synthesizer
Frequency Step
100Hz、1KHz、10KHz、100KHz、1MHz
Frequency Tolerance
±5.00ppm
Input Voltage
13.8V
Microphone
with push-to-talk /UP/DN and coiled cord
Dimensions
305(L)x200(W)x60(H)
Weight
1.75kgs
Antenna Connector
UHF, SO239
Operating Temperature Range
-20℃ to +50℃
TRANSMITTER
Power Output
AM PEP: 60W / FM: 50W / SSB: 60W(PEP)
Drain
10A(with modulation)
Modulation
AM/FM/USB/LSB
Inter-modulation Distortion
SSB: 3rd order, more than -25dB; 5th order, more than -35dB
SSB Carrier Suppression
55dB
Unwanted Sideband
50dB
Frequency Response
AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
Output Impedance
50ohms, unbalanced
RECEIVER
Sensitivity
SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output AM:1.0μV for 10dB(S+N)/N at greater than 1/2watt of audio
output FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output
Adjacent-Channel Selectivity
AM/FM: 60dB SSB: 70dB
Image Rejection
More than 65dB
IF Frequency
AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
RF Gain Control
45dB adjustable for optimum signal reception
Automatic Gain Control(AGC)
Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt.
Squelch
Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV
Audio Output Power
3 watts into 8 ohms
Frequency Response
AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
Built-in Speaker
8 ohms, round
External Speaker(Not Supplied)
8 ohms; disables internal speaker when connected.



Package Includes: Mian Radio Microphone

DC Power cable
Bracket and accessories Downloadable software User manual
