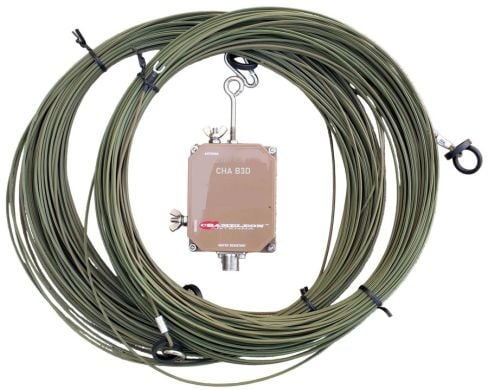

Chameleon CHA B3D Broadband Base Dipole HF Antennas
SKU Part Number: CHA-B3D
The Chameleon CHA B3D Broadband Base Dipole is a simple, rugged and highly flexible HF antenna system designed for operators who want wide band...
Read More
As low as £122.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The Chameleon CHA B3D Broadband Base Dipole is a simple, rugged and highly flexible HF antenna system designed for operators who want wide band coverage without a complicated installation. It is an excellent choice for home stations, restricted spaces, portable operation, emergency communications and anyone needing a discreet antenna that can be adapted to real-world conditions.

Unlike traditional multi-band antennas that may require traps, band switching or regular adjustment, the CHA B3D is designed to provide broadband HF coverage when used with a suitable antenna tuner. The 60 Foot (~18.5m) model covers 80m to 6m, while the 120 Foot (~36.5m) and 146 Foot (~44.5m) versions cover 160m to 6m.

The CHA B3D can be installed as an inverted V, horizontal dipole, low-profile stealth antenna or portable field antenna. Its discreet wire design makes it suitable for locations where visibility matters, including urban gardens, smaller plots or areas where UK council planning considerations may make large, obvious antenna systems less practical.

Built using Chameleon’s tough 16 gauge tinned copper Kevlar PTFE wire, the B3D is designed for long-term outdoor use. It includes a matching transformer with SO-239 connection and is suitable for NVIS, regional and DX communications, depending on installation height, layout and operating conditions.

An antenna tuner is required on most frequencies.

Available Models

Model Coverage Total Length Leg Lengths
CHA B3D 60 3.5 to 54MHz, 80m to 6m 60 Foot (~18.5m) 2 x 30 Foot (~9m)
CHA B3D 120 1.8 to 54MHz, 160m to 6m 120 Foot (~36.5m) 2 x 60 Foot (~18.5m)
CHA B3D 146 1.8 to 54MHz, 160m to 6m 146 Foot (~44.5m) 2 x 73 Foot (~22.5m)



Available Models

Model Coverage Total Length Leg Lengths
CHA B3D 60 3.5 to 54MHz, 80m to 6m 60 Foot (~18.5m) 2 x 30 Foot (~9m)
CHA B3D 120 1.8 to 54MHz, 160m to 6m 120 Foot (~36.5m) 2 x 60 Foot (~18.5m)
CHA B3D 146 1.8 to 54MHz, 160m to 6m 146 Foot (~44.5m) 2 x 73 Foot (~22.5m)

Key Features

  • Broadband HF dipole antenna system
  • Designed for use with an antenna tuner
  • Available in 60 Foot (~18.5m), 120 Foot (~36.5m) and 146 Foot (~44.5m) versions
  • Covers 80m to 6m or 160m to 6m, depending on model
  • Suitable for fixed, portable and emergency communications use
  • Can be installed as an inverted V, horizontal dipole, sloper or low-profile setup
  • Discreet wire design for smaller gardens and less visible installations
  • Useful where planning permission or visual impact may be a concern
  • Suitable for NVIS, regional and DX operation
  • Built using rugged 16 gauge tinned copper Kevlar PTFE wire
  • Weather resistant construction for long-term outdoor deployment
  • SO-239 connection

Specifications

  • Product range: Chameleon CHA B3D Broadband Base Dipole
  • Antenna type: Broadband HF dipole
  • Frequency coverage, CHA B3D 60: 3.5 to 54MHz
  • Frequency coverage, CHA B3D 120 and 146: 1.8 to 54MHz
  • Power rating: 100W SSB, 50W CW, 25W digital modes
  • SWR: Typically 4:1 or less, subject to frequency, layout and installation
  • Connection: SO-239, UHF socket
  • Wire: 16 gauge tinned copper Kevlar PTFE
  • Installation options: Inverted V, horizontal, sloper or low-profile configuration

Installation Notes

For best results, install the CHA B3D as high and as clear of surrounding objects as possible. A single centre support can be used for an inverted V arrangement, making it a practical option for many home and field installations. Performance will vary depending on height, layout, nearby buildings, trees and ground conditions.
