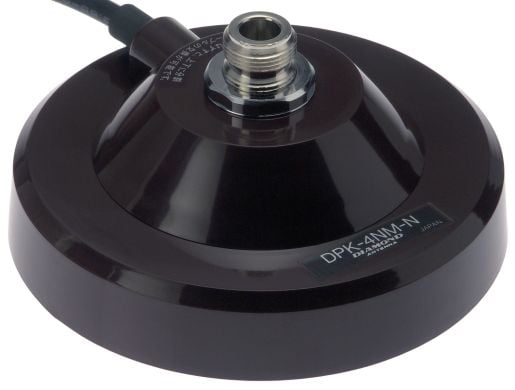

Call 0345 2300 599The Diamond DPK-4NM-N is a premium heavy-duty magnetic antenna mount base for mobile and temporary antenna installations.
This version is fitted with an N Type connector on the radio end of the cable and an N Type socket on the magnetic mount, making it suitable for antennas that require an N Type mounting connection.
The mount features a strong 4in (102mm) diameter magnetic base and is supplied with approximately 13ft (4m) of low-loss 5mm 3.5D-2V coaxial cable. It is rated for use across 25-500MHz, making it suitable for a wide range of VHF and UHF antenna applications where an N Type connection is preferred.
Key Features
- Premium Diamond magnetic antenna mount base
- Heavy-duty magnetic base
- 4in (102mm) diameter magnet
- Approx. 2.2lb (1kg) base weight
- Rated for 25-500MHz
- Supplied with approx. 13ft (4m) low-loss 5mm 3.5D-2V coaxial cable
- N Type connector at the radio end
- N Type socket on the antenna mount
- Suitable for antennas using an N Type connection
- Ideal for mobile and temporary VHF/UHF antenna installations
Connector Arrangement
| Connection Point | Connector |
|---|---|
| Radio end of cable | N Type |
| Magnetic mount / antenna end | N Type |
Specifications
| Specification | Details |
|---|---|
| Brand | Diamond |
| Model | DPK-4NM-N |
| Product type | Magnetic antenna mount base |
| Frequency rating | 25-500MHz |
| Magnetic base diameter | 4in (102mm) |
| Base weight | Approx. 2.2lb (1kg) |
| Cable length | Approx. 13ft (4m) |
| Cable type | 5mm 3.5D-2V low-loss coaxial cable |
| Radio end connector | N Type |
| Mount / antenna connector | N Type |
Important Note
This listing is for the Diamond DPK-4NM-N magnetic mount only.
Please note the connector arrangement carefully: this version has an N Type connector at the radio end and an N Type socket on the mount.
Antenna, radio, adaptors, and other accessories are not included unless stated otherwise.
Please ensure the mount, antenna, connector type, frequency range, and installation surface are suitable before use.
