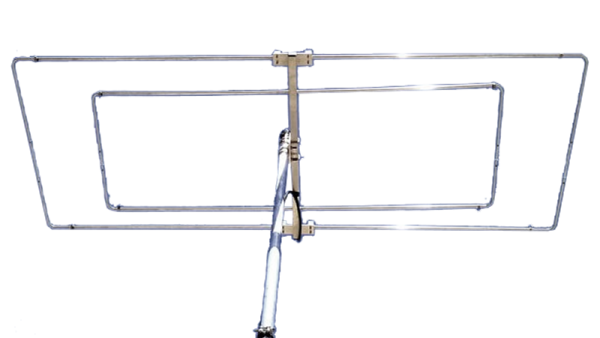

Call 0345 2300 599- The EAntenna 1217MOX is a two band directors and 4 elements with outstanding performance for a boom of only 2.27 meters. Its design, both electrical and mechanical, has been optimized by computer and through extensive field trials, to obtain the best performance among all antennas of its kind available on the market.
- The boom consists of only 1 square 45x2mm stretch for better weight distribution over the wind.
- Mast plate of 250x100mm with 6mm thick with M8 U-bolts for the plate to the mast.
Features of the 1217MOX
EAntenna 1217MOX as the entire antenna consists of two elements Moxon shaped rectangle so we avoid that the length of the antenna is fully extended and even has an antenna beneficiode be very low noise level.
Do not use traps or loading coils or linear loads that may introduce losses and the location and spacing of all the elements have been carefully studied to eliminate negative interactions between bands.
Power is supplied by a single drop of 50 ohm coaxial cable.
Simple and quick, because the elements are attached by bolts to a single position and fixing maximum.
Antenna very solid construction, and weighing 14.2 kg
| SPECIFICATION | 17m | 12m |
|---|---|---|
| Elements per band: | 2 | 2 |
| Frequency Range: | 18,07~18,17 | 24,89~24,99 MHz. |
| Gain: (dBi) | 5,72 | 5,56 dBi * |
| Gain: (dBi) | 11,20 | 11,06 dBi ** |
| F/B: | >26 dB | >13 dB |
| SWR: | 1,1:1~1,2:1 | 1,2:1 ~ 1,2:1 |
| Impedance: | 50 Ohm | |
| Max. Power: | 10 kW. *** | |
| Boom Length: | 2,27m / 7,44' | |
| Turning Radius: | 3,33m / 10,92' | |
| Wind Survival: | ≥ 160kmh / ≥ 100mph | |
| Weight: | 14,2 Kg / 31,3 Pounds |
*** Balun included, there are options of 5 and 10 kW.
