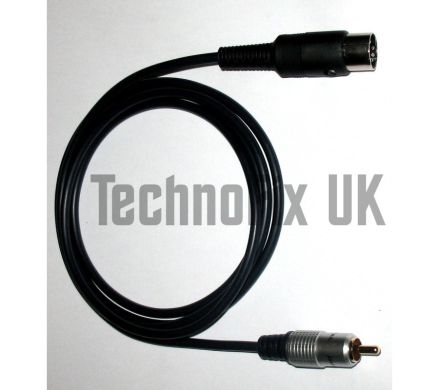

Call 0345 2300 599Premium quality shielded cable – Approx. 1.5 m / 4 ft 10 in in length.
The LINRLA13PICM enables your Icom transceiver to control the transmit/receive switching of your HF linear amplifier. It is essential for amplifiers that do not have RF-sensed switching, and even with RF-switched amplifiers, it eliminates switching delays that can cause missed signals—critical during contests or fast CW operation.
Connections:
-
Phono/RCA plug → Key, Tx, or PTT input on the linear amplifier
-
13-pin DIN plug → ACC socket on the Icom transceiver
Compatible Icom Transceivers
-
IC-703
-
IC-706 (all variants)
-
IC-7000
-
IC-7100
-
IC-7300
-
IC-7410
Compatible Equipment
-
HF linear amplifiers requiring closure-to-ground PTT switching
-
MFJ-1025 / MFJ-1026 noise cancellers
-
Transverters and Tx/Rx antenna switchers requiring low-current DC closure to ground
Key Features
Opto-Isolated Solid State Relay
Provides complete electrical isolation between the transceiver and amplifier while handling up to 500 mA at 48V DC or AC, drawing only 10 mA from the radio.
Reliable TX/RX Switching
Ensures instant, accurate switching of the amplifier, noise canceller, or transverter, eliminating delays and improving operating efficiency.
Versatile Application
Ideal for amplifiers lacking RF-sensing, as well as other low-current switching devices requiring a closure to ground.
⚠️ Important Notes:
-
Verify that the switching output of your transceiver and the input of your amplifier are compatible before use. Incorrect connection can damage the radio, cable, or amplifier.
-
Maximum ratings of the relay:
-
Switching voltage: 60V DC/AC
-
Continuous load current: 500 mA
-
Isolation: 2.5 kV for 1 minute
-
-
Consult your transceiver and amplifier manuals to ensure safe installation.
