Call 0345 2300 599The mAT-10R is a compact remote automatic antenna tuner designed for QRP HF operation from 1.8 to 30MHz. It is compatible with a wide range of common QRP HF transceivers and may also be used with higher power HF transceivers, provided the RF input to the tuner is limited to no more than 10W.
A key benefit of the mAT-10R is its single-cable power and control system. The tuner is powered through the coaxial feedline and must be used with a suitable Bias-Tee unit. This means no separate control or power cables are required, making installation neater and allowing the tuner to be placed remotely near the antenna feed point.
As a remote tuner, the mAT-10R can help reduce feedline losses by matching the antenna at the antenna end rather than back at the transceiver. It also offers flexible antenna connections, with both a BNC coaxial antenna connector and banana jack sockets for direct wire antenna and ground connections.
With 16,000 memory locations, fast tuning times and support for a broad range of antenna types and impedances, the mAT-10R is a highly practical option for portable, temporary or compact HF stations.
Important note, the mAT-10R uses magnetic latching relays. Do not place the tuner near strong magnets, especially magnetic brackets, as this may affect operation and cause malfunction.
Key Features
- Remote automatic antenna tuner for QRP HF operation
- Frequency coverage from 1.8 to 30MHz
- Maximum RF input power of 10W
- Suitable for common QRP HF transceivers
- Can be used with higher power radios if input to tuner is limited to 10W
- Powered and controlled via a single coaxial feedline
- Must be used with a suitable Bias-Tee
- No separate power or control cables required
- Ideal for remote placement near the antenna feed point
- Helps reduce feedline losses by matching at the antenna end
- BNC coaxial antenna connector
- Banana jack sockets for wire antenna and ground
- 16,000 memory locations
- Fast tuning, 0.1 seconds from memory, up to 10 seconds full tuning
- Compact and lightweight design

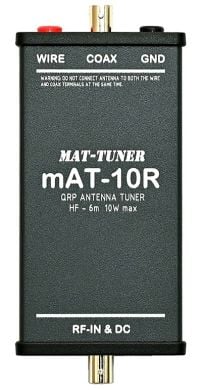

Connections
- Top panel COAX: BNC coaxial antenna connector
- Top panel WIRE: Red banana jack for wire antenna
- Top panel GND: Black banana jack for ground connection
- Bottom panel RF-IN and DC: RF and DC input via single coaxial feedline
Technical Specifications
- Frequency range: 1.8 to 30MHz
- Maximum power: 10W, SSB and digital modes
- Tuning power: 3 to 6W
- Tuning time: 0.1 seconds memory tuning, up to 10 seconds full tuning
- Memory channels: 16,000 memory locations
- Antenna connectors: BNC coaxial and banana jacks for wire antenna
- Power supply: DC 7 to 14V via Bias-Tee, 0.1A maximum
- Power and control: Via single coaxial feedline
- Relay type: Latching relays
- Operating temperature: -10°C to +60°C
- Dimensions: 142 x 67 x 28mm
- Weight: 200g
