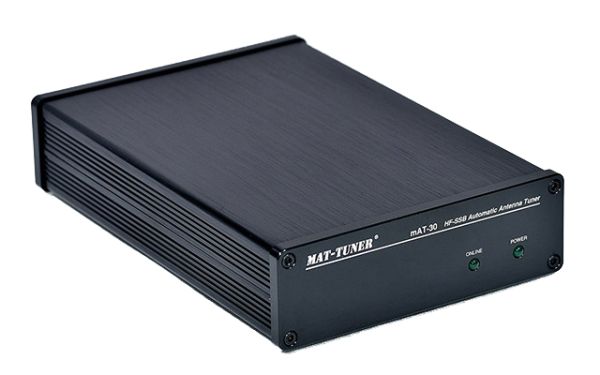

The mAT-30 is an automatic tuner intended for use with modern YAESU transceivers. It works with some YAESU transceiver that supports an FC-30 , FC-40 or FC-50 YAESU tuner; a partial list of compatible units includes: FT-100,FT-857D,FT-897D,FT-450D,FT-891,FT-950,FT-991,FT-991A, FTDX10, FTDX-3000, FT-710. The operating is the same as the method of the YAESU tuner, which is simple and convenient.
At present, the mAT-30 does not support FT-817/818. If you operate them, you can choose another tuner: mAT-10, which is specially designed for QRP transceivers and perfectly supports FT-817/ 818 and other QRP devices.
The mAT-30 connects to the transceiver via its CAT/LINEAR jack to control the tuning cycle, the transceivers Tune button controls the tuner. The CAT/LINEAR jack also powers the tuner, so it requires no external power supply. Tuning is performed when the TUNE button is pushed on the front of the transceiver and held for one second.
The mAT-30 can work within the range of 1.6MHz to 54MHz, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered, including the built-in tuners on many radios.
The mAT-30 has 16,000 frequency memories. When tuning on or near a previously tuned frequency, the mAT-30 uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner runs a full tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this manner, the mAT-30 "learns" as it is used, adapting to the bands and frequencies as it goes.
The mAT-30's control cable mAT-CY provides control signals between YAESU transceiver and the tuner. As the figure shows, the control cable have two mini-DIN 8-pin plugs. mAT-CY can also be used by mAT-10 to link YAESU FT-817/818. Push and hold the transceiver's [TUNER] button for two seconds to start the tuning process. Push [TUNER] quickly to bypass the tuner.
The supplied transceiver control cable is 50 centimeters long. If it is desired that the mAT-30 is positioned farther from the transceiver than this cable length allows, a custom cable will need to be constructed. This can be accomplished in two ways: Cut the supplied cable and solder a jumper wire between all the connections, or purchase new connectors and cable to construct a custom- length control cable from scratch.
(NOTE: The pictures on this page are for reference only. The actual products received are the basis.)
