- Manual operation or operation via PC/tablet/smartphone
- Suitable for almost every rotor type
- Numerous protective functions
- Compact aluminum housing
- LC display for direction indication

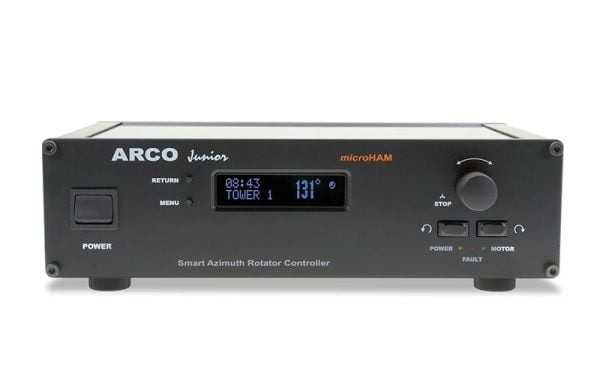

The ARCO Junio from microHAM is a universal control unit for almost all types of antenna rotatators. It can be operated manually via buttons on the front or conveniently via computer, tablet or smartphone. A USB-B and a traditional serial interface (RS-232) are available, but there is also a network connection (Ethernet, 100-BaseTX) to enable integration into the existing station.
A separate, external 48-volt power supply is required to supply the motor driver of the ARCO Jr. with direct current; it is best to order this directly here. The controller logic itself requires a power supply with an external 13.5 V DC power supply, see 'Accessories'.
The optional switching power supplies provide reliable power for nearly all rotators on the market. The 90W model (48VDC/1.87A) is suitable for most rotators, such as Yaesu and Prosistel 61D, while the 220W version (48VDC/4.6A) is perfect for high-power models like Prosistel 71D, DXE RT4500, and M2 Orion.
All rotor settings, including compensation for power losses in the motor cables, are menu-driven via VNC without having to open the housing and change the internal cabling.
The built-in VNC server provides an exact copy of the regular ARCO screen on your computer monitor, tablet or smartphone and allows full control of the rotator and the antenna switches controlled by the ARXC relay modules directly from the computer or mobile device, whether you are connected to ARCO Jr. locally or via the internet.
The firmware offers numerous additional protective functions and self-explanatory error messages make it easier to detect and rectify problems if necessary.
| Product Name | ARCO Junior |
|---|---|
| Brand | microHAM |
| Max. Power | 90 W |
| Size W x H x D | 265 x 82 x 150 mm |
