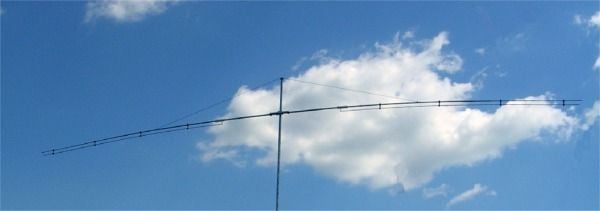

Call 0345 2300 599The OptiBeam OB1-4030 is a high-performance dual-band rotatable dipole covering the 40m and 30m amateur bands.
Designed for operators who want serious performance on two important low HF bands without installing separate antennas, the OB1-4030 combines excellent electrical efficiency with OptiBeam’s well-known mechanical quality. It is built as a 1 element rotary dipole and provides reliable coverage for both 40m and 30m from a single antenna system.
OptiBeam antennas are designed to offer high efficiency, optimum band coverage, consistent gain, stable radiation patterns, and low SWR. The OB1-4030 includes a high-power balun with a UHF female / SO-239 connection for standard 50 ohm coaxial cable.
Key Features
- Dual-band rotatable dipole for 40m and 30m
- Covers two popular low HF amateur bands
- 1 element rotary dipole design
- High-efficiency OptiBeam antenna technology
- Designed for low SWR and strong band coverage
- Stable electrical performance in varying weather conditions
- High-power 5kW rating
- High-power balun included
- UHF female / SO-239 feed connection
- Aluminium tubing element construction
- Robust mechanical design for long-term fixed installation
- Stainless steel hardware and high-quality materials throughout
OptiBeam Mechanical Quality
OptiBeam antennas are known for their strong mechanical design. The OB1-4030 uses carefully shaped element holders, robust tubing, and solid element transitions to provide excellent stability across the whole antenna system.
The elements are designed to remain properly aligned and secured against torsion, with minimal sag and a clean finished appearance. This makes the OB1-4030 a strong choice for operators who want a serious long-term installation rather than a compromise antenna.
Specifications
| Specification | Details |
|---|---|
| Brand | OptiBeam |
| Model | OB1-4030 |
| Product type | Dual-band HF rotatable dipole |
| Antenna type | 1 element rotary dipole |
| Band coverage | 40m and 30m |
| Element material | Aluminium tubing |
| Power rating | 5,000W |
| Longest element | 14.70m / 48.23ft |
| Turning radius | 7.35m / 24.11ft |
| Wind surface area | 0.45 sq m / 4.9 sq ft |
| Wind load | 363N at 130km/h |
| Feedpoint impedance | 50 ohms |
| Feedline connection | UHF female / SO-239 |
| Weight | 14kg / 30.86lb |
| Quantity | Sold individually |
Typical Uses
- Fixed station HF operation
- 40m and 30m DXing
- Low-band contesting
- Operators wanting a rotatable dipole for 40m and 30m
- Stations where separate 40m and 30m antennas are not practical
- Permanent mast or tower installations
- High-power HF station setups
Installation Notes
The OB1-4030 is designed for fixed installation on a suitable mast or tower. Please ensure that your mast, rotator, mounting hardware, and support structure are suitable for the antenna’s size, weight, turning radius, and wind load.
As with any HF antenna, final performance will depend on installation height, surrounding structures, feedline quality, grounding, and correct adjustment.
Important Note
This listing is for the OptiBeam OB1-4030 antenna only. Mast, rotator, coaxial cable, mounting hardware, and other station accessories are not included unless stated otherwise.
Please check that your installation site, support system, and rotator are suitable before ordering.
