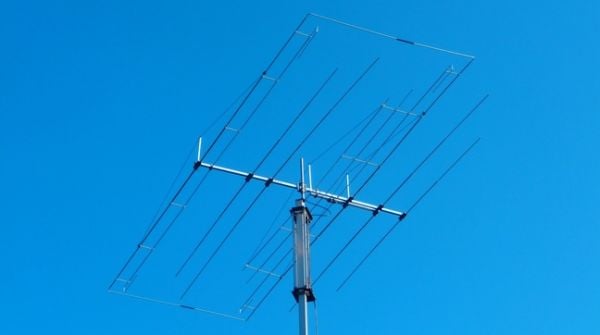

Call 0345 2300 599The OptiBeam OB10-5 is a compact and highly efficient 10 element, 5 band mini Yagi covering the 20m, 17m, 15m, 12m, and 10m amateur bands.
Described by OptiBeam as “the most compact and efficient trap-less fiveband tubular element Yagi in the world”, the OB10-5 is designed for operators who want serious multi-band HF performance from a compact rotatable antenna system.
With a boom length of just 3.80m and a turning radius of 4.38m, the OB10-5 offers excellent performance for stations where space, wind loading, and installation size need to be kept under control. It uses a single 50 ohm coax feedline, making it a clean and practical solution for fixed-station HF operation.
Key Features
- Compact 10 element, 5 band mini Yagi
- Covers 20m, 17m, 15m, 12m, and 10m
- Trap-less tubular element design
- Single 50 ohm coax feedline
- Compact 3.80m boom length
- 4.38m turning radius
- High gain across all five supported bands
- Strong front-to-back performance
- Ideal for DXing, contesting, and fixed-station HF operation
- Efficient multi-band design for stations with limited antenna space
Band Coverage and Performance
| Band | Gain dBd | Gain dBi | F/B Ratio |
|---|---|---|---|
| 20m | 4.0dBd | 11.3dBi | 23dB |
| 17m | 4.2dBd | 11.8dBi | 12dB |
| 15m | 4.1dBd | 11.8dBi | 12dB |
| 12m | 4.5dBd | 12.2dBi | 14dB |
| 10m | 4.0dBd | 12.5dBi | 27dB |
VSWR
| Band | Frequency Points | VSWR |
| 20m | 14.00 / 14.19 / 14.35MHz | 1.5 / 1.2 / 1.5 |
| 17m | 18.07 / 18.13 / 18.17MHz | 1.3 / 1.1 / 1.3 |
| 15m | 21.00 / 21.25 / 21.45MHz | 1.5 / 1.2 / 1.4 |
| 12m | 24.89 / 24.94 / 24.99MHz | 1.3 / 1.2 / 1.3 |
| 10m | 28.00 / 28.50 / 29.00MHz | 1.3 / 1.2 / 1.4 |
Specifications
| Specification | Details |
| Brand | OptiBeam |
| Model | OB10-5 |
| Product type | 10 element 5 band mini Yagi |
| Supported bands | 20m / 17m / 15m / 12m / 10m |
| Elements | 10 |
| Active elements | 2 / 2 / 2 / 2.5 / 2.5 |
| Maximum element length | 7.94m |
| Boom length | 3.80m |
| Turning radius | 4.38m |
| Feedline | 1 x 50 ohm coax |
| Weight | 22.50kg |
| Wind loading projected area | 0.83 sq m / 8.88 sq ft |
| Wind load at 130km/h | 728.49N |
| Wind load area at 130km/h | 0.91 sq m / 9.79 sq ft |
Typical Uses
- Fixed-station HF operation
- Multi-band DXing
- HF contesting
- Compact beam installations
- Stations needing 20m to 10m coverage from one antenna
- Operators wanting a trap-less multi-band Yagi
- Installations where a larger full-size HF beam is not practical
Installation Notes
The OB10-5 is designed for fixed installation on a suitable mast or tower. Please ensure that your mast, rotator, mounting hardware, and support structure are suitable for the antenna’s weight, turning radius, element length, and wind load.
As with any HF beam, final performance will depend on installation height, surrounding structures, feedline quality, grounding, and correct assembly.
Important Note
This listing is for the OptiBeam OB10-5 antenna only. Mast, rotator, coaxial cable, mounting hardware, and other station accessories are not included unless stated otherwise.
Please check that your installation site, rotator, and support structure are suitable before ordering.
