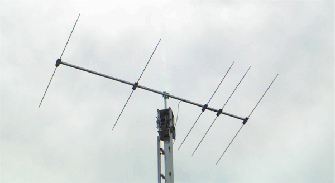

Call 0345 2300 599The OptiBeam OB5-6 is a compact, high-performance 5 element monoband Yagi designed for the 6m amateur band.
Built for operators who want serious directional performance on 50MHz, the OB5-6 provides strong gain, excellent front-to-back performance, and low VSWR across the key part of the 6m band. With a 4.44m boom length, 2.75m turning radius, and 9kg weight, it is a practical choice for fixed-station VHF installations.
The antenna uses a single 50 ohm coax feedline, keeping installation straightforward while delivering effective 6m performance for DXing, contesting, and weak-signal operation.
Key Features
- 5 element monoband Yagi for 6m
- Designed for the 50MHz amateur band
- 8.8dBd / 16.7dBi gain
- 22dB front-to-back ratio
- Low VSWR across the 6m band
- Single 50 ohm coax feedline
- 4.44m boom length
- 2.75m turning radius
- Lightweight 9kg construction
- Ideal for 6m DXing, contesting, and weak-signal work
- Suitable for fixed mast or tower installations
Band Performance
| Band | Gain dBd | Gain dBi | Front-to-Back Ratio |
|---|---|---|---|
| 6m | 8.8dBd | 16.7dBi | 22dB |
VSWR Performance
| Band | Frequency Points | VSWR |
| 6m | 50.000 / 50.120 / 50.300MHz | 1.2 / 1.0 / 1.2 |
Specifications
| Specification | Details |
| Brand | OptiBeam |
| Model | OB5-6 |
| Product type | 5 element 6m monoband Yagi |
| Antenna type | Directional antenna |
| Design | Yagi |
| Supported band | 6m |
| Number of elements | 5 |
| Feedline | 1 x 50 ohm coax |
| Maximum element length | 2.96m |
| Boom length | 4.44m |
| Turning radius | 2.75m |
| Wind load at 130km/h | 170N |
| Wind surface area | 0.21 sq m / 2.25 sq ft |
| Weight | 9kg |
Typical Uses
- 6m DXing
- 50MHz weak-signal operation
- 6m contesting
- Fixed-station VHF operation
- Operators wanting a dedicated high-performance 6m beam
- Permanent mast or tower installations
- Stations needing compact but effective 6m directional performance
Installation Notes
The OB5-6 is designed for fixed installation on a suitable mast or tower. Please ensure that your mast, rotator, mounting hardware, and support structure are suitable for the antenna’s size, weight, turning radius, and wind load.
As with any directional antenna, final performance will depend on installation height, surrounding structures, feedline quality, grounding, and correct assembly.
Important Note
This listing is for the OptiBeam OB5-6 antenna only. Mast, rotator, coaxial cable, mounting hardware, and other station accessories are not included unless stated otherwise.
Please check that your installation site, rotator, and support structure are suitable before ordering.
