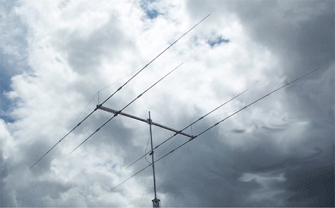

Call 0345 2300 599The OptiBeam OB4030 is a high-performance 4 element dual-band HF Yagi covering the 40m and 30m amateur bands.
Designed for serious low-band operators, the OB4030 provides directional performance on two highly useful HF bands from a single antenna system. With 2 active elements on each band, a single 50 ohm coax feedline, and strong gain and front-to-back performance, it is ideal for DXing, contesting, and fixed-station operation on 7MHz and 10MHz.
With a 5.6m boom, 14.6m maximum element length, and 7.8m turning radius, the OB4030 is a substantial antenna intended for permanent mast or tower installation.
Key Features
- 4 element dual-band HF Yagi
- Covers 40m and 30m
- Designed for the 7MHz and 10MHz amateur bands
- 2 active elements per band
- Strong gain on both supported bands
- Good front-to-back performance
- Single 50 ohm coax feedline
- Low VSWR after correct installation and adjustment
- 5.6m boom length
- 14.6m maximum element length
- 7.8m turning radius
- 50kg antenna weight
- Ideal for 40m and 30m DXing
- Suitable for permanent mast or tower installations
Band Performance
| Band | Gain dBd | Gain dBi | Front-to-Back Ratio |
|---|---|---|---|
| 40m | 3.6dBd | 10.8dBi | 15dB |
| 30m | 3.9dBd | 11.3dBi | 22dB |
VSWR Performance
| Band | Frequency Points | VSWR |
| 40m | 7.00 / 7.05 / 7.15MHz | 1.6 / 1.1 / 1.8 |
| 30m | 10.100 / 10.125 / 10.150MHz | 1.3 / 1.1 / 1.2 |
Specifications
| Specification | Details |
| Brand | OptiBeam |
| Model | OB4030 |
| Product type | 4 element 40/30m dual-band HF Yagi |
| Antenna type | Directional antenna |
| Design | Yagi |
| Supported bands | 40m / 30m |
| Number of elements | 4 |
| Active elements | 2 / 2 |
| Feedline | 1 x 50 ohm coax |
| Maximum element length | 14.6m |
| Boom length | 5.6m |
| Turning radius | 7.8m |
| Wind load at 130km/h | 600N |
| Wind surface area | 0.74 sq m / 8.12 sq ft |
| Weight | 50kg |
Typical Uses
- 40m and 30m DXing
- Low-band HF operation
- Fixed-station HF installations
- Contest stations
- Operators wanting directional performance on 7MHz and 10MHz
- Permanent mast or tower installations
- Stations needing a dual-band low-HF beam with single-feedline convenience
Installation Notes
The OB4030 is a large HF Yagi designed for fixed installation on a suitable mast or tower. Please ensure that your mast, tower, rotator, mounting hardware, and support structure are suitable for the antenna’s size, weight, turning radius, maximum element length, and wind load.
As with any HF Yagi, final performance will depend on installation height, surrounding structures, feedline quality, grounding, and correct assembly.
Important Note
This listing is for the OptiBeam OB4030 antenna only. Mast, rotator, coaxial cable, mounting hardware, and other station accessories are not included unless stated otherwise.
Please check that your installation site, rotator, and support structure are suitable before ordering.
