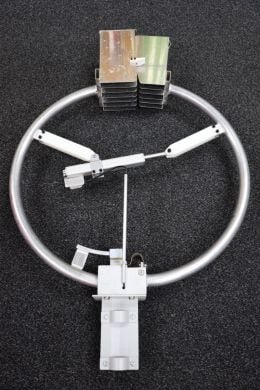

Ciro Mazzoni Baby Loop in good condition with version 2 controller, power supply, keypad, and mast clamps. No box, collection only.
Continuous coverage from 6.6MHz to 29.8MHz
The smallest and most popular selling loop-antenna. Diameter is only 1m (ca. 38 inch). For this antenna space is not a problem: on the balcony, on the roof (as long as it's 5m away anything that can interact). The gapless frequency-range is 6,9 up to 29,7 MHz. It comes ready to use with mast clamp.
Ciro Mazzoni loops are made of pure aluminum and even the Baby-Loop uses 50mm ( 2 inch) diameter of tubing. Because of the large surface area, there is less loss of gain and both ends are welded onto the socket, with zero screw connections so no contact resistance.
The tuning capacitor on both loops is not a simple variable capacitor but a huge variable plate capacitor fabricated out of aluminum, with an air-dielectric. Both plates are also welded directly to the loop and are virtually indestructible on high power. The distance between the plates is 14mm (ca. 1/2 inch) on the smallest Baby-Loop antenna.
A weather resistant actuator opens or closes the loop and thus tunes the plate capacitor (SWR tuning).
Capacitance can be varied by the motor and can be adjusted to achieve best SWR via a control unit in your shack. In spite of their compact size, the antennas are resonant in a wide frequency-range - do you know of any antenna which has a diameter of just one meter (ca. 38 inch) but a frequency range of 40m-10m without gaps?? Check out the new Baby & Midi-Loops from Ciro-Mazzoni.
The automatic control unit has a tuning circuit installed and is operated via a small keypad: just enter the desired frequency, wait a few seconds for automatic tuning of the antenna and go. No trying, no lost notes on settings, no checking with the SWR meter. The current frequency and SWR is shown on the LCD display. Maximum power load is 250W continuous with the automatic control unit.
ML&S are the sole distributors of Ciro Mazzoni Loops for UK & Ireland.
TROUBLE SHOOTING GUIDE - CLICK HERE. PDF MANUAL - CLICK HERE
Mechanical Spec:
Loop Diameter:
Weight:
Tube Diameter:
Wind Exposure:
Mast Diameter:
Material:
Electrical Spec:
Front Gain:
Side Gain:
VSWR:
Max Power:
Impedance:
Bandwidth:
Efficiency (1/2 Wave):
1m
16Kg
50mm
0.25mq
From 48mm to 60mm
Aluminium
6db
25db
1.3:1
450w up to 21MHz
1KW from 22MHz to 29.8MHz
50 Ohm with Gamma Match
4KHz @ 7.0MHZ
6K @ 14MHz
12KHz @ 21MHz
20KHz @ 28MHz
-4db @ 7.0MHz
-0.3db @ 28Mhz
