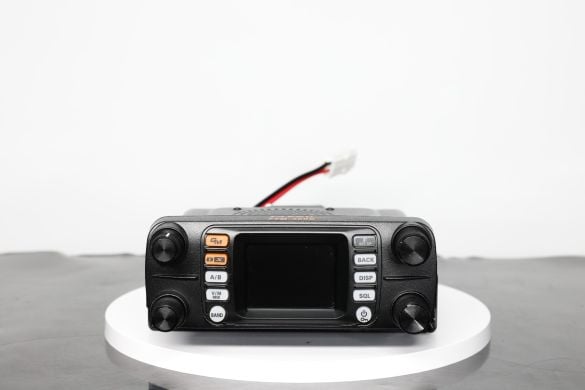

Call 0345 2300 599Yaesu FTM-300DE in good condition with original box, manual, hand mic, DC power cable, and mobile mounting bracket for head & body.
SPECIFICATIONS
| GENERAL | |||||||||||||
| Type: | Amateur VHF/UHF transceiver | ||||||||||||
| Frequency range: | Europe TX: 144-146 / 430-440 MHz RX: 108-1000 MHz |
||||||||||||
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz | ||||||||||||
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) | ||||||||||||
| Mode: | TX: FM / NFM / DV (System Fusion) RX: AM / FM / NFM / DV (System Fusion) |
||||||||||||
| Channels / memory management: | 999 regular with alpha tags (16 characters) 5 home 50 scan edge pairs (PMS) Non-volatile EEPROM storage |
||||||||||||
| Repeater shift/offset: | ±0 to 99.95 MHz in 50 KHz steps | ||||||||||||
| Power supply: | 13.8 VDC | ||||||||||||
| Current drain / power consumption: | RX: 500 mA TX: Max 11 A |
||||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||||||
| Dimensions (W*H*D): | Transceiver: 139*42*132 mm (5.47*1.66*5.2") Control head: 139*53*18 mm (5.47*2.09*0.7") |
||||||||||||
| Weight: | Total: 1.1 Kg (2.43 lb) | ||||||||||||
| Other features: | CTCSS/PL. 2" QVGA color TFT. Built-in Bluetooth and GPS. Wires-X. Twin RX (V+V, U+U, V+U, U+V) with simultaneous DV RX on both receivers. 1200/9600bd APRS modem. Voice recording. Band scope. AMS. Micro-SD slot. 1750 Hz repeater tone. VOX. Clock/timer. Detachable control head. |
||||||||||||
| RECEIVER SECTION | |||||||||||||
| Receiver system: | Double conversion superheterodyne 1st IF: 58.05 MHz (A band) - 57.15 MHz (B band) 2nd IF: 450 KHz |
||||||||||||
| Sensitivity: | AM (10 dB S/N) 108-137 MHz: 0.8 uV 300-336 MHz: 0.8 uV FM (12 dB SINAD) 137-150 MHz: 0.2 uV 150-174 MHz: 0.25 uV 174-222 MHz: 0.3 uV 222-300 MHz: 0.25 uV 336-420 MHz: 0.25 uV 420-520 MHz: 0.2 uV 800-900 MHz: 0.4 uV 900-1000 MHz: 0.8 uV DV/C4FM (BER 1%) 2 m/70 cm: 0.19 uV |
||||||||||||
| Selectivity: | AM/FM 12 KHz (-6 dB) 30 KHz (-60 dB) |
||||||||||||
| Image rejection: | |||||||||||||
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm | ||||||||||||
| External speaker connector: | 3.5 mm | ||||||||||||
| TRANSMITTER SECTION | |||||||||||||
| RF output power: |
|
||||||||||||
| Modulation system: | FM: Variable reactance DV: 4FSK/C4FM |
||||||||||||
| Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
||||||||||||
| Spurious emissions: | Better than -60 dB | ||||||||||||
| Microphone impedance / connector: | 2 Kohm / 6-pin modular | ||||||||||||
| Microphone input level: | ? mV | ||||||||||||
