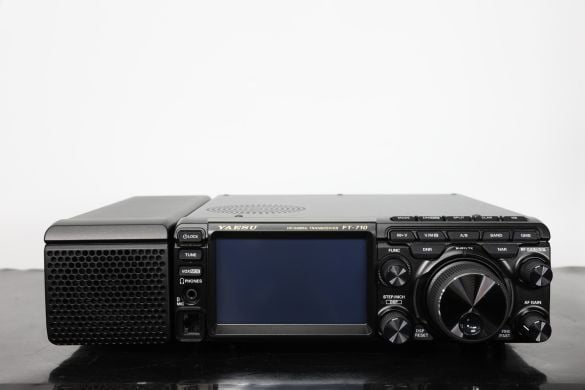

Yaesu FT-710AESS (USED)
SKU Part Number:
U21609
The product is in good condition, including microphone, DC cable, manual, external speaker and...
Read More
Read More
£799.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition, including microphone, DC cable, manual, external speaker and box.
SPECIFICATIONS
| GENERAL | |||||||||||||||||||||
| Type: | Amateur HF/VHF transceiver | ||||||||||||||||||||
| Frequency range: | TX: 10-160 m + WARC / 6 m (And 4 m for Europe) RX: 0.03-75 MHz |
||||||||||||||||||||
| Tuning steps: | 1 / 5 / 10 / 20 Hz (AM/SSB/CW) 100 Hz (FM) |
||||||||||||||||||||
| Frequency stability: | ±0.5 ppm @ 0 to 50°C (32 to 122°F), after 1 minute warmup | ||||||||||||||||||||
| Mode: | AM / FM / SSB / CW | ||||||||||||||||||||
| Channels / memory management: | 99 regular with alpha tags (12 characters) 5 QMB (Expandable to 10) 9 scan edge pairs (PMS) Non-volatile EEPROM storage |
||||||||||||||||||||
| Repeater shift / offset: | ±0-1 MHz in 10 KHz steps (10 m) ±0-4 MHz in 10 KHz steps (6 m) |
||||||||||||||||||||
| Power supply: | 13.8 VDC ±15% (4-pin connector) | ||||||||||||||||||||
| Current drain / power consumption: | RX: 1.8 to 2.2 A TX: Max 21 A |
||||||||||||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 (16.7-150 ohm HF and 25-100 ohm 6 m with ATU on) |
||||||||||||||||||||
| Dimensions (W*H*D): | 239*80*247 mm (9.41*3.15*9.72") | ||||||||||||||||||||
| Weight: | 4.5 Kg (9.92 lb) | ||||||||||||||||||||
| Other features: | CTCSS/PL. 4.3" color TFT. 3D spectrum. DVI display port. Width & bandwidth shift. Contour feature. SD card slot. Voice recording. AESS (Acoustic Enhanced Speaker System). |
||||||||||||||||||||
| RECEIVER SECTION | |||||||||||||||||||||
| Receiver system: | Direct sampling superheterodyne / SDR technology IF: 18 KHz (SSB/CW) - 24 KHz (AM/FM) |
||||||||||||||||||||
| Sensitivity: | AM (10 dB S+N/N, 6 KHz BW) 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 2 uV 50-54 MHz: 1 uV 70.0-70.5 MHz: 2 uV FM (15 dB SINAD, 12 KHz BW) 28-30 MHz: 0.25 uV 50-54 MHz: 0.2 uV 70.0-70.5 MHz: 0.25 uV SSB/CW (10 dB S+N/N, 2.4 KHz BW) 1.8-30 MHz: 0.16 uV 50-54 MHz: 0.125 uV 70.0-70.5 MHz: 0.16 uV |
||||||||||||||||||||
| Squelch sensitivity: | |||||||||||||||||||||
| Noise figure: | |||||||||||||||||||||
| Selectivity: |
|
||||||||||||||||||||
| Image rejection: | 70 dB (HF) 60 dB (6 m) |
||||||||||||||||||||
| AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm | ||||||||||||||||||||
| External speaker connector: | TS "Minijack" (3.5 mm), 4-16 ohm | ||||||||||||||||||||
| TRANSMITTER SECTION | |||||||||||||||||||||
| RF output power: |
|
||||||||||||||||||||
| Modulation system: | AM: Low-level (Early stage) FM: Variable reactance SSB: Balanced |
||||||||||||||||||||
| Max FM deviation (Factory set): | Normal: ±5 KHz Narrow: ±2.5 KHz |
||||||||||||||||||||
| Spurious emissions: | Better than -50 dB (HF) Better than -63 dB (6 m) |
||||||||||||||||||||
| Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Modular) | ||||||||||||||||||||
| Microphone input level: | ? mV |
