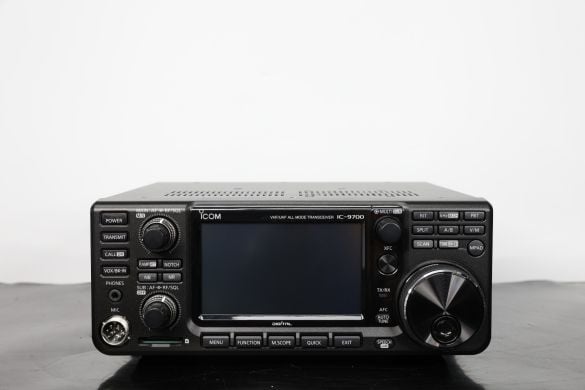

Icom IC-9700 (USED)
SKU Part Number: U21711
The product is in good condition, including DC cable, manual, microphone and box. SPECIFICATIONS GENERAL Type: Amateur VHF/UHF...
Read More
£1,599.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including DC cable, manual, microphone and box.

SPECIFICATIONS

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: Europe
TX/RX: 144-146 / 430-440 / 1240-1300 MHz
USA
TX/RX: 144-148 / 430-450 / 1240-1300 MHz
Korea
TX/RX: 144-146 / 430-440 / 1260-1300 MHz
ITR
TX/RX: 144-146 / 430-434 / 435-438 / 1240-1245 / 1270-1298 MHz
TPE
TX/RX: 144-146 / 430-432 / 1260-1265 MHz
Tuning steps: Down to 1 Hz
Frequency stability: ±0.5 ppm @ -10 to +60°C (14 to 140°F)
Mode: AM / FM / NFM / SSB / CW / RTTY and DV/DD (D-Star)
Channels / memory management: 99 regular per band with alpha tags
3 scan edge pairs per band
2 call per band
2500 repeater
300 GPS
Non-volatile EEPROM storage
Repeater shift / offset: Programmable
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 1.2 to 1.8 A
TX: Max 18 A
Antenna impedance / connector: 50 ohm / One SO-239 and two N-jack
Dimensions (W*H*D): 240*94*238 mm (9.45*3.7*9.37")
Weight: 4.7 Kg (10.4 lb)
Other features: SDR-technology. Spectrum scope & waterfall. CTCSS/PL with tone scan.
4.3" TFT touch screen. Satellite mode. SD-card. CI-V, LAN and USB-connectors.
Voice synthesizer. VOX. Twin RX.


RECEIVER SECTION
Receiver system: Direct sampling (2 m / 70 cm)
Down conversion direct sampling (23 cm)
IF: 311-371 MHz
Sensitivity: AM: 1 uV (10 dB S/N. Filter=Soft. Preamp on)
FM: 0.18 uV (12 dB SINAD. Filter=Soft. Preamp on)
SSB/CW: 0.11 uV (10 dB S/N. Filter=Soft. Preamp on)
DV: 0.35 uV (1% BER. Filter=Soft. Preamp on)
DV: 1.59 uV (5% BER. Filter=Soft. Preamp on)
Squelch sensitivity:
Noise figure: Around 4.2 dB with preamp on
Selectivity: AM (BW=6 KHz)
6 KHz (-3 dB)
15 KHz (-60 dB)
FM (BW=15 KHz)
12 KHz (-6 dB)
20 KHz (-60 dB)
SSB (BW=2.4 KHz)
2.4 KHz (-3 dB)
3.6 KHz (-60 dB)
CW (BW=500 Hz)
500 Hz (-3 dB)
700 Hz (-60 dB)
RTTY (BW=500 Hz)
500 Hz (-3 dB)
700 Hz (-60 dB)
DV (12.5 KHz spacing)
-50 dB
DD (300 KHz spacing)
-40 dB
Image rejection: AM/FM/DV: 60 dB (2 m/70 cm), 50 dB (23 cm)
SSB/CW: 70 dB (2 m/70 cm), 50 dB (23 cm)
DD: 50 dB (23 cm)
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: Two TS "Minijacks" (3.5 mm), 4-8 ohm


TRANSMITTER SECTION
RF output power:
  2 m 70 cm 23 cm
AM: 0.12-25 W 0.12-18 W 0.05-2.5 W
FM/NFM: 0.5-100 W 0.5-75 W 0.1-10 W
SSB (PEP): 0.5-100 W 0.5-75 W 0.1-10 W
CW: 0.5-100 W 0.5-75 W 0.1-10 W
RTTY: 0.5-100 W 0.5-75 W 0.1-10 W
DV/DD: 0.5-100 W 0.5-75 W 0.1-10 W
Modulation system: AM: Digital low power
FM: Digital reactance
SSB: Digital PSN
DV: Digital GMSK
DD: Digital quadrature
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: 2 m: Better than -63 dB
70 cm: Better than -62 dB
23 cm: Better than -53 dB
Microphone impedance / connector: 600 ohm / 8-pin (Male locking ring jack)
Microphone input level: ? mV
