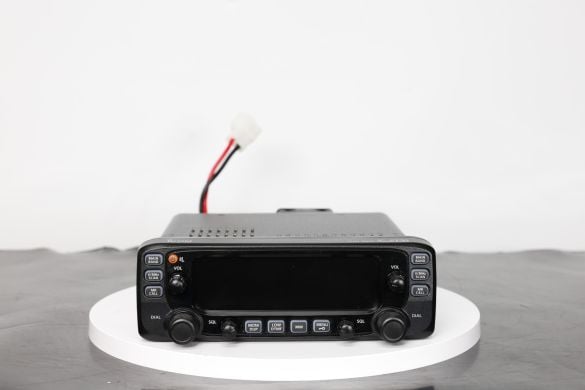

Icom IC-2730 Black Edition (USED)
SKU Part Number: U21939
The product is in good condition, including DC cable, manual, microphone and box. SPECIFICATIONS GENERAL Type: Amateur VHF/UHF...
Read More
£219.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including DC cable, manual, microphone and box.

SPECIFICATIONS

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: USA
TX: 144-148 / 430-450 MHz
RX: 118-174 / 375-550 MHz
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
Frequency stability: ±2.5 ppm @ -10 to +60°C (14 to 140°F)
Mode: TX: FM / NFM
RX: AM / FM / NFM
Channels / memory management: 1000 regular with alpha tags
2 call
25 scan edge pairs
Non-volatile EEPROM storage
Repeater shift / offset: Programmable
Power supply: 13.8 VDC ±15%
Current drain / power consumption: RX: 1.2 to 1.8 A
TX: Max 13 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): Body: 150*40*151 mm (5.91*1.57*5.94")
Controller: 150*50*27 mm (5.91*1.97*1.07")
Weight: Body: 1.2 Kg (2.65 lb)
Controller: 140 g (4.94 oz)
Other features: CTCSS/PL and DTCS. Tone scan. Twin RX (V+V, V+U, U+U).


RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 38.85 MHz (A band), 46.35 MHz (B band)
2nd IF: 450 KHz
Sensitivity: AM (10 dB S/N)
118-137 MHz: 1 uV
FM/NFM (12 dB SINAD)
137-144 MHz: 0.32 uV
144-148 MHz: 0.18 uV
148-160 MHz: 0.32 uV
160-174 MHz: 0.56 uV
375-400 MHz: 0.56 uV
400-430 MHz: 0.32 uV
430-450 MHz: 0.18 uV
450-500 MHz: 0.32 uV
500-550 MHz: 0.56 uV
Squelch sensitivity: Less than 0.13 uV (Threshold)
Noise figure:
Selectivity: FM: 60 dB
NFM: 55 dB
NB! The manual does not specify bandwidth references
Image rejection: A band: 60 dB (VHF), 55 dB (UHF)
B band: 60 dB (VHF), 60 dB (UHF)
AF output power / speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: TS "Minijack" (3.5 mm), 8 ohm


TRANSMITTER SECTION
RF output power:
  High Mid Low
2 m: 50 W 15 W 5 W
70 cm: 50 W 15 W 5 W
Modulation system: Variable reactance frequency modulation
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Better than -60 dBc
Microphone impedance / connector: 600 ohm / 8-pin (Modular)
Microphone input level: ? mV
