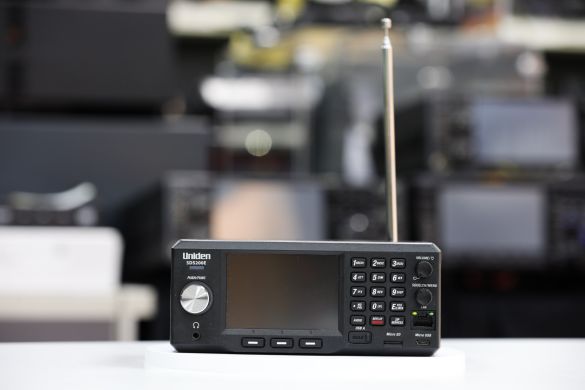

Uniden SDS200E (USED)
SKU Part Number: U21968
The product is in good condition, including antenna and power supply. No box, no manual or...
Read More
£599.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including antenna and power supply. No box, no manual or braket.

SPECIFICATIONS

GENERAL
Type: HF/VHF/UHF receiver/scanner
Frequency range: Europe and Australia
25-512 / 806-960 / 1240-1300 MHz
Tuning steps: 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz
Frequency stability: ? ppm
Mode: Analog
AM / FM / NFM / FMB / WFM
DV/Digital
APCO P25 I/II
DMR / MotoTRBO
dPMR (Europe only)
EDACS ProVoice
NXDN

NB! Some DV modes may require an optional software key in Australia
The European version comes with all keys preinstalled
Channels / memory management: Enhanced dynamic @ more than 60 channels per second
Power supply: 11-16.6 VDC (Male 3-pin jack or male barrel jack, center positive)
Current drain / power consumption: 350-800 mA
Antenna impedance / connector: 50 ohm / BNC
Dimensions (W*H*D): 180*72*160 mm (7.09*2.84*6.3")
Weight: 1.4 Kg (3.09 lb)
Other features: Customizable 3.5" color display. Close call RF capture. CTCSS/PL and DCS.
Backlit keypad. Micro-USB jack. Recording/playback. Trunktracker X: Tracks
DMR Tier III, Hytera XPT, NXDN 4800/9600, Motorola, EDACS, APCO25,
X2-TDMA and LTR. PC programming and control. GPS. Micro-SD card slot
and much more.


RECEIVER SECTION
Receiver system: True I/Q SDR
Sensitivity: AM (Nominal @ 12 dB SINAD)
25.005 MHz: 0.7 uV
118.800 MHz: 0.7 uV
127.175 MHz: 0.7 uV
135.500 MHz: 0.6 uV
225.050 MHz: 0.7 uV
272.950 MHz: 0.7 uV
315.050 MHz: 0.7 uV
325.050 MHz: 0.5 uV
FM (Nominal @ 12 dB SINAD)
72.515 MHz: 0.25 uV
NFM (Nominal @ 12 dB SINAD)
40.840 MHz: 0.35 uV
53.980 MHz: 0.3 uV
138.150 MHz: 0.6 uV
161.985 MHz: 0.35 uV
173.225 MHz: 0.35 uV
216.020 MHz: 0.35 uV
406.875 MHz: 0.35 uV
511.9125 MHz: 0.35 uV
806.100 MHz: 0.45 uV
857.150 MHz: 0.4 uV
954.9125 MHz: 0.5 uV
1299.925 MHz: 1 uV
WFM (Nominal @ 12 dB SINAD)
54.050 MHz: 0.5 uV
197.450 MHz: 0.6 uV
FMB (Nominal @ 12 dB SINAD)
107.500 MHz: 0.8 uV
Close call (Nominal, no modulation)
-57 to -52 dBm (Depending on band)
Squelch sensitivity: AM: 0.3 uV (Nominal threshold)
FM/NFM: 0.2 uV (Nominal threshold)
WFM/FMB: 0.8 uV (Nominal threshold)
Noise figure:
Selectivity:
Image rejection:
AF output power / speaker: 3 W at ?% distortion / 8 ohm
External speaker connector: TS "Minijack" (3.5 mm), 8 ohm
