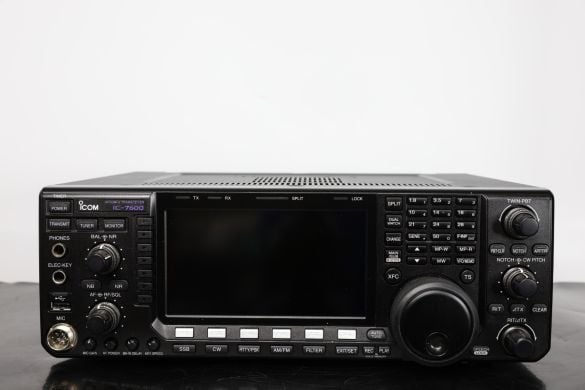

Icom IC-7600 (USED)
SKU Part Number: U22039
The product is in good condition, including DC cable, manual, microphone and box. SPECIFICATIONS GENERAL Type: Amateur HF/VHF...
Read More
£999.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including DC cable, manual, microphone and box.

SPECIFICATIONS

GENERAL
Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC / 6 m
RX: 0.03-60 MHz
Tuning steps: Down to 1 Hz
Frequency stability: ±0.5 ppm @ 0 to 50°C (32 to 122°F)
Mode: AM / FM / SSB / CW / RTTY / PSK
Channels / memory management: 99 regular with 10 character alpha tags
2 scan edge
Non-volatile EEPROM storage
Repeater shift / offset: ±0 to 9.999 MHz in 1 KHz steps
Power supply: 13.8 VDC ±15% + one CR2032 clock battery
Current drain / power consumption: RX: 3 to 3.5 A
TX: Max 23 A
Antenna impedance / connector: 50 ohm / Two SO-239
HF: 16.7-150 ohm with ATU on
6 m: 20-125 ohm with ATU on
Dimensions (W*H*D): 340*116*280 mm (13.39*4.57*11.02")
Weight: 10 Kg (22.06 lb)
Other features: Wide screen color TFT. Auto-ATU. RTTY/PSK31 encoder/decoder. CI-V.
IP3 = +30 dBm. DSP. Spectrum scope. USB-connectors. Transverter port.
Electronic keyer. Spectrum scope. Voice recorder. CTCSS/PL.


RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 64.455 MHz
2nd IF: 36 KHz
Sensitivity: AM (10 dB S/N. BW=6 KHz)
0.1-1.8 MHz: 6.3 uV
1.8-30 MHz: 2 uV
6 m: 1.6 uV
FM (12 dB SINAD. BW=15 KHz)
28-30 MHz: 0.5 uV
6 m: 0.3 uV
SSB/CW (10 dB S/N. BW=2.4 KHz)
1.8-30 MHz: 0.15 uV
6 m: 0.12 uV
Selectivity: AM (BW: 6 KHz)
6 KHz (-6 dB)
15 KHz (-60 dB)
FM (BW: 15 KHz)
12 KHz (-6 dB)
20 KHz (-60 dB)
SSB (BW: 2.4 KHz)
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
CW (BW: 500 Hz)
500 Hz (-6 dB)
900 Hz (-60 dB)
RTTY (BW: 350 Hz)
350 Hz (-6 dB)
650 Hz (-60 dB)
Image rejection: 70 dB
AF output power/speaker: 2 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm


TRANSMITTER SECTION
RF output power:
  Pwr
AM: 1-30 W
FM: 2-100 W
SSB (PEP): 2-100 W
CW/RTTY: 2-100 W
PSK: 2-100 W
Modulation system: AM: Digital low power modulation
FM: Digital phase modulation
SSB: Digital PSN modulation
Max FM deviation (Factory set): ±? KHz
Spurious emissions: HF: Better than -50 dB
6 m: Better than -63 dB
Microphone impedance / connector: 600 ohm / 8-pin (Metal locking ring connector)
Microphone input level: ? mV
