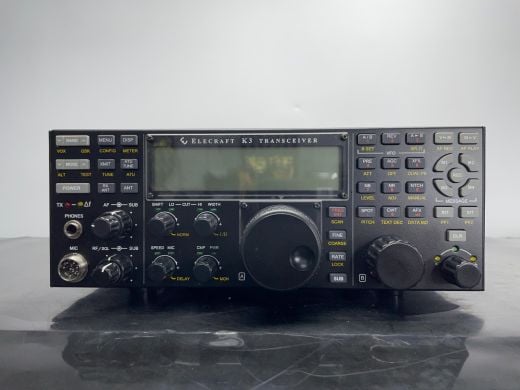

Call 0345 2300 599Elecraft K3 in good condition with hand mic, DC lead, and manual.
The following options are fitted and included:
KPA3 internal 100 watt power amplifier module
K144XV internal 2 metre transverter, 10 watts, with phase-lock option
Internal 100 watt ATU, covering 160 metres to 6 metres
KDVR3 audio recorder and voice keyer
KXV3A transverter IF interface
KIO3 input and output interface
13 kHz crystal filter
2.7 kHz crystal filter
2.1 kHz crystal filter
SPECIFICATIONS
| GENERAL | |||||||||||||||||||||
| Type: | Amateur HF/VHF transceiver | ||||||||||||||||||||
| Frequency range: | TX: 10-160 m + WARC / 6 m RX: 0.49-30 / 44-54 MHz (2 m option) |
||||||||||||||||||||
| Tuning steps: | 1 / 10 / 20 / 50 Hz | ||||||||||||||||||||
| Frequency stability: | Standard: ±5 ppm @ 0 to 50°C (32 to 122°F) | ||||||||||||||||||||
| Mode: | AM / FM / SSB / CW / Data / AFSK | ||||||||||||||||||||
| Channels / memory management: | 100 regular 4 scratch pad per band |
||||||||||||||||||||
| Repeater shift / offset: | ±0 to 5000 KHz | ||||||||||||||||||||
| Power supply: | 11-15 VDC (13.8 VDC nominal) | ||||||||||||||||||||
| Current drain / power consumption: | RX: 900 mA (Single RX) TX: Max 22 A |
||||||||||||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||||||||||||||
| Dimensions (W*H*D): | 272*102*254 mm (10.7*4*10") | ||||||||||||||||||||
| Weight: | 3.8 Kg (8.5 lb), without options | ||||||||||||||||||||
| Other features: | RS-232C. Built-in PSK31/CW/RTTY decoder/encoder. Built-in keyer. Realtime clock. Transverter interface. 1750 Hz call tone. Two IF DSP. CTCSS/PL encoder. Graphic equalizer. VOX. DVR option. Sub RX option. |
||||||||||||||||||||
| RECEIVER SECTION | |||||||||||||||||||||
| Receiver system: | Double conversion superheterodyne 1st IF: 8.2 MHz 2nd IF: ? KHz |
||||||||||||||||||||
| Sensitivity: | HF: -136 to -138 dBm (MDS) 6 m: -143 to -144 dBm (MDS, with PR6 option) (Specifications guaranteed only within ham bands) |
||||||||||||||||||||
| Selectivity: | |||||||||||||||||||||
| Image rejection: | 70 dB | ||||||||||||||||||||
| AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm | ||||||||||||||||||||
| External speaker connector: | 3.5 mm | ||||||||||||||||||||
| TRANSMITTER SECTION | |||||||||||||||||||||
| RF output power: |
* With 2 m option |
||||||||||||||||||||
| Modulation system: | |||||||||||||||||||||
| Max FM deviation (Factory set): | ±5 KHz | ||||||||||||||||||||
| Spurious emissions: | HF: Better than -50 dB 6 m: Better than -60 dB |
