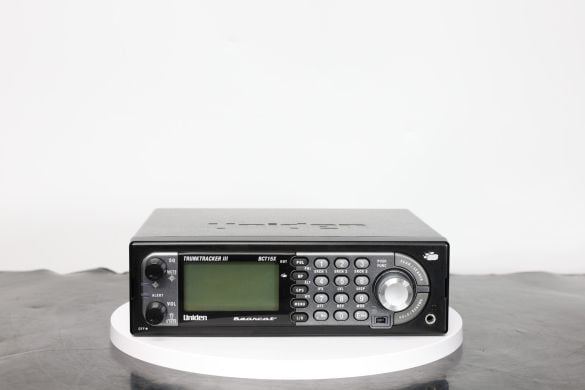

Call 0345 2300 599The product is in good condition, including the DC cable, PSU, USB programming cable, telescopic antenna, bracket and box.
SPECIFICATIONS
| GENERAL | |
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: | 25-512 / 758-824 / 849-869 / 894-960 / 1240-1300 MHz (Cellular blocked in the US) |
| Tuning steps: | ? KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM |
| Channels / memory management: | 9000 dynamically allocated |
| Power supply: | 11-16.6 VDC |
| Current drain / power consumption: | Less than 500 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 184*56*154 mm (7.24*2.2*6.06") |
| Weight: | 1.6 Kg (3.53 lb) |
| Other features: | Beartracker warning system. "Close call" RF capture technology. RS-232C. Tracks Motorola type I, II. EDACS, SCAT and LTR systems. CTCSS/DCS. Repeater reverse. S.A.M.E Weather alert. FIPS code. GPS-enabled for location-related scanning. When a GPS-unit is connected, it can also alert at areas of special interest, such as dangerous intersections, school zones or general points of interest (fixed speeding cameras anyone?). Band scope. Individual channel volume offset. |
| RECEIVER SECTION | |
| Receiver system: | Triple conversion superheterodyne 1st IF: 380/265 MHz 2nd IF: 10.8 MHz 3rd IF: 450 KHz |
| Sensitivity: | AM (No reference) 25-28 MHz: 0.4 uV 108-137 MHz: 0.3 uV 225-380 MHz: 0.3 uV FM (No reference) 28-54 MHz: 0.3 uV 72-76 MHz: 0.2 uV 137-174 MHz: 0.3 uV 216-225 MHz: 0.3 uV 380-512 MHz: 0.3 uV 758-960 MHz: 0.3 uV 1240-1300 MHz: 0.4 uV WFM (No reference) 54-72 MHz: 0.6 uV 76-108 MHz: 0.5 uV 174-216 MHz: 0.5 uV |
