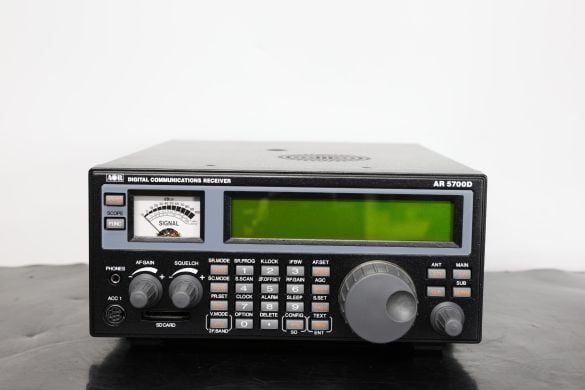

AOR AR-5700d with the latest firmware (March 2026) (USED)
SKU Part Number: U22259
The product is in good condition and includes the manual, AC cable, power supply, and box.  Latest firmware (March...
Read More
£2,899.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition and includes the manual, AC cable, power supply, and box.  Latest firmware (March 2026)

SPECIFICATIONS

GENERAL
Type: HF/VHF/UHF/SHF receiver
Frequency range: 0.009-3700 MHz
Tuning steps: 1 Hz to 999.999 KHz selectable
Frequency stability: ±0.1 ppm @ 0 to 50°C (32 to 122°F), after 5 minutes warmup
±0.01 ppm with optional GPS antenna
Mode: Analog:
AM / AM-synchro / FM / NFM / WFM / SSB / CW and analog TV

DV modes:
Alinco GMSK AMBE
Apco P25 C4FM IMBE
D-Star GMSK AMBE
DCR/NXDN C4FM AMBE+2
DMR/MotoTRBO C4FM AMBE+2
dPMR C4FM AMBE+2
Yaesu C4FM AMBE+2
Tetra DMO (T-DM) and TMO (T-TC)
(Tetra GSSI filtering with later firmware)
Channels/memory management: 2000 regular in 40 banks @ 100 ch/second (analog)
1 priority
1230 pass
40 search banks
Power supply: 10.7-16 VDC
Current drain / power consumption: 0.2-1.8 A
Antenna impedance / connector: 50 ohm / Two N-jacks
Dimensions (W*H*D): 220*97*304 mm (8.66*3.82*11.97")
Weight: 5 Kg (11.02 lb)
Other features: CTCSS/PL & DCS squelch. DTMF decoder. Digimode autodetect. Dual receive.
Audio recording on SD-card. Computer control. DSP. I/Q output. IF output.
10 MHz reference input. USB jack.


RECEIVER SECTION
Receiver system: Direct conversion (0.009-25 MHz)
Double conversion superheterodyne (25-3700 MHz)
1st IF: 321.95 / 412.05 MHz
2nd IF: 45.05 MHz
Sensitivity: AM 6 KHz (10 dB S/N)
40-50 KHz: 15 uV
50-60 KHz: 10
60-80 KHz: 7
80-100 KHz: 4
0.1-25 MHz: 2 uV
25-2750 MHz: 1 uV
2750-3700 MHz: 1.7 uV
NFM 15 KHz (12 dB SINAD)
25-2750 MHz: 0.4 uV
2750-3700 MHz: 0.6 uV
WFM 200 KHz (12 dB SINAD)
25-2750 MHz: 1.5 uV
2750-3700 MHz: 3.5 uV
SSB 3 KHz (10 dB S/N)
40-50 KHz: 6 uV
50-60 KHz: 4
60-80 KHz: 3
80-100 KHz: 1.5
0.1-25 MHz: 0.7 uV
25-2750 MHz: 0.5 uV
2750-3700 MHz: 0.7 uV
Selectivity: IF filter bandwidths:
200 / 500 Hz
1 / 3 / 6 / 15 / 30 / 100 / 200 KHz

AM 6 KHz: 5.5 KHz (-3 dB)
NFM 15 KHz: 14.2 KHz (-3 dB)
WFM 200 KHz: 200 KHz (-3 dB)
SSB 3 KHz: 2.7 KHz (-3 dB)
CW 500 Hz: 380 Hz (-3 dB)
Image rejection:
AF output power / speaker: 1.5 W at ?% distortion / 8 ohm
External speaker connector: 3.5 mm, 8 ohm
